11 Expansion Unit
11 - 8
GX-series EtherCAT Slave Unit User’s Manual
 Terminal arrangement diagram

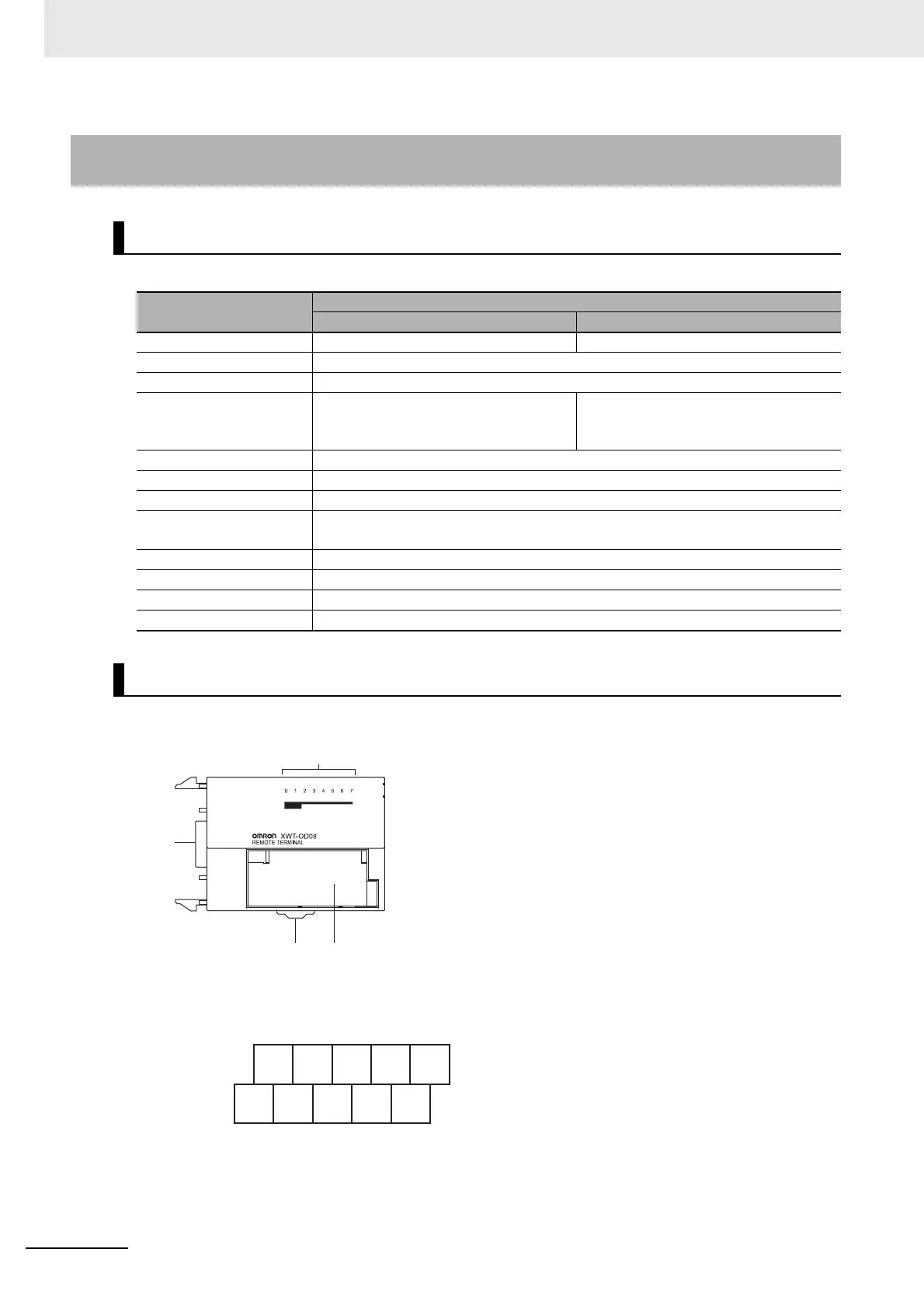

11-2-2 8-point Output Expansion Unit
XWT-OD08/OD08-1
Specification
Item
Specification
XWT-OD08 XWT-OD08-1
Internal I/O common NPN PNP
I/O capacity 8 outputs
Rated output current 0.5 A/output, 2.0 A/common
Residual voltage
1.2 V max.
(0.5 ADC, between each output terminal
and the G terminal)
1.2 V max.
(0.5 ADC, between each output terminal
and the V terminal)
Leakage current 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per
common
8 inputs/common
Isolation method Photocoupler isolation
Output indicators LED display (yellow)
Error Mode Output Select either hold or clear.
Weight 80g max.
Names and functions
(1)
(2)
(3)
(4)
0UT
6 to 10
1 to 5
V13 57
G0 2 4 6
