6 Basic Specifications of Slave Units
GX-series EtherCAT Slave Unit User’s Manual
6-3 Specifications of Common Areas
6

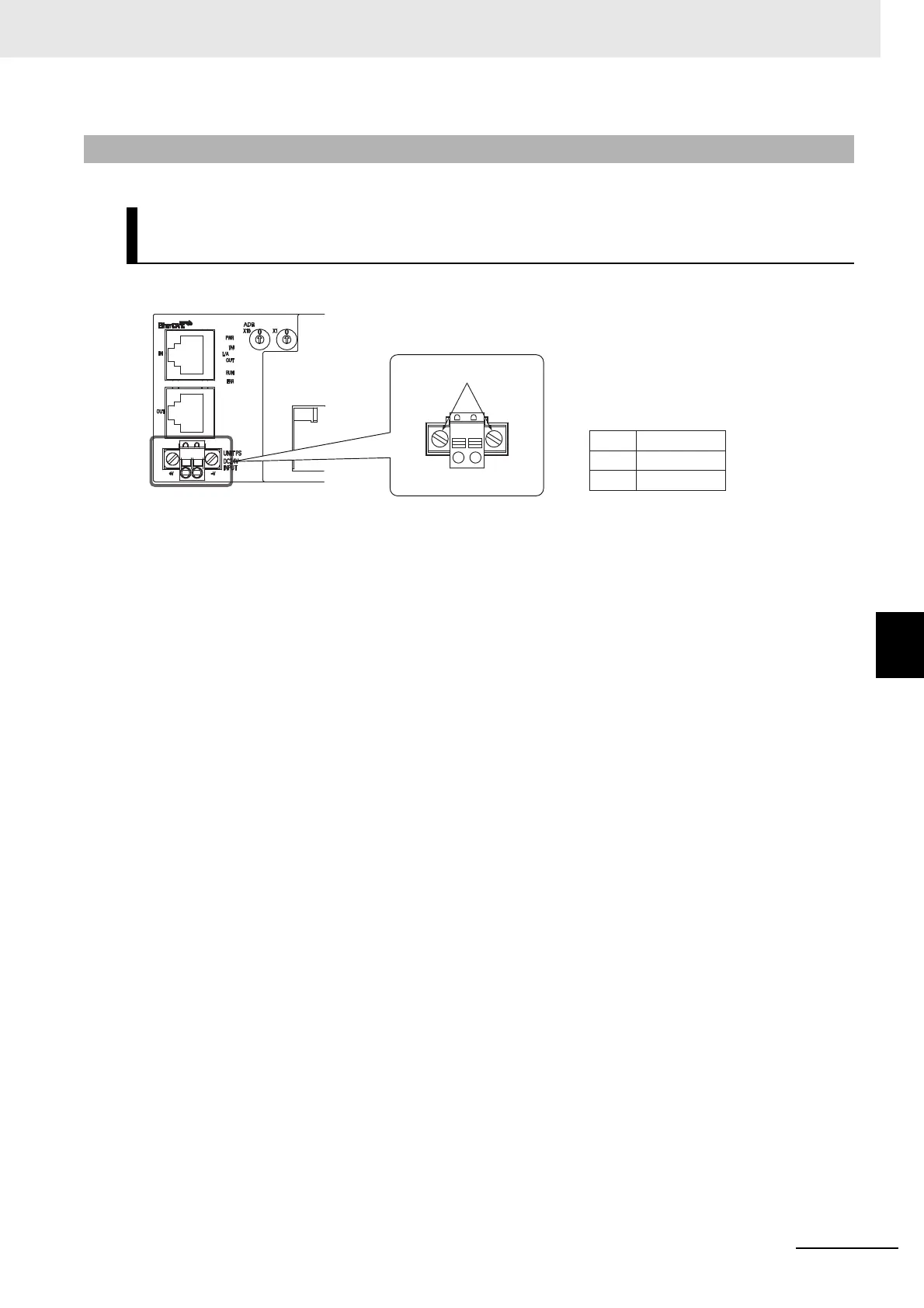

6-3-4 Unit Power Supply Connector
The Connector is used to connect the unit power supply (24 VDC).
• Connector type: Spring connection connector with fixing screw (2-pin)
• Supported pin terminal diameter: 0.25 mm
2
to 0.5 mm
2
/AWG24 to AWG20
(Pin terminal with isolation sleeve used)
For types of recommended pin terminals, refer to "4-3-3 Connecting the Unit Power Supply" in page 4 -
9.
6-3-4 Unit Power Supply Connector
Digital I/O Slave Units, Analog I/O Slave Units, and Encoder Input
Slave Units
Name
+V
−V
24 VDC
0 VDC
Fixing screw
+V
terminal
−V
terminal
Specification
