11 - 5
11 Expansion Unit
GX-series EtherCAT Slave Unit User’s Manual

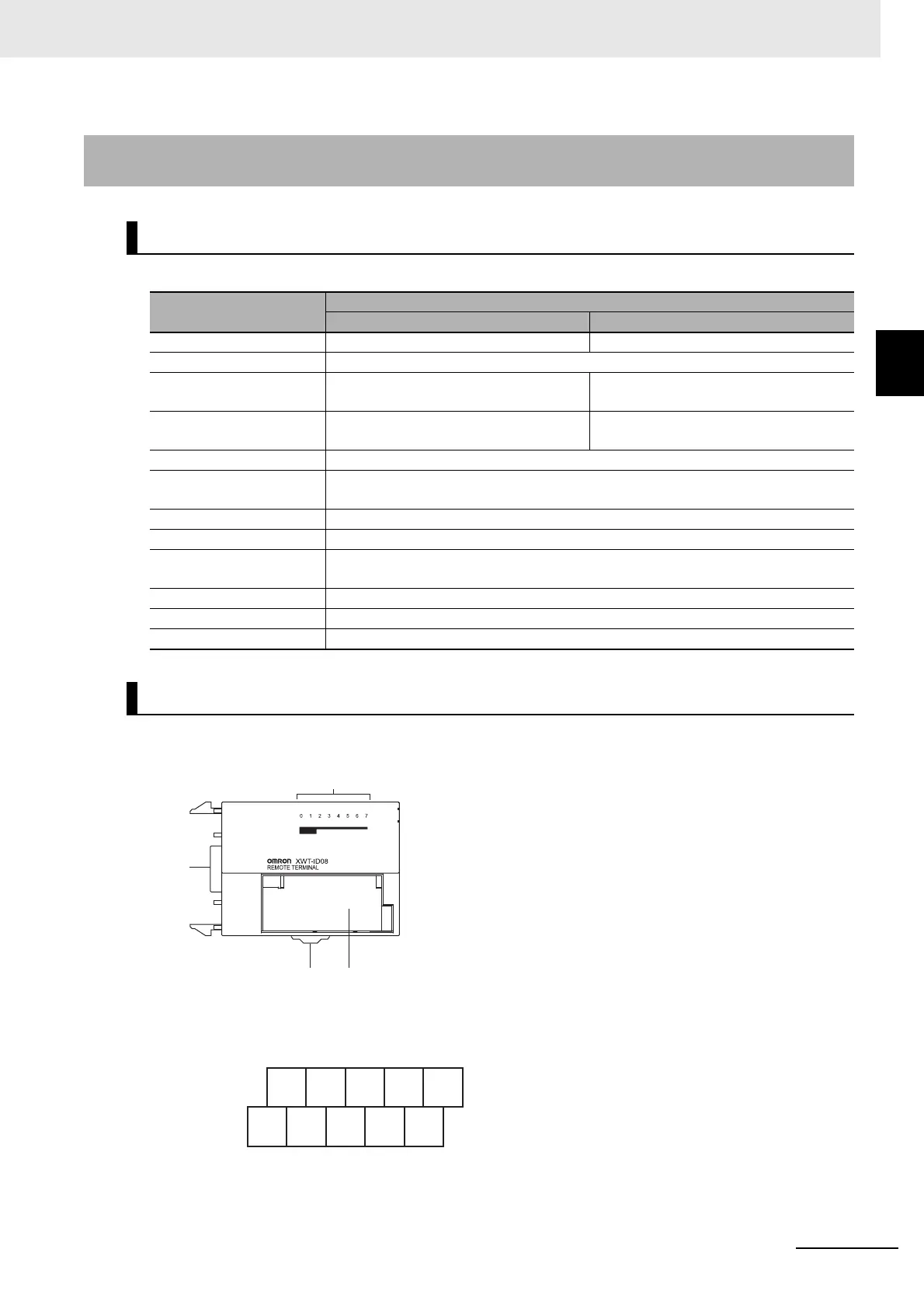

11-2 Specifications of Expansion Unit
11
11-2-1 8-point Input Expansion Unit XWT-ID08/ID08-1
 Terminal arrangement diagram
11-2-1 8-point Input Expansion Unit
XWT-ID08/ID08-1
Specification
Item
Specification
XWT-ID08 XWT-ID08-1
Internal I/O common NPN PNP
I/O capacity 8 inputs
ON voltage
15 VDC min. (between each input
terminal and the V terminal)
15 VDC min. (between each input
terminal and the G terminal)
OFF voltage
5 VDC max. (between each input
terminal and the V terminal)
5 VDC max. (between each input
terminal and the G terminal)
OFF current 1.0 mA max.
Input current
6.0 mA max./input (at 24-VDC)
3.0 mA max./input (at 17-VDC)
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per
common
8 inputs/common
Isolation method Photocoupler isolation
Input indicators LED display (yellow)
Weight 80g max.
Names and functions
IN
(1)
(2)
(3)
(4)
6 to 10
1 to 5
V13 57
G0 2 4 6
