Confirmations upon Delivery
îš‹ Checks
Check the following items as soon as the Inverter is delivered.
Additionally check that following parts are delivered in the package with the IP54 inverter:
If any irregularities in the above items are found, contact the agency from which the Inverter was purchased or
your Omron Yaskawa Motion Control representative immediately.
îš‹ Nameplate Information
There is a nameplate attached to the side of each Inverter. The nameplate shows the model number, specifica-
tions, lot number, serial number, and other information on the Inverter.
îš„ Example Nameplate
The following nameplate is an example for a standard European Inverter: 3-phase, 400 VAC, 0.55 kW,
NEMA 1 / IP20 standards

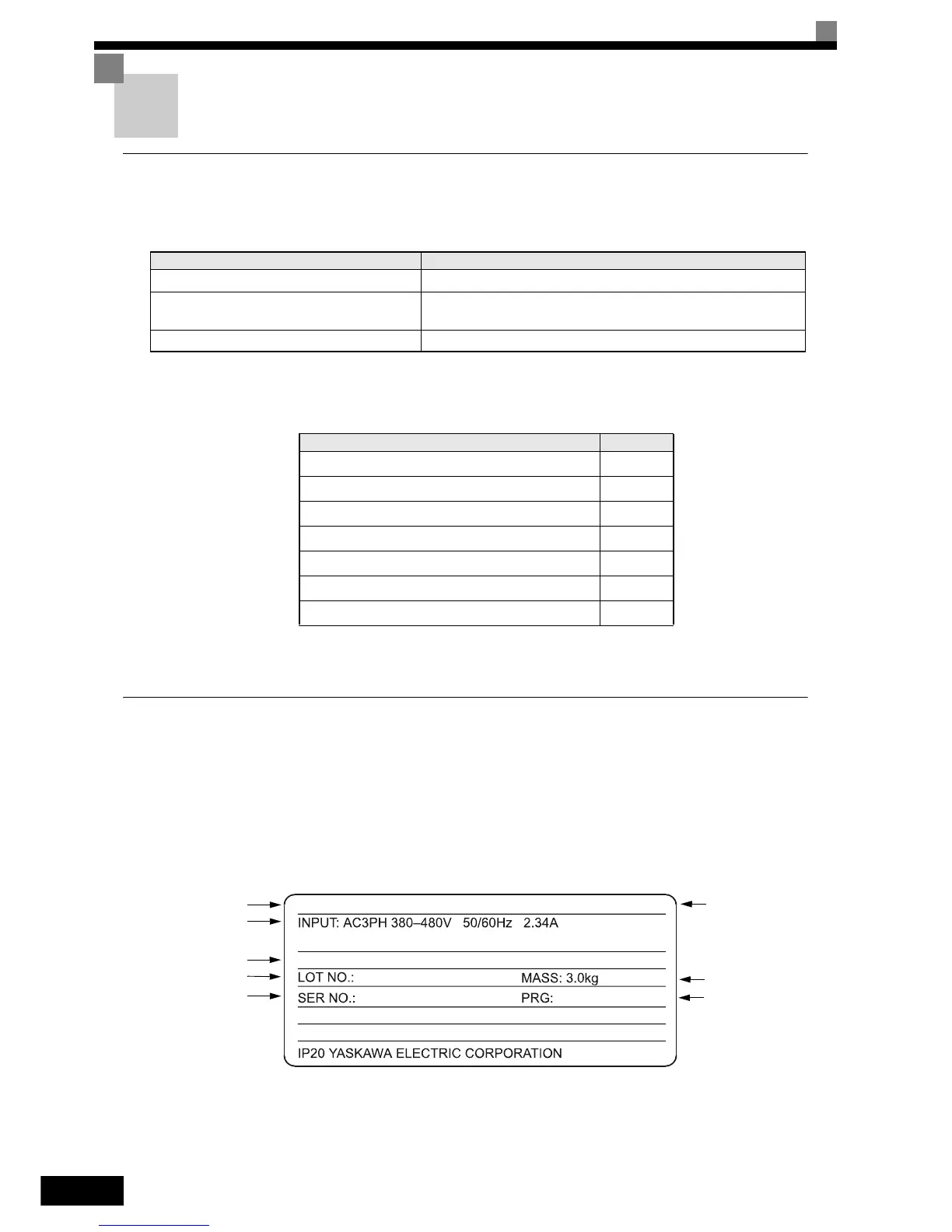

Fig 1.1 Nameplate Example
Table 1.2 Checks upon delivery
Item Method
Has the correct Inverter model been delivered? Check the model number on the nameplate on the side of the Inverter.
Is the Inverter damaged in any way?
Inspect the entire exterior of the Inverter to see if there are any
scratches or other damage resulting from shipping.
Are any screws or other components loose? Use a screwdriver or other tools to check for tightness.
Table 1.3 Additional Deliveries with IP54 Inverters
Part Name Qty.
Cable Gland (for Input) 1
Cable Gland (for Motor Output) 1
Cable Gland (for Control) 1
Cable Gland (for Fieldbus) 1
Door Key 1
Blind Plug (Control Cable Entry) 1
Blind Plug (Fieldbus Cable Entry) 1
OUTPUT: AC3PH 0-480V 0-200Hz 1.8A 1.4kVA
MODEL: CIMR-E7Z40P4
SPEC: 40P41A
Inverter model
Input specifications
Output specifications
Lot number
Serial number
Inverter
specifications
Mass
Software Number
