Verify Mode
Verify mode is used to display any parameters that have been changed from their default settings, either by
programming or autotuning. If no parameter setting has been changed the display will show “NONE” with the
LED operator or “None Modified” with the LCD operator.
In Verify Mode the same procedures as in the programming modes can be used to change parameter settings.
Example Operations with LED Digital Operator

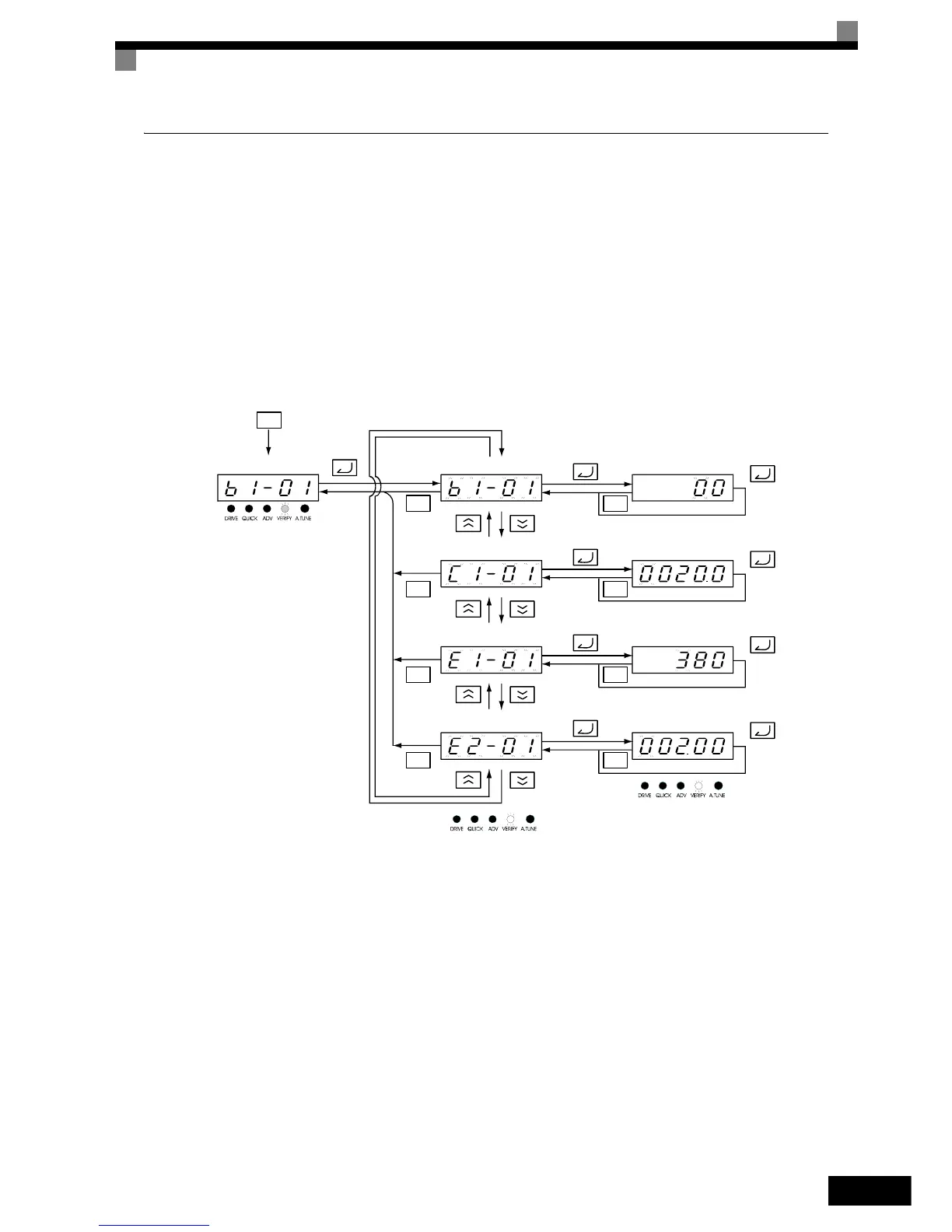

Fig 3.12 shows an example of operations in the Verify Mode. In that example following parameters have been
changed from their default settings: Reference Selection (b1-01), Acceleration Time 1 (c1-01), Input Voltage
Setting (E1-01) and Motor Rated Current (E2-01).
Fig 3.12 Operations in Verify Mode with LED Digital Operator
ESC
MENU
ESC
ESC ESC
ESC ESC
ESC ESC
Setting DisplayMode Selection Display
Monitor Display
Frequency Reference Selection
Acceleration Time 1
Input Voltage Setting
Motor Rated Current
Frequency Reference Selection
Acceleration Time 1
Input Voltage Setting
Motor Rated Current
Verify Mode
To Next Page
