1-18
Removing/Attaching the Digital Operator and
Front Cover
The digital operator can only be removed on Inverters in protection class IP00 and NEMA 1 / IP20
îš‹ Inverters of 18.5 kW or Less
To attach optional cards or change the terminal board, remove the Digital Operator and front cover in addition
to the terminal cover. Always remove the Digital Operator from the front cover before removing the front
cover itself.
The removal and attachment procedures are described below.
îš„ Removing the Digital Operator
Press the lever on the side of the Digital Operator in the direction of arrow 1 to unlock the Digital Operator
and lift the Digital Operator in the direction of arrow 2 to remove the Digital Operator as shown in the follow-
ing illustration.

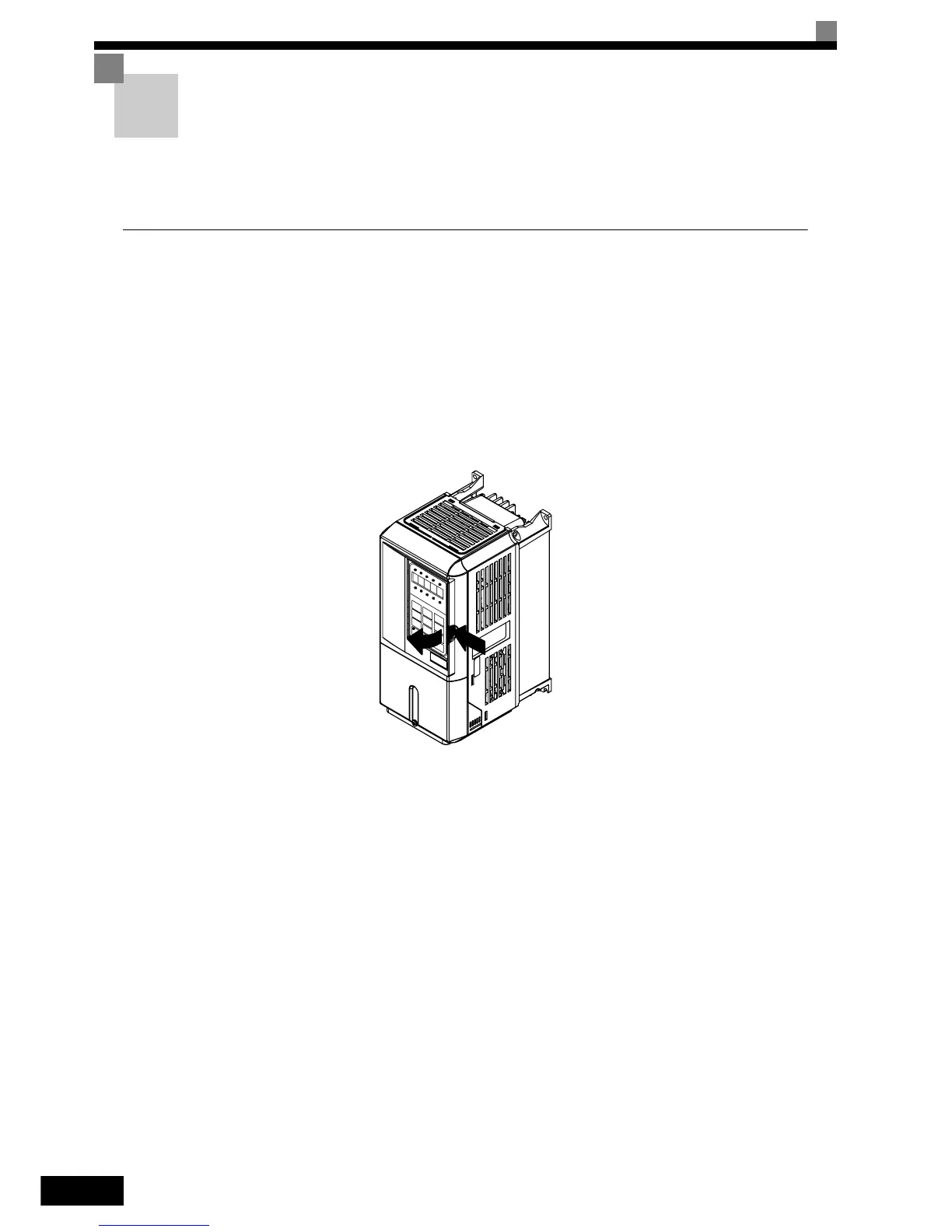

Fig 1.16 Removing the Digital Operator (Model CIMR-E7Z45P5 Shown Above)
1
2
To Next Page
