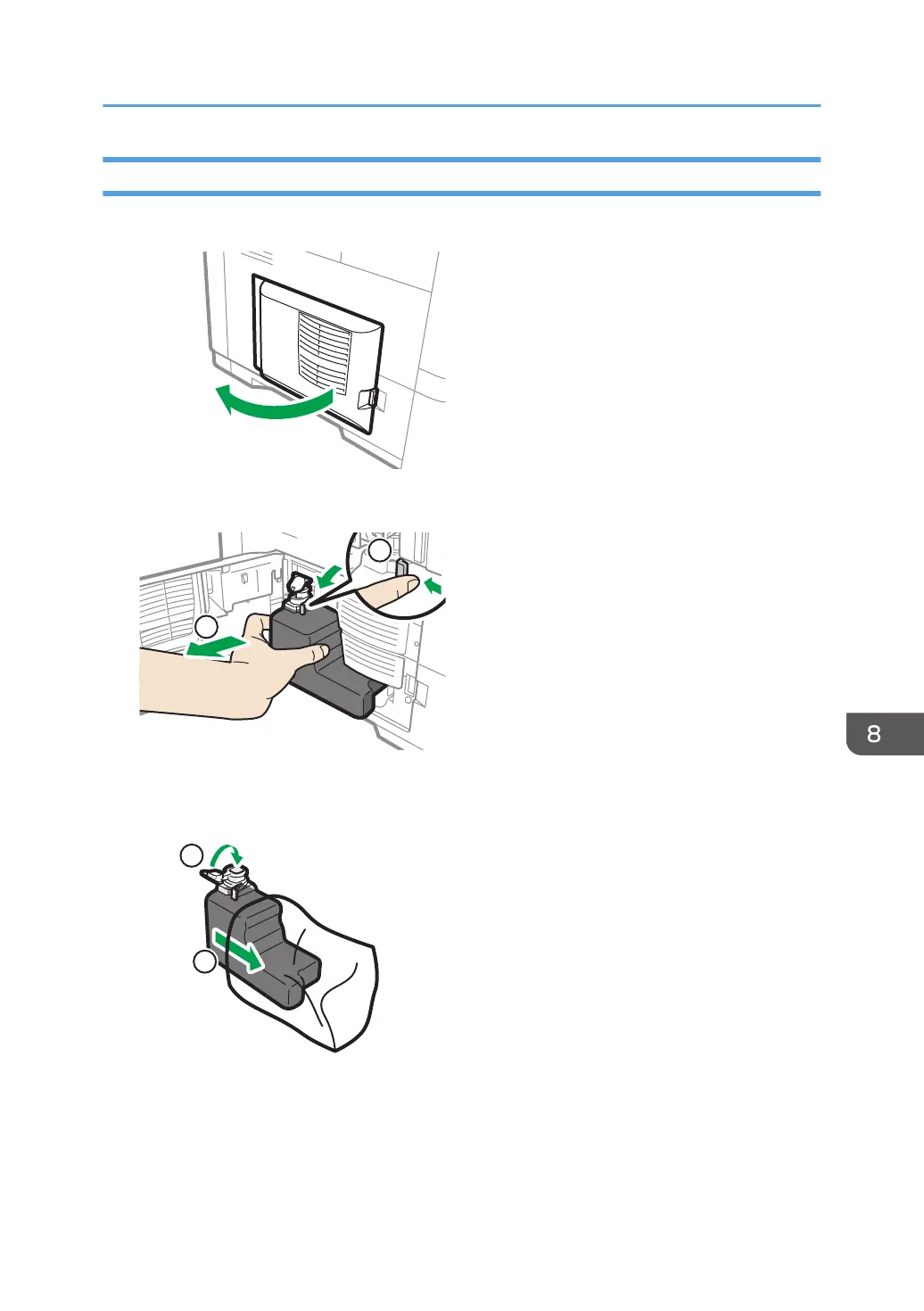

How to Replace the Waste Toner Bottle
1.
Open the left cover.
EA
T053
2.
Remove the waste toner bottle from the machine.
EA
T129
1
2
3.
Close the bottle cap and put the full waste toner bottle in a plastic bag and seal it so that
the toner does not spill out.
EA
T130
1
2
Replacing the Waste Toner Bottle
211
212
214
