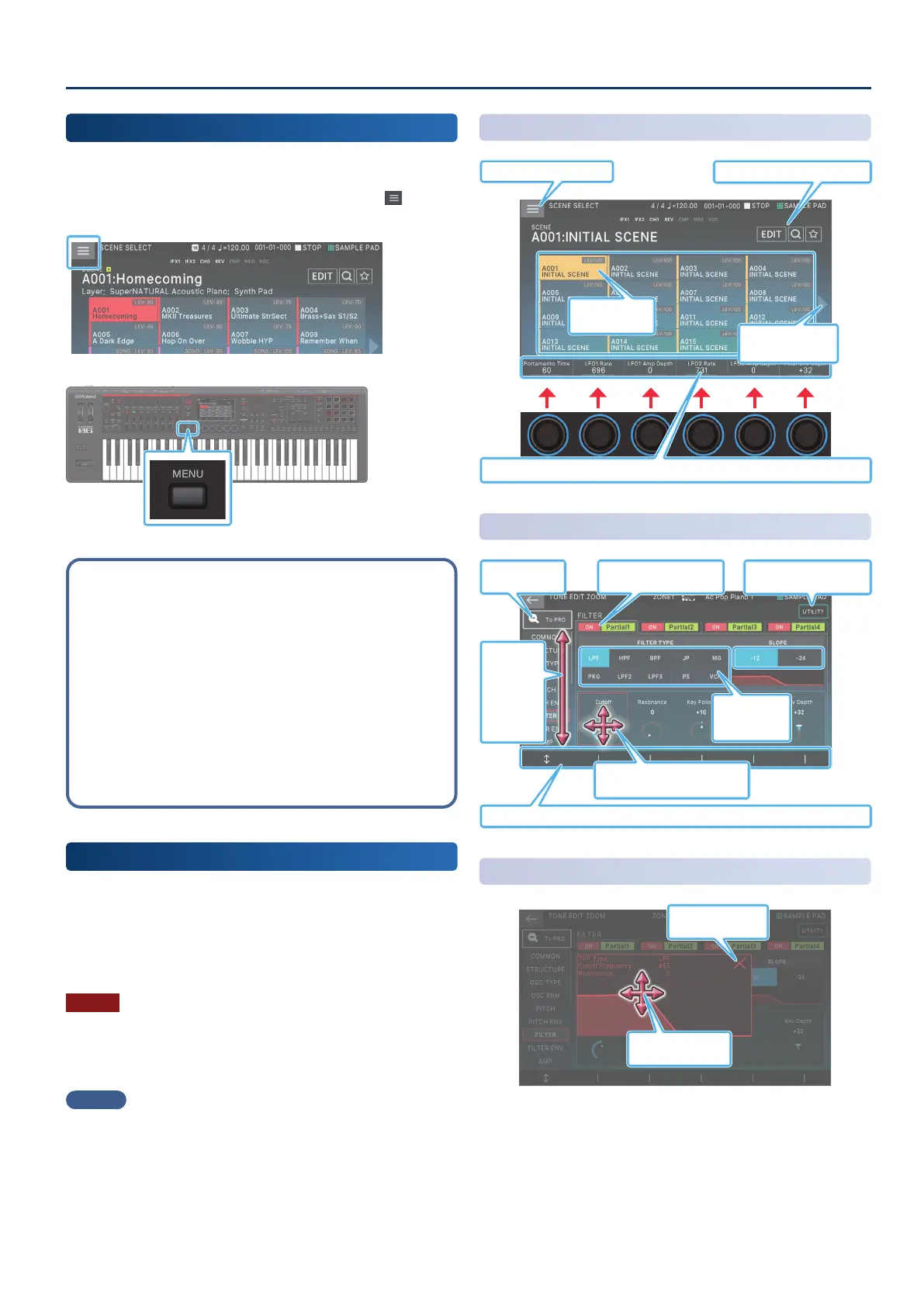

Roland FANTOM-08 Reference Manual

Basic Operation
1515
[MENU] Button
Allows you to make detailed settings for a function, or system
settings.
You can also access the menu screen by touching the <
> icon
located in the upper left of the SCENE SELECT screen.
Operating procedures in this manual
On this unit, operations such as “editing a value”, “moving the
cursor”, “setting/cancelling a value”, or “moving to a screen”
can be performed on multiple ways, as explained earlier. (For
example, “button operations”, “touch panel operations”, “dial
operations”, etc.)
To prevent the explanations from becoming cluttered,
subsequent explanations in this document use a simplied
form such as “move the cursor to __ and edit the value” or
“choose __”, rather than describing all of the possible methods
for doing so. For actual operation, you can use your preferred
method of the various multiple methods described above.
Operations in the Display
This unit’s display is a touch panel; you can perform various
operations by directly touching the display. There are many screens,
but here we explain the typical screen operations.
Text enclosed in square brackets [ ] indicates a button or knob on
the panel. Text enclosed in angle brackets < > indicates a button,
knob in the display.
NOTE
A light touch with your nger is sucient to operate the touch
panel. The touch panel might be damaged if you press it strongly,
or if you press it with a hard object. Do not use excessive force, and
use only your nger to operate it.
MEMO
If you lose track of which screen you’re in, you can return to the
SCENE SELECT screen by pressing the [EXIT] button several times or
by pressing the [SCENE SELECT] button.
SCENE SELECT Screen
Touch to select a
scene.
Switches to the next
(previous) page.
This shows information about the parameters that you can control using knobs [E1]–[E6].
Opens a menu.
Touch to move between screens.
TONE EDIT Screen 1
Switches to the
PRO EDIT screen.
Touch to show the UTILITY
window.
Touch to turn a switch on/o
or to select.
Touch to select a
parameter.
This shows information about the parameters that you can control using knobs [E1]–[E6].
Touch to
switch
between
tabs. Swipe
to scroll.
Touch to move the cursor.
Drag to edit a value.
TONE EDIT Screen 2
Touch to close a
window.
Drag to edit a value.

Roland FANTOM-08 Specifications

General

Bit rate	24 bit
Pitch wheel	Yes
Product type	Digital synthesizer
Product color	Black
Sound effects	Chorus, Reverberation
Sound effects quantity	16
Chorus effects quantity	9
Keyboard number of keys	88
Preset programs quantity	10
Maximum polyphony (notes)	8
Reverberation effects quantity	7
6.35 mm (1⁄4-inch) input	1
Display type	LCD
Power source type	AC

Weight and Dimensions

Depth	354 mm
Width	1393 mm
Height	138 mm
Weight	14800 g
