Siemens 353 User Manual

Function Blocks UM353-1B
April 2012
3-38

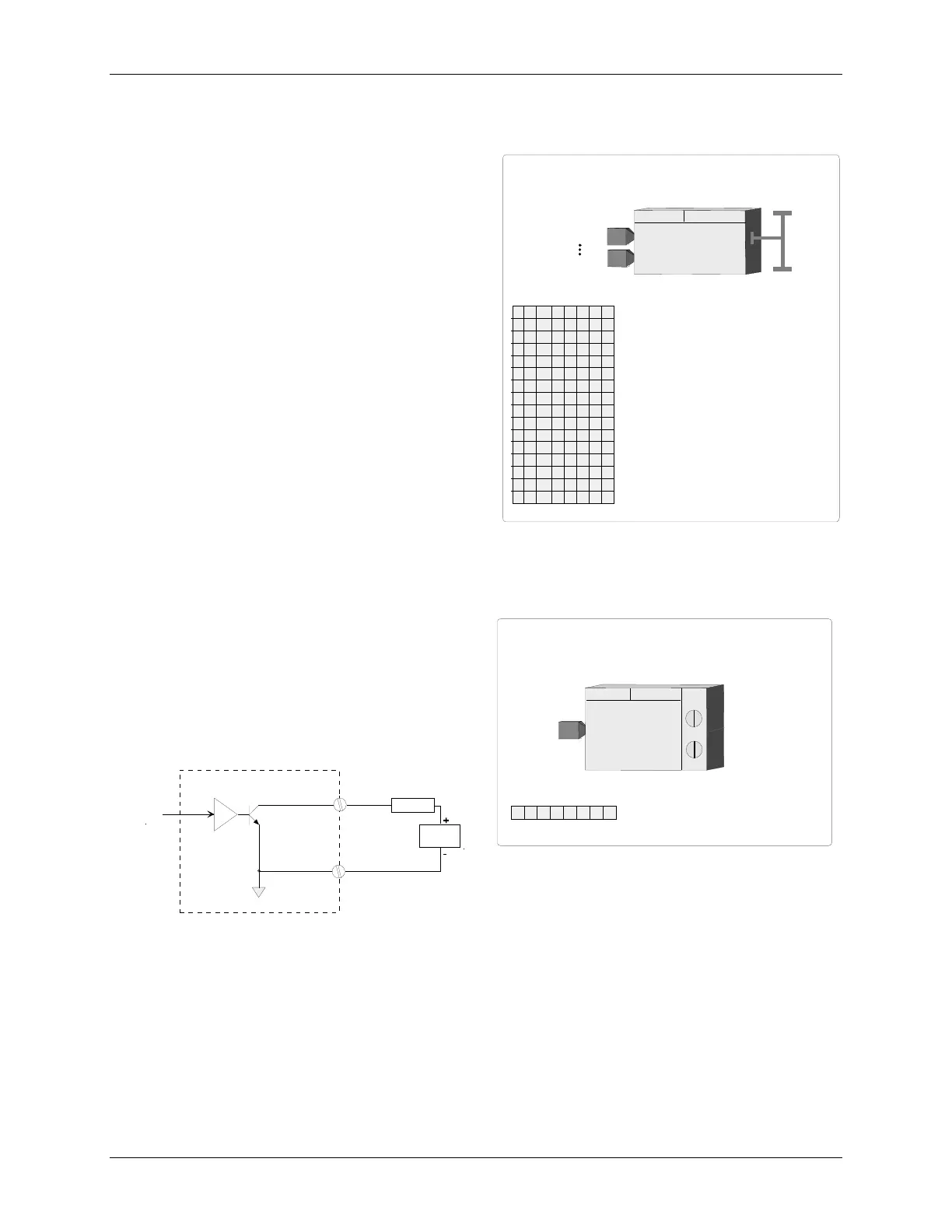

3.2.32 DOE_ - Digital Output - Ethernet
DOE_ function blocks are assigned in sequence with each
use, station wide. Up to 32 blocks are available.
Up to 16 digital inputs can be configured. The block will
pack inputs I0 - IF into a single integer word which can be
accessed from another controller having Ethernet
communication capability.
Each DOE block is automatically assigned Modbus
registers that can be accessed from any device having
Modbus/TCP Ethernet capability. See the DIE function
block (Section 3.2.27) for a listing of these registers.
3.2.33 DOUT_ - Digital Outputs
DOUT_ function blocks are used to turn on remote
devices powered from an external source. The negative
terminal of the external power source must be connected to
station common. The transistor switch will turn on when
the block input S is high (1) and will turn off when low
(0). Two digital output function blocks are available on the
Controller Board.
Terminal Connections:
DOUT1 ----- DOUT1+ (8) -- DOUT1c (9)
DOUT2 ----- DOUT2+ (10) -- DOUT2c (9)
DOUT_+
DOUT_c
DIGITAL OUTPUT _
DIGITAL OUTPUT
DOUT_
S
witch
I
N
P
U
T
S
INPUT S
(H)
......
loop tag.block tag.output (null)
Open Collector
Transistor Switch
S
BLOCK DIAGRAM
S
RELAY
24 V dc
Typical External
Relay Circuit
D/A
DOUT_+
DOUT_c
IF
I0
DIGITAL OUTPUT - ETHERNET
DIGITAL OUTPUT
DOE_
Input F
INPUT 0
INPUT 0
(H)
............... loop tag.block tag.output
(null)
Input 0
ETHERNET
INPUT 1
INPUT 2
IN
PUT
3
IN
PUT
4
IN
PUT
5
IN
PUT
6
IN
PUT
7
IN
PUT
8
IN
PUT
9
I
NPUT
A
INPUT
B
INPUT
C
INPUT
D
INPUT
E
INPUT
F
INPUT 1
(H)
............... loop tag.block tag.output
(null)
INPUT 2
(H)
............... loop tag.block tag.output
(null)
INPUT 3
(H)
............... loop tag.block tag.output
(null)
INPUT 4
(H)
............... loop tag.block tag.output
(null)
INPUT 5
(H)
............... loop tag.block tag.output
(null)
INPUT 6
(H)
............... loop tag.block tag.output
(null)
INPUT 7
(H)
............... loop tag.block tag.output
(null)
INPUT 8
(H)
............... loop tag.block tag.output
(null)
INPUT 9
(H)
............... loop tag.block tag.output
(null)
INPUT A
(H)
............... loop tag.block tag.output
(null)
INPUT B
(H)
............... loop tag.block tag.output
(null)
INPUT C
(H)
............... loop tag.block tag.output
(null)
INPUT D
(H)
............... loop tag.block tag.output
(null)
INPUT E
(H)
............... loop tag.block tag.output
(null)
INPUT F
(H)
............... loop tag.block tag.output
(null)
(Rev. 2)
Ethernet Network
