Commissioning (software)
6.4 Configuring a CX32-2
SIMOTION D4x5-2
196 Commissioning and Hardware Installation Manual, 02/2012
6.4.3 Preparing for configuration
Preparing for configuration
The following measures are required to enable online or offline configuration of a CX32-2.
1. Create a project and insert a SIMOTION D4x5-2 (in this example, D455-2).
2. In the project navigator, double-click the D4x5-2. The HW Config appears.
3. In the hardware catalog, open the "PROFIBUS DP" entry and select "SINAMICS".
4. Drag a CX32-2 to the PROFIBUS Integrated master system of the SIMOTION D module.
The mouse pointer permits the CX32-2 to be inserted on the master system only. The
"DP Slave Properties" screen form is displayed with the PROFIBUS address. The
PROFIBUS address is assigned automatically. See the table below.
Select the relevant DRIVE-CLiQ port by selecting the relevant PROFIBUS address (in
this example, PROFIBUS address 15).

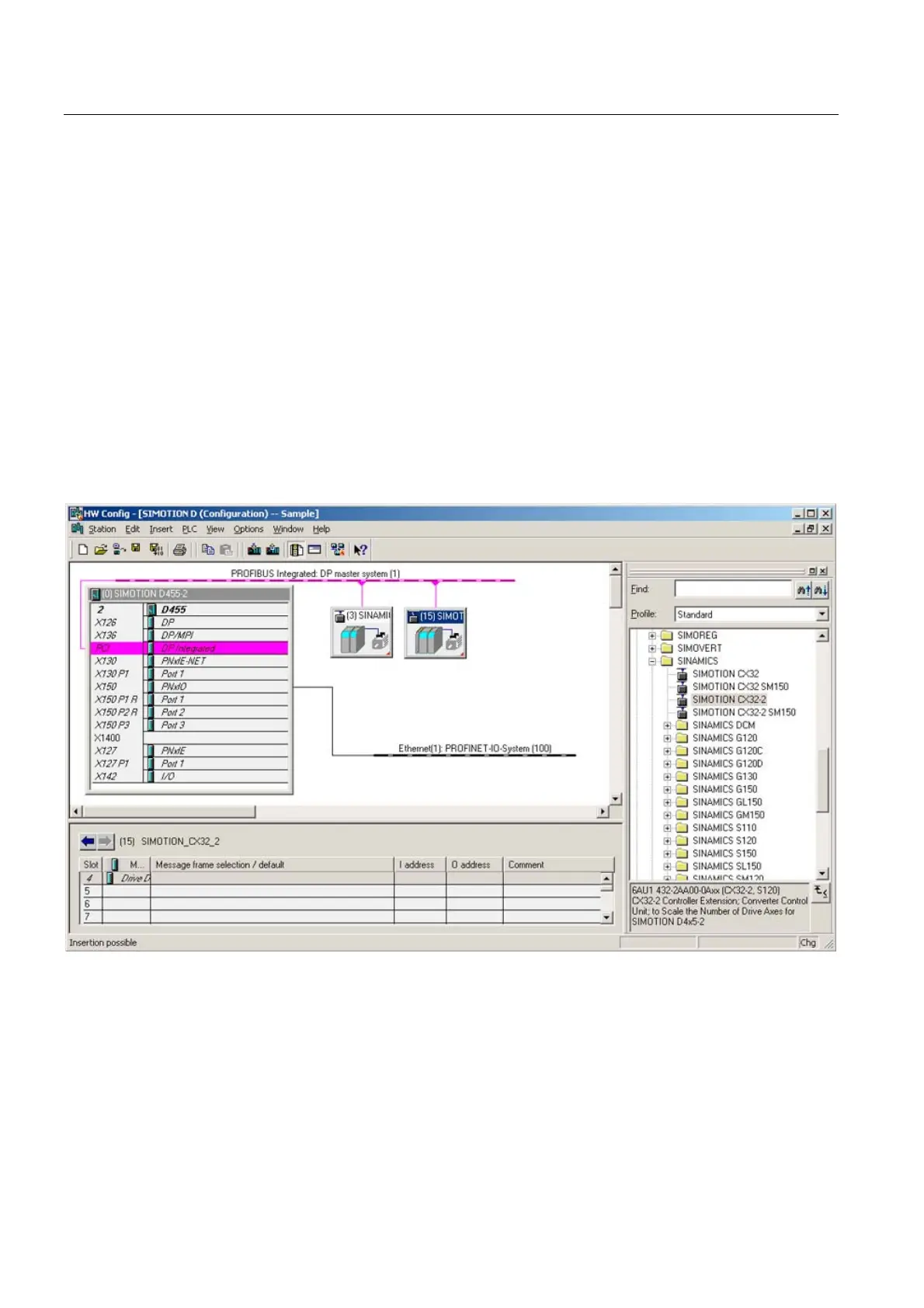

Figure 6-27 Inserting the CX32-2 in HW Config
