Installing
2.3 Installing supplementary system components
SIMOTION D4x5-2
40 Commissioning and Hardware Installation Manual, 02/2012

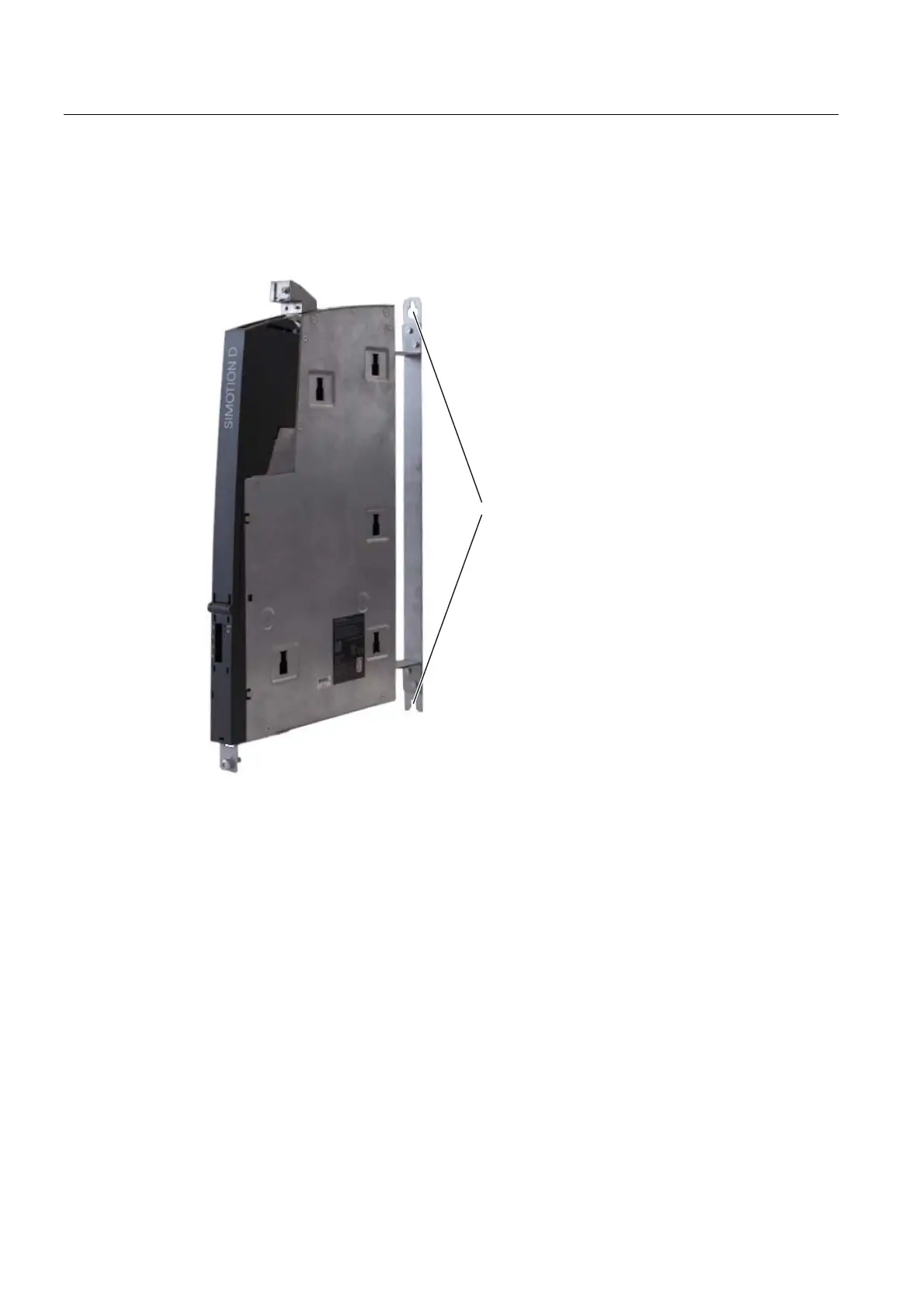

CX32-2 with spacers on a mounting surface
To achieve the correct mounting depth for a booksize line-up with internal air cooling, a
spacer is pre-assembled on the CX32-2. The spacer must then be fixed to the mounting
surface.
6HFXUHZLWK
VFUHZV01P
Figure 2-11 Mounting a CX32-2 with spacers
2.3.4 Removing the cover of the CX32-2
Actions to remove the cover of the CX32-2
Several steps are required to remove the cover:
● Release
● Swing open through approx. 45°
● Remove
Note that the cover can only be removed when it has been swung open through approx. 45°.
See also
Opening the front cover (Page 47)
