3.10 Routing
SIMOTION D4x5-2
78 Commissioning and Hardware Installation Manual, 02/2012
Engineering system / HMI to PROFINET

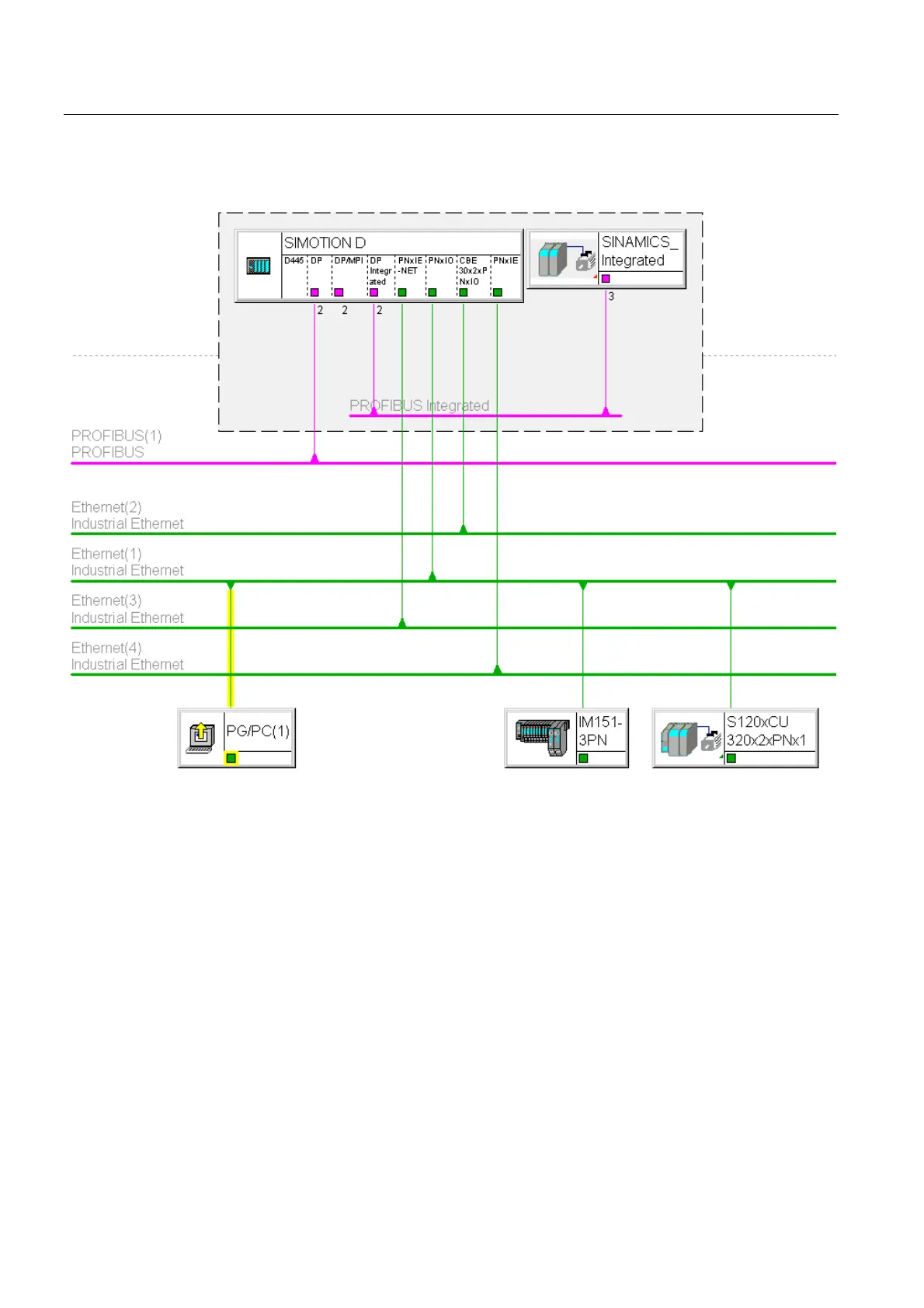

Figure 3-17 Example of PG/PC to PROFINET interface (PNxIO, X150)
● S7 routing to the (master) PROFIBUS interfaces (only if configured)
● S7 routing to the PROFIBUS Integrated
● S7 routing to the Ethernet interfaces PN/IE (X127 P1) and PN/IE-NET (X130 P1) (for
D4x5-2 DP also to PN/IE-OP (X120 P1))
● S7 routing to the second PROFINET IO interface with CBE30-2 (X1400, P1-P4)
● Access to the components on the same subnet via the switch functionality of the
PROFINET IO interface
