● Two cable ties
● One set of signs; how these are to be attached depends on the version.
14.4 Scope of delivery Analog Input Module (AIM)
Cable glands and adapters
The Analog Input Module (AIM) is supplied with various cable glands and adapters.
Connections ① to ③ for power supply Connections ④ to ⑥ for optional modules
① Adapter M20 to ½-14 NPT for
6DR5..0/1/2/3-0.N/P
④ Cable gland for connection thread M20x1.5
with seal insert for 6DR55/6..0-0.G/M/R/S
② M12 connector for device version with
PROFIBUS communication or Fieldbus
FOUNDATION for 6DR55/6..-0.R/S
⑤ Blanking plug for device version without op‐
tional modules 6DR5...-0..00
③ Cable gland for connection thread M20x1.5
for 6DR5..0/1/2/3-0.G/M
⑥ Adapter M20 to ½-14 NPT for
6DR5..0/1/2/3-0.N/P

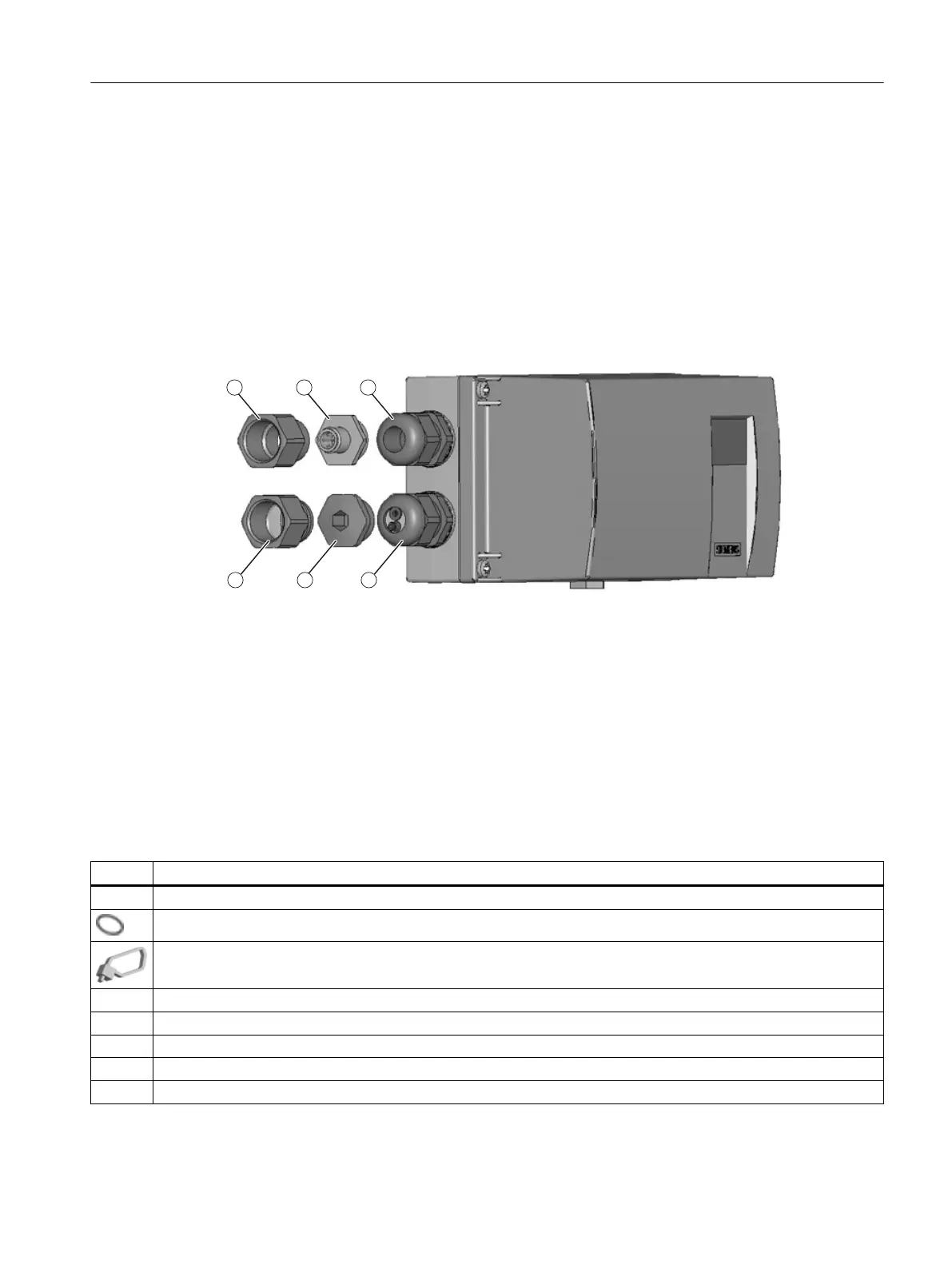

Figure 14-1 Positioner with the different cable glands and adapter
Scope of delivery Analog Input Module (AIM)
Description
Analog Input Module (AIM) C73451-A430-L8
Sealing ring for ⑥
Cable tie
⑥ Adapter M20 to ½-14 NPT
④ Cable gland for connection thread, gray
④ Cable gland for connection thread, blue
Sealing set for ④
Sealing set plug for ④
Spare parts/accessories/scope of delivery
14.4 Scope of delivery Analog Input Module (AIM)
SIPART PS2 with 4 to 20 mA/HART
Operating Instructions, 11/2019, A5E00074631-AE 267
