Shield
Figure 5-1 Base plate ①
5.2 Electrical wiring

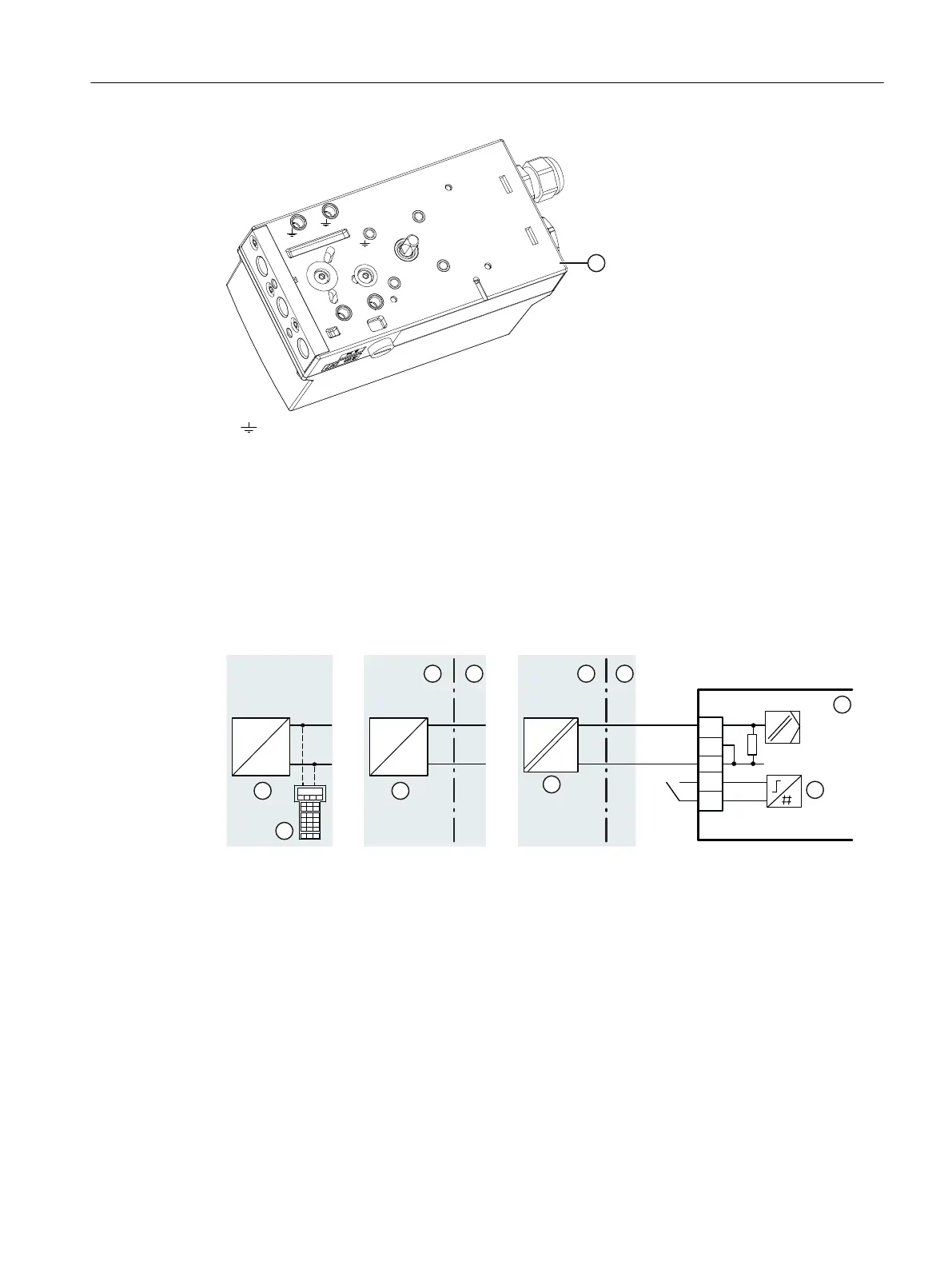

5.2.1 Connection diagram for basic electronics

P$
$
(
,
([

,
([L
([G([W([HQ([+$57
,
① Non-hazardous area ④ Digital input DI1
② Hazardous area ⑤ Signal source
③ Basic electronics ⑥ HART communicator
nEx = Non-explosion-proof device version
Figure 5-2 Device version 2-wire
Connection
5.2 Electrical wiring
SIPART PS2 with 4 to 20 mA/HART
Operating Instructions, 11/2019, A5E00074631-AE 79
