Chapter 3: Service program PowerSys SWT 3000 Equipment Manual
Page - 10 Edition p3_3_2x 08/09 © SIEMENS AG 2008
The <data source> menu

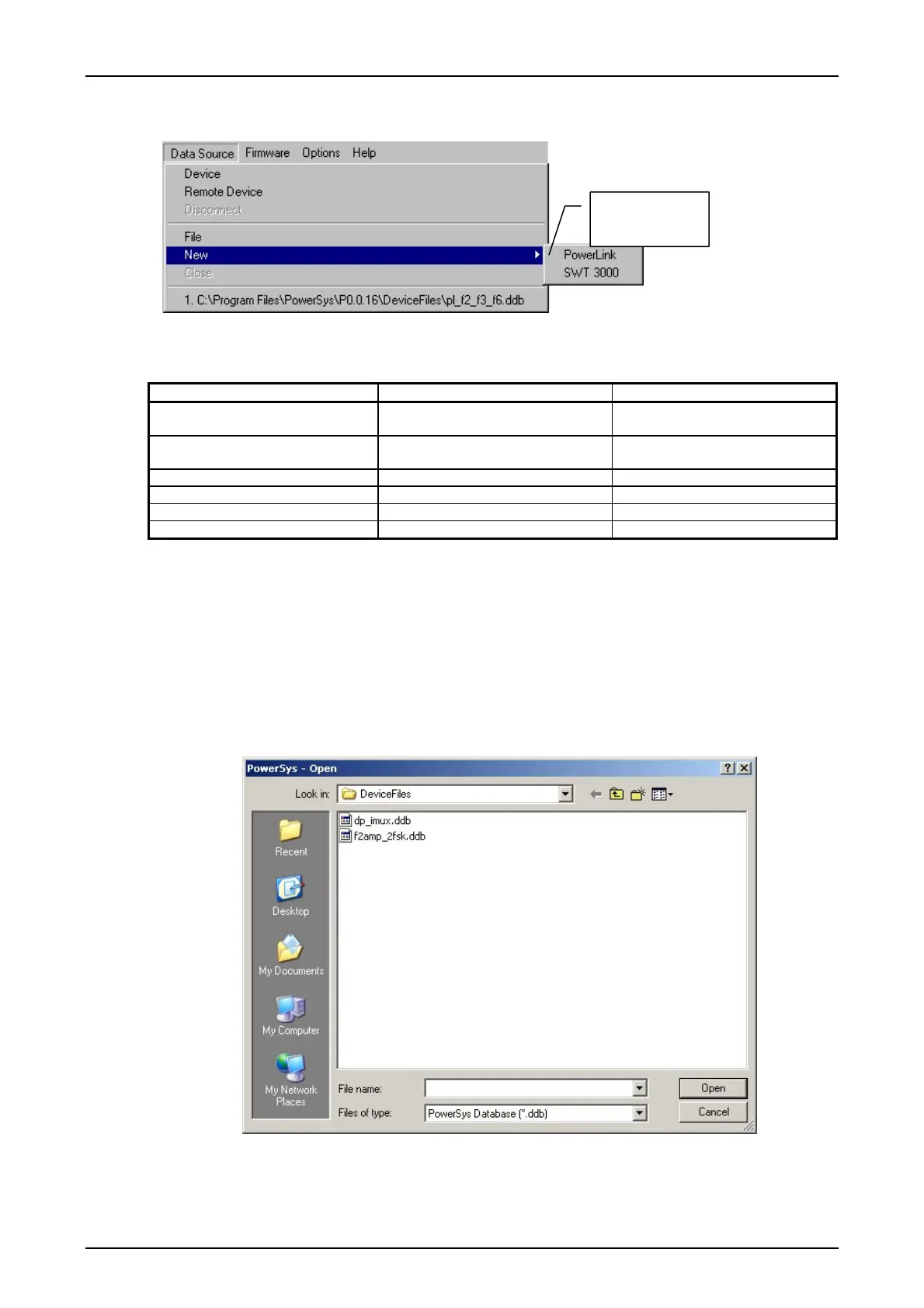

Figure 12: The "Data source" menu
Table 2: Functions of the data source menu
Selection Meaning Remark
Device Establishing the connection to the
device
Remote device Establishing the connection to a
remote device
Disconnect Disconnecting the device
File Load the parameter from a file
New New configuration Select the device type
Close
Data source <Device>
By selection of "Device" the data are read in from the connected terminal. The program attempts
to establish a connection to the unit (PowerLink or SWT 3000) and subsequently loads the data of
the unit into the system memory of the service PC. Subsequently the downloaded data can be pro-
cessed. The program detects from which unit (PowerLink or SWT 3000) the data were read and
automatically changes to the appropriate program level.
Data source <File>
A sub-menu is opened for selecting the file to be loaded.
Figure 13: Loading the data from an existing file
After the file has been loaded, the data can be modified or programmed in the device.
Select the device
type
