SWT 3000 Equipment Manual Installation and Commissioning
Configuration of the command input resp. output

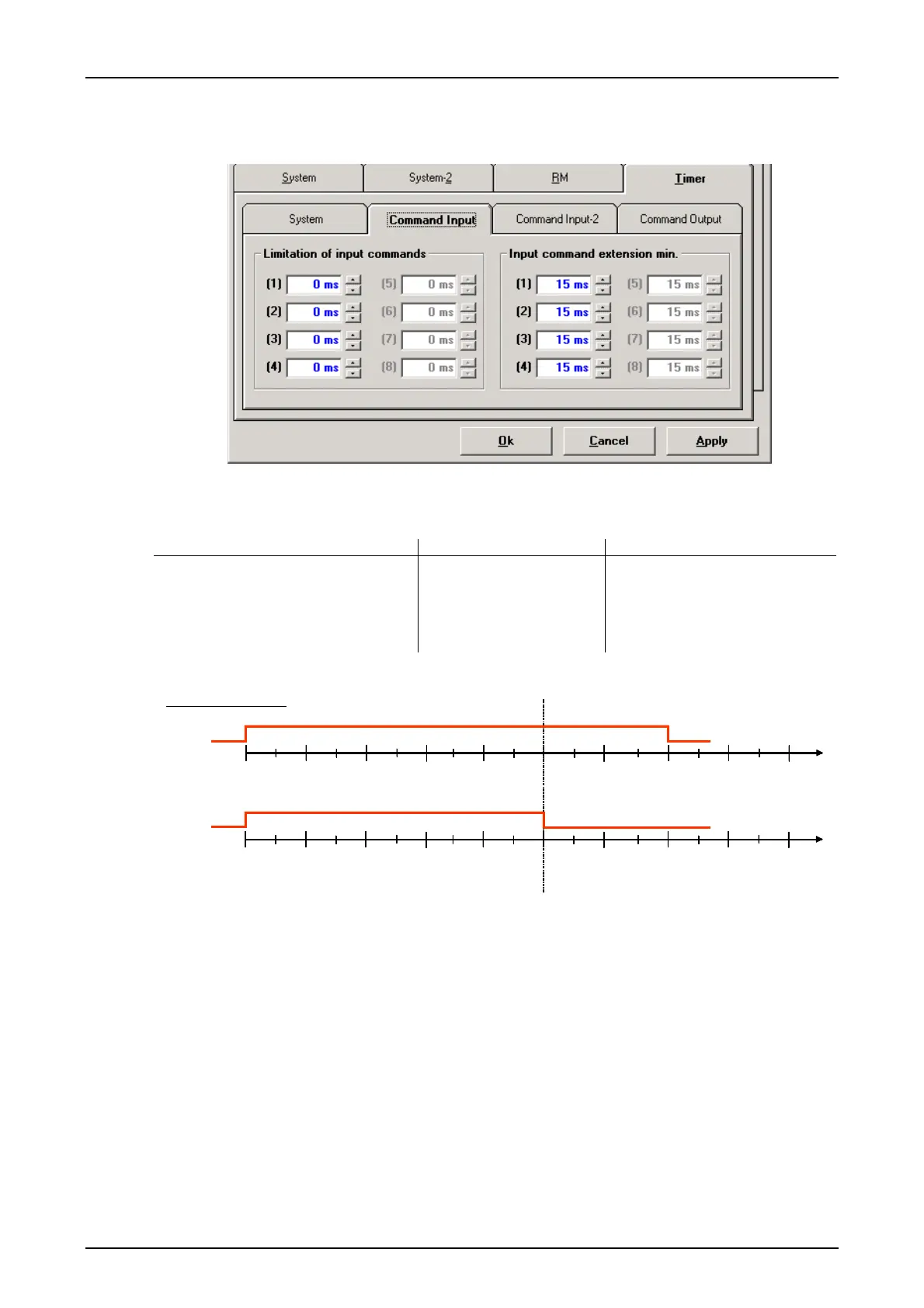

Figure 47: Setting options for the command input
Table 49: Setting options for input limitation
Command input Setting options Comments
Limitation of input command 0 - 2000 ms in steps of 1 ms Longer pulses result in Non urgent
alarm the command transmission is
interrupted.
From PowerSys p3_2_2x the
limitation is
fixed to 1000 ms in the
AMP mode
0 5 10 20 30 40 50 60 70 80
0 5 10 20 30 40 50 60 70 80
Binary Input
Tx Output
Input limitation 50 ms
t
ms
t
ms
Figure 48: Example for input limitation set to 50 ms
© SIEMENS AG 2008 Edition p3_3_2x 08/09 Page - 53
