Installation and Commissioning SWT 3000 Equipment Manual

Setting options for the SWT 3000 <Timer> configuration

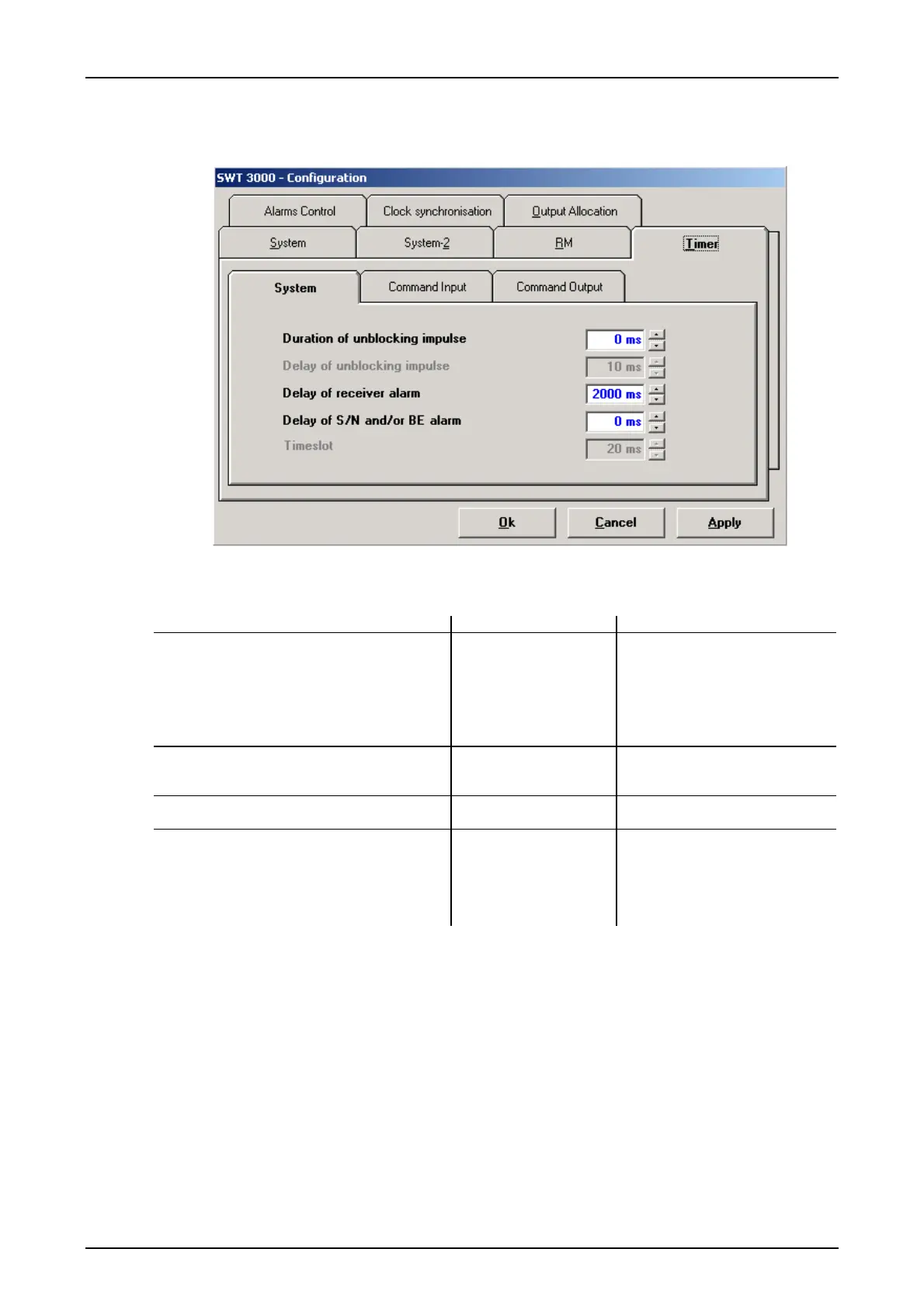

Figure 46: The SWT 3000 timer tab

Table 48: Settings of the SWT 3000 timer configuration

Selection Setting options Comments

Duration of Unblocking impulse 0 – 300 ms in steps of

10 ms

0 = no Unblocking pulse.

Note: Different assignment of the

IF4 output relays in operating

Modes 1 and 2 when using the

Unblocking pulse. Further infor-

mation in Chapter 1 of the

SWT 3000 equipment manual.

Delay of receiver alarm 0 – 2000 ms in steps of

50 ms

Delay time until the receiver

alarm is output

Delay of S/N and/or BE alarm 0 – 2000 ms in steps of

50 ms

Delay time until the S/N alarm is

output

Time slot 10 – 100 ms in steps of

10 ms

This setting is

only possible with

operating mode

Mode 3 (switch-

ing functions). The transmission

duration of the assigned com-

mand inputs is defined here (e.g.

in case of continuous signaling).
