Installation and Commissioning SWT 3000 Equipment Manual
Connecting the device with FOM modules
Connecting plugs
Table 3: Arrangement of the connecting plugs of the SWT 3000
Connecting plug Module Pin assignment
IFC-1 IFC D/P/S Page 12
IFC-2 IFC D/P Page 12
X4 PU3f Page 13
X3 CLE / FOM-1 Page 17
X6 FOM-2
X2 ALRS Page 18
X1 Power supply PS next Fig.
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
N(+)
X1
L1(-)
SV
2
5
8
11
14
17
20
23
26
29
32
ALRS
X2
CLE/FOM1
X3
C1
A1
C1
A1
C32
A32
C32
A32
C32
A32
C1
A1
IFC-1
IFC-2
X41
X4
PU3
SSB
SC
FOM2
X6
X42
SSR
*
*
* loop position / Modul ausblenden
1
2
3
1
2
3
SSB RM connector
SSR remote access connector
SC service channel connector

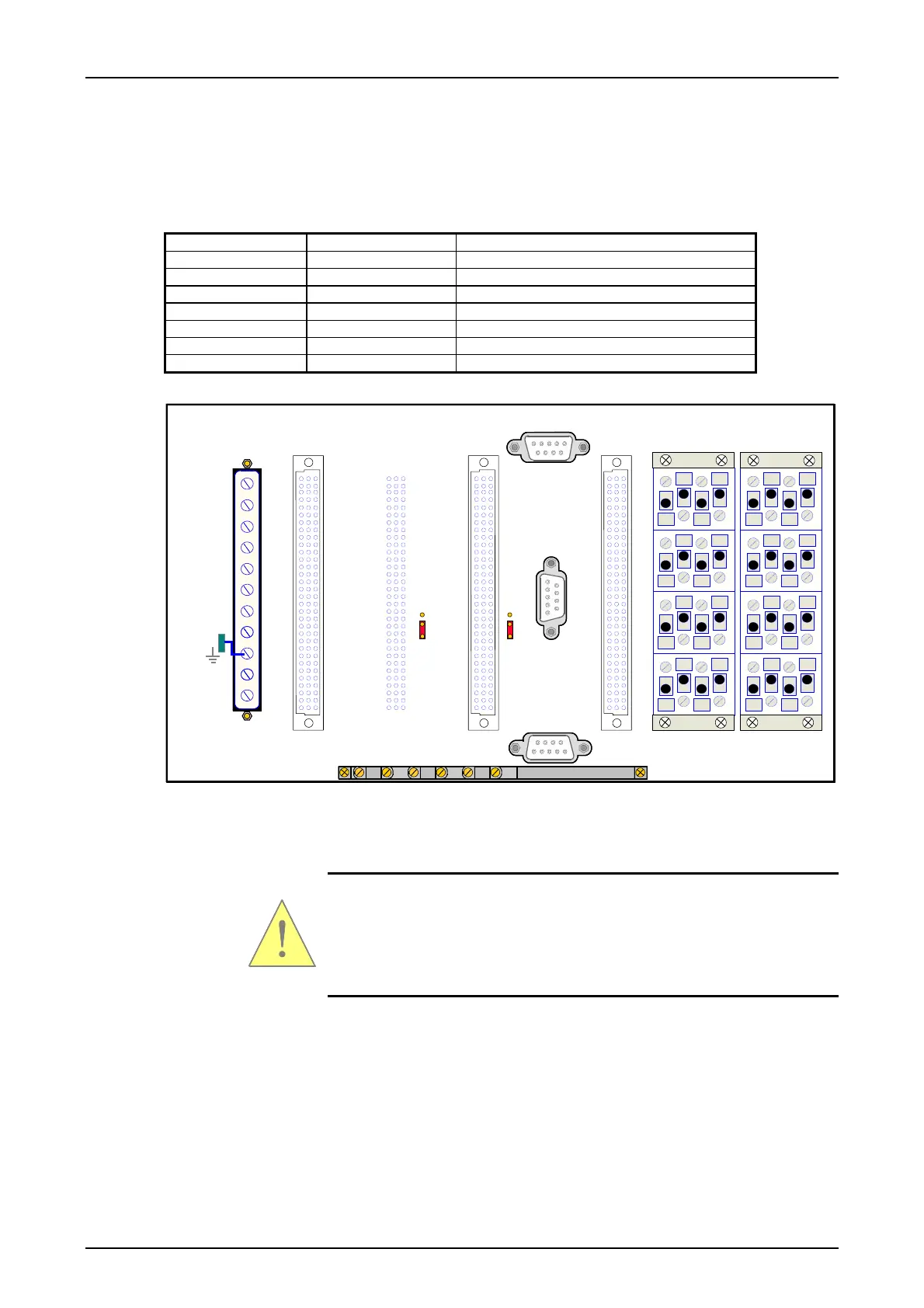

Figure 3: View of a SWT 3000 backplane with FOM slots
The power supply cables have to be tied additional immediately at the
terminals.
Please follow the performance details on the back plane
Page - 10 Edition p3_3_2x 08/09 © SIEMENS AG 2008
