Siemens SWT-3000 User Manual

Installation and Commissioning SWT 3000 Equipment Manual
Timer settings for the command output

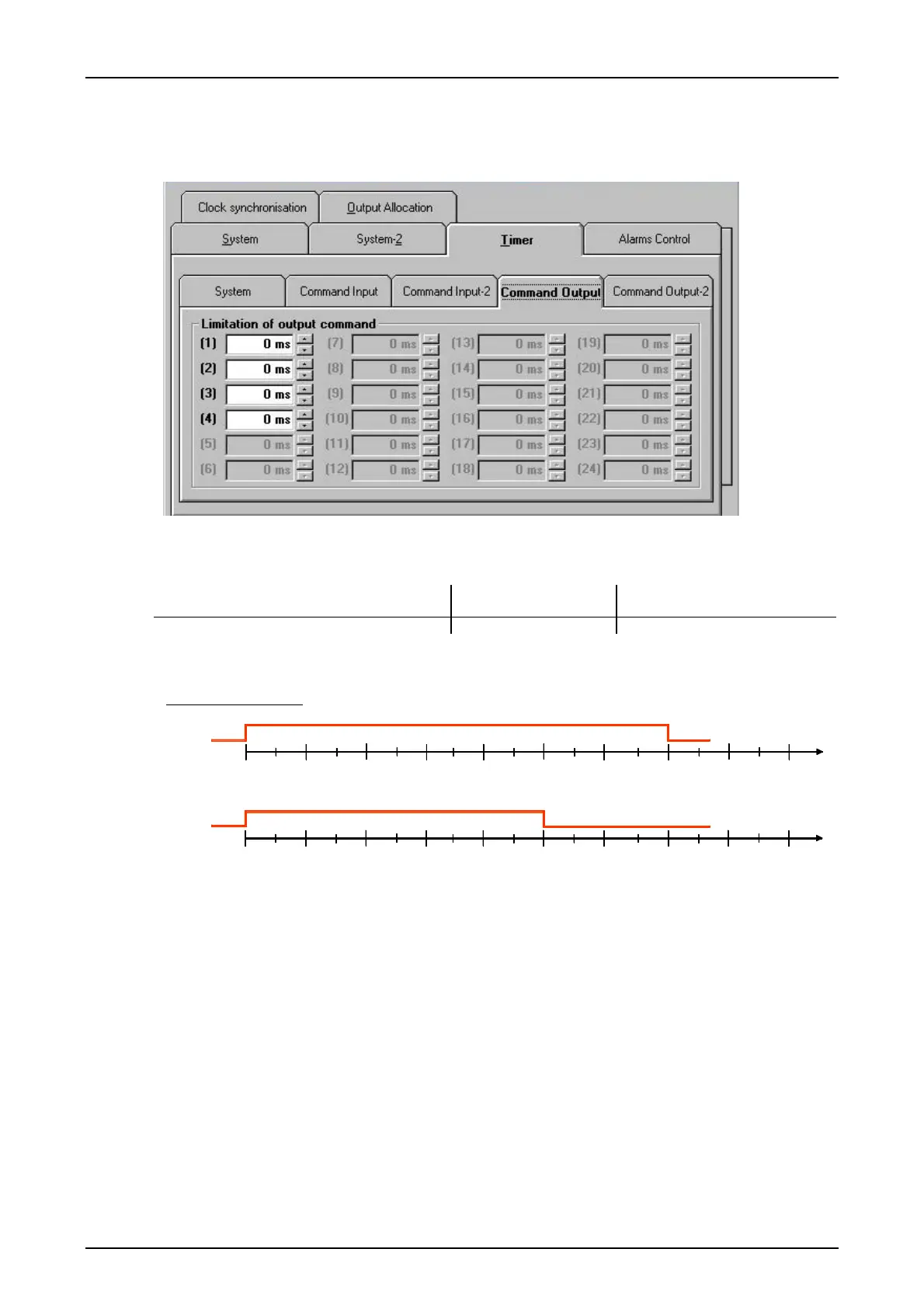

Figure 52: Setting options for limitation of the output command
Table 51: Setting ranges for limiting or increasing the output time
Command output Setting options Comments
Limitation of output command 0 or to 500 ms 0 = no limitation
The command in the example below is transmitted for 700 ms (Tx output). With the activated out-
put limitation the command output is switched off after 500 ms.
0 50 100 200
300 400 500 600 700 800
Rx Output
Output limitation 500 ms
Tx Output
0 50 100 200 300 400 500 600 700 800
t
ms
t
ms
additional Rx alarm!
Figure 53: Example of an activated output command limitation
Page - 56 Edition p3_3_2x 08/09 © SIEMENS AG 2008
