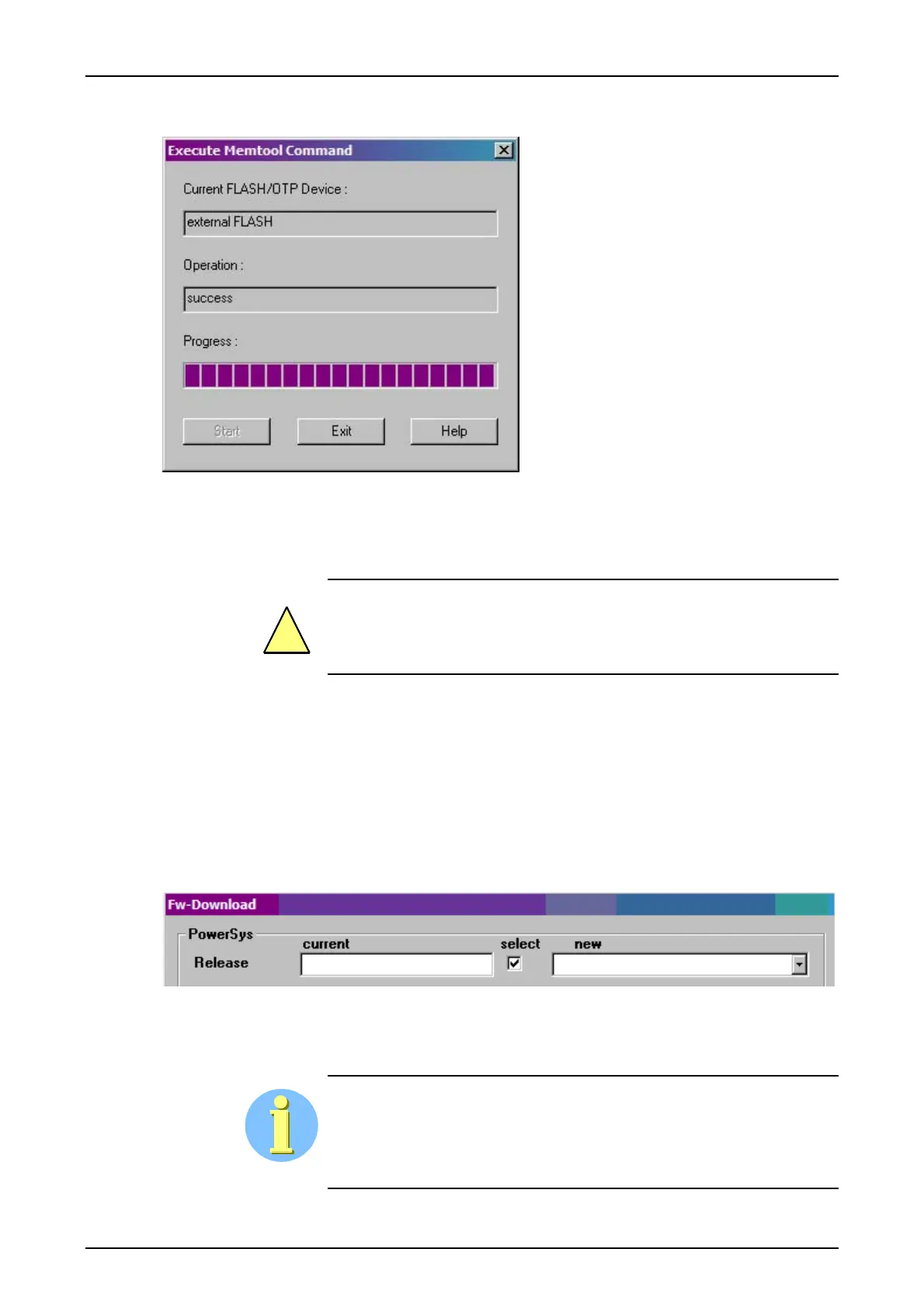

Figure 61: Display of the successful FLASH programming
After successful upgrade Exit the command dialog, click Disconnect and Exit to close the Mem-
Tool in the main view. Switch OFF Power on the SWT / PowerLink system. Move jumper X17
back to position 1-2 on the PU3 module.
In case SWT is integrated in PowerLink switch S2/2 on the CSP back to
the OFF position.
PowerSys release upgrade check
Connect the service PC to the front plug of the PU3 module and start the PowerSys service pro-
gram. With the menu <Firmware Download> the service program is connected to the SWT 3000
(refer to figure 42 on page 31).
PowerSys release
On the top of the form the FW release is shown. If the release in the device (displayed under “cur-
rent”) and the release of the actual service program (displayed under “new”) are different <select>
is marked ; and the download button is activated.
Figure 62: Display of the PowerSys FW Release
Verify the PowerSys current and new release and click Download for update of the release. The
Download button is only activated if the current and new release is different.
This PowerSys upgrade check must be carried out after each software
upgrade with Memtool, because the PowerSys version is not included
in the “AllInOne” files!
!
Rel.: P3.3.2xx/2xx
