100 MS 201, MS 201 C, MS 201 T, MS 201 TC

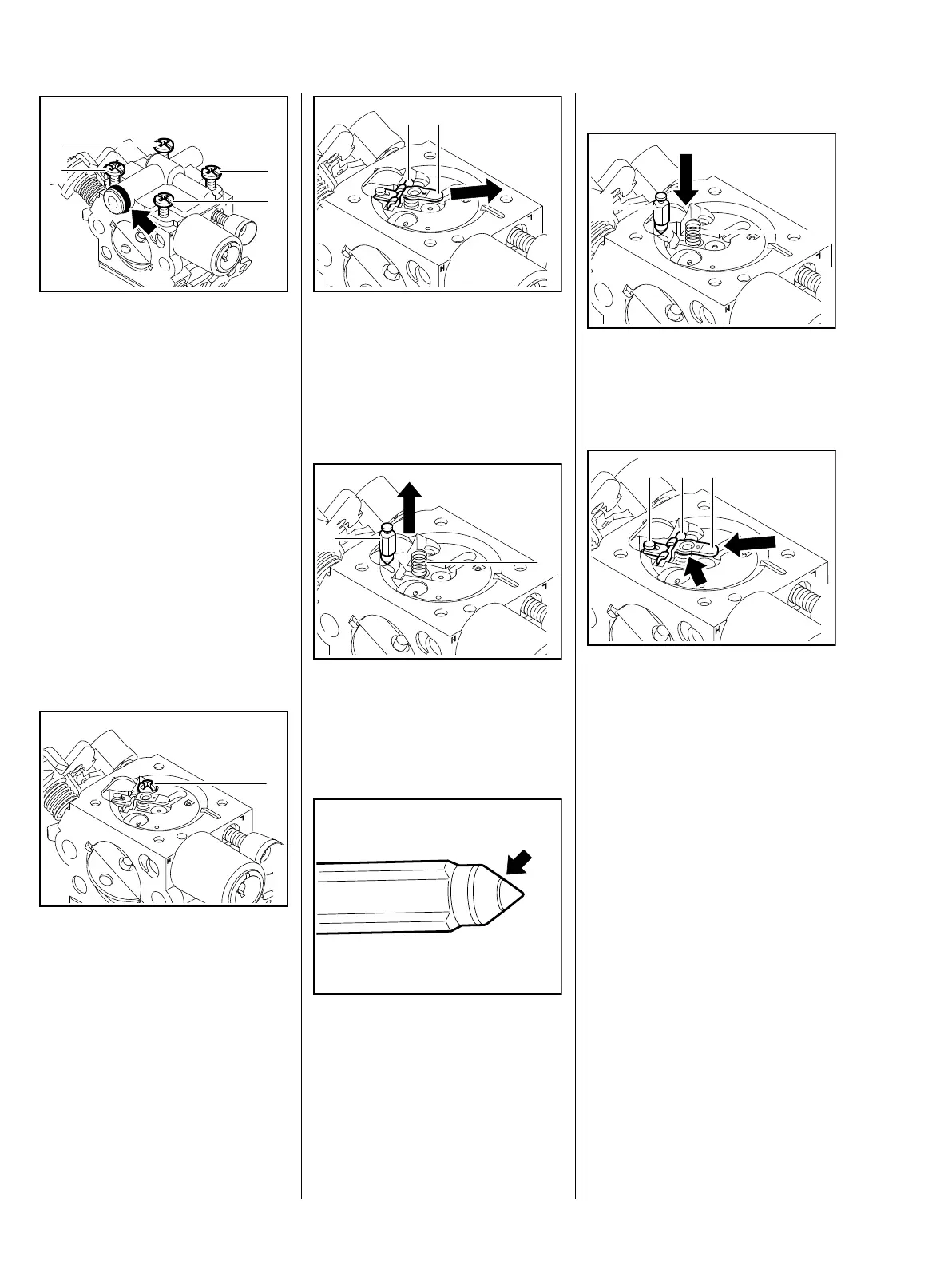

: Fit the screws (1).
– Check position of metering
diaphragm and gasket, then
tighten down the screws firmly in
a crosswise pattern.
: Check the O-ring (arrow) and
replace it if necessary
– Reassemble all other parts in the
reverse sequence.
12.6.2 Inlet Needle
– Remove the metering
diaphragm, b 12.6.1
: Take out the screw (1).
7013RA317 TG
1
1
1
1
7013RA318 TG
1
: Pull the inlet control lever (1) with
spindle (2) out of the inlet
needle’s groove.
The small spring under the inlet
control lever may pop out.
: Remove the inlet needle (1).
: Remove the spring (2). Inspect
and replace if necessary.
: If there is an annular indentation
(arrow) on the sealing cone of the
inlet needle, fit a new inlet
needle.
7013RA319 TG
12
2
7013RA320 TG
1
165RA348 TG
Installing
: Fit the inlet needle (1).
: Fit the spring (2) in the bore.
: Position the inlet control lever (3)
with spindle (2) on the spring
(arrow) first, then slide the inlet
control lever’s clevis into the
groove in the inlet needle (1).
Make sure the spring locates on the
control lever’s nipple.
– Press the inlet control lever down
and secure it with the screw.
– Check that the inlet control lever
moves freely.
– Install the metering diaphragm,
b 12.6.1
2
7013RA321 TG
1
7013RA322 TG
321
