70 MS 201, MS 201 C, MS 201 T, MS 201 TC
Installing

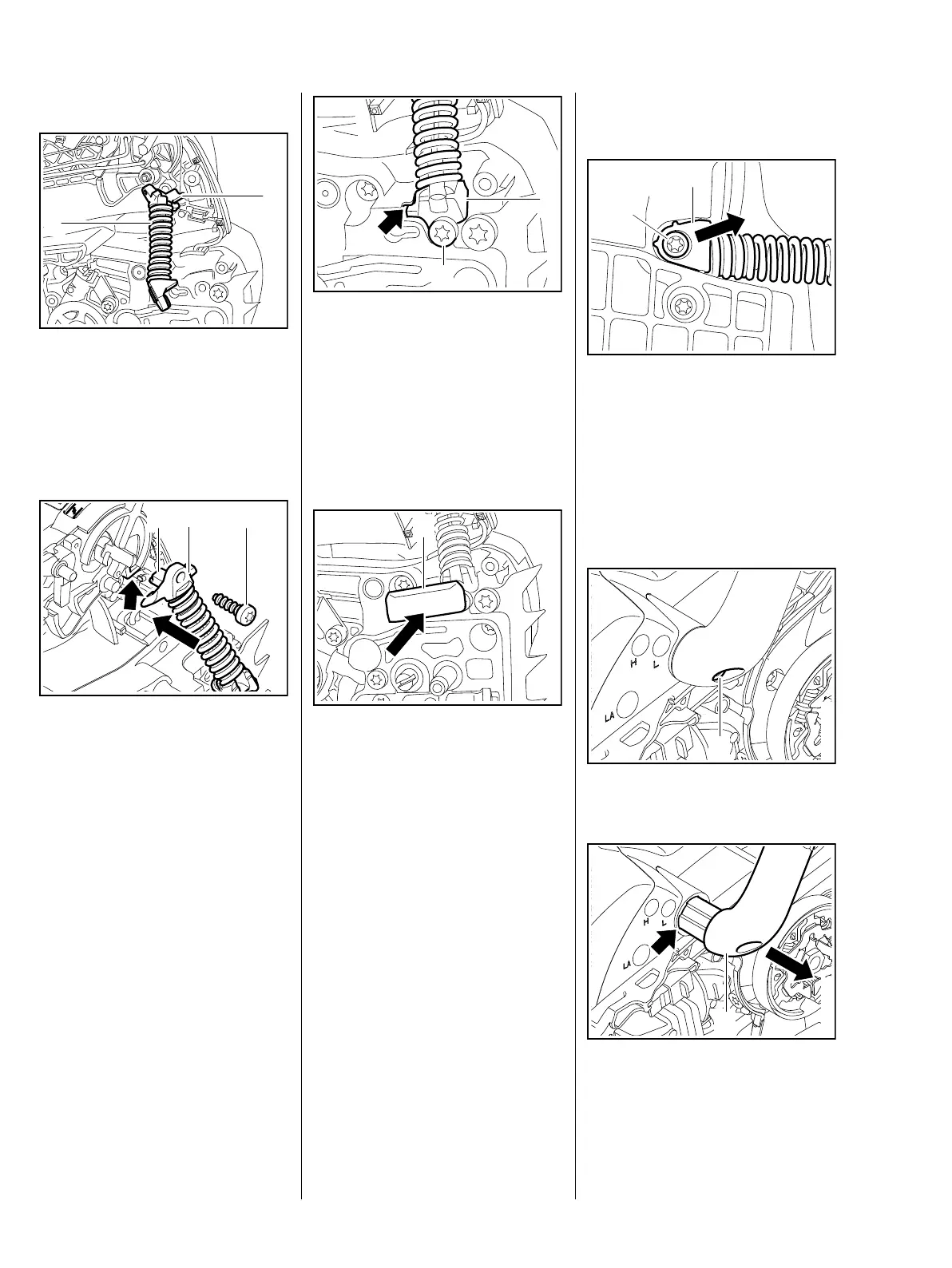

: Position the AV spring (1) so that
the lug (2) points in the direction
of the handle housing.
The bearing plug is held in the
handle housing by the lug (2).
: Push the AV spring (1) with
lug (2) into its seat (arrow) and
line it up.
: Insert and tighten down the
screw (3) firmly.
2
7013RA073 TG
1
7013RA074 TG
2
1
3
: Push bearing plug (1) with lug
into recess (arrow) in crankcase
as far as stop.
: Coat the screw (2) with Loctite, fit
it and tighten it down firmly, b 14
– Fit the handle molding, b 10.3
: Push the bumper strip (1) into its
seat as far as stop.
– Reassemble all other parts in the
reverse sequence.
7013RA075 TG
1
2
7013RA076 TG
1
9.3 Front Handle / AV Spring
(MS 201)
: Remove the screw (1) from the
underside of the machine.
– Screw (1) is secured with
Loctite. Preheat with a hot air
blower if necessary.
: Pull the bearing plug (2) out of its
seat.
: Take out the screw (1).
: Pull the handlebar (1) out of its
seat (arrow) and lift it away.
2
7013RA077 TG
1
7013RA078 TG
1
7013RA079 TG
1
