96 MS 201, MS 201 C, MS 201 T, MS 201 TC
Secure throttle rod to stop it falling
out during carburetor installation.

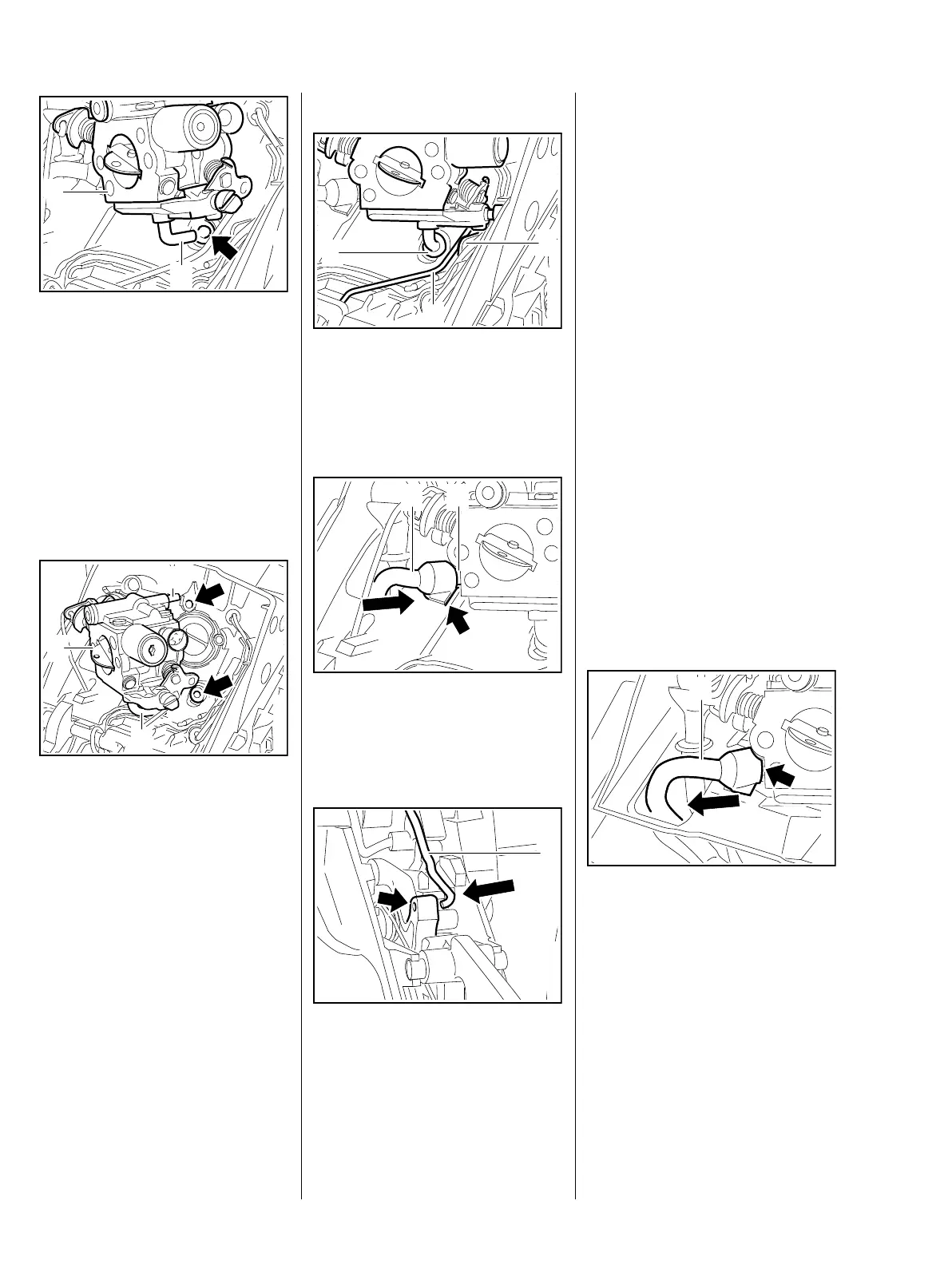

: Position the carburetor (1) so that
the stub (2) points towards the
impulse hose (arrow).
– Push carburetor into position until
it locates against the manifold.
Models with manual fuel pump
Secure throttle rod to stop it falling
out during carburetor installation.
: Position the carburetor (1) so that
stub (2) points towards the
impulse hose (arrow) and
stub (3) towards the fuel hose
(arrow).
– Push carburetor into position until
it locates against the manifold.
7013RA126 TG
1
2
7013RA127 TG
1
2
3
All models
The throttle rod (1) must be
between the impulse hose (2) and
the rib (3)
– throttle rod is secured to prevent it
falling out.
: Push the new fuel hose (1) onto
the stub (2) so that the lug
(arrow) locates against the
handle housing rib.
: Connect the throttle rod (1) to the
trigger (arrow).
– Fit the handle molding, b 10.2
7013RA128 TG
3
2
1
7013RA129 TG
1
2
7013RA130 TG
1
– Check operation
– Set throttle trigger to full throttle
position, the throttle shutter must
be fully open.
– Tighten down the annular buffer's
screw on the fuel tank firmly,
b 9.1
– Install the filter base, b 12.3
– Reassemble all other parts in the
reverse sequence.
12.5 Carburetor (MS 201 T)
– Open the fuel tank cap and drain
the fuel tank.
– Collect the fuel in a clean
container, b 1
Disconnect the fuel suction hose
only when the tank cap is open.
– Remove the filter base, b 12.3.1
: Pull the fuel suction hose (1) off
the nipple (arrow).
7013RA131 TG
