90 MS 201, MS 201 C, MS 201 T, MS 201 TC

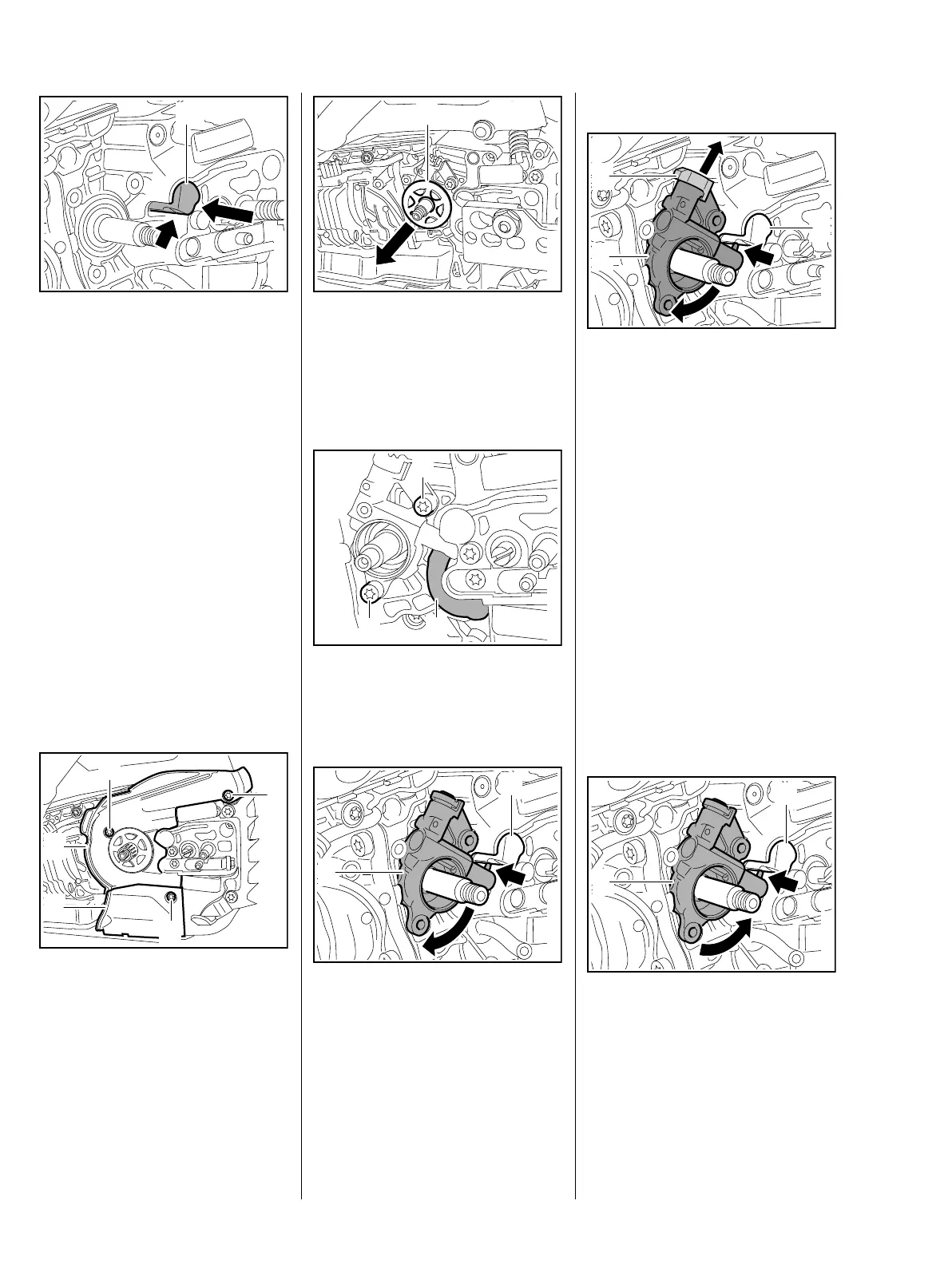

: Line up the connector (1) so that
the shoulder (arrow) is visible and
points towards the oil pump's
stub.
: Push the connector (1) into its
seat as far as stop.
– Install the oil pump and push the
worm into position, b 11.4
– Reassemble all other parts in the
reverse sequence.
11.4 Oil Pump
– Troubleshooting, b 3.3
– Remove the clutch drum, b 4.2
: Take out the screws (1).
: Remove covers (2) and (3).
7013RA110 TG
1
7013RA191 TG
1
1
1
2
3
: Pull the worm (1) out of the oil
pump.
– Inspect the worm, replace if
necessary
: Pull off the oil suction hose (1).
: Take out the screws (2).
: Turn the oil pump (1) clockwise
until the stub (arrow) slips out of
the connector (2).
: Check the oil pump (1) and
replace if necessary
7013RA100 TG
1
7013RA101 TG
2
2
1
7013RA102 TG
2
1
MS 201 T
: Turn the oil pump (1) clockwise
until the stub (arrow) slips out of
the connector (2).
: Remove the oil pump (1) and pull
off the grommet (3).
– Check the oil pump and
grommet, replace if necessary.
All models
– Inspect the oil suction hose,
replace if necessary, b 11.2
– Check the connector and replace
if necessary, b 11.3
Installing
: Place the oil pump (1) in position
and turn it counterclockwise until
the stub (arrow) is properly
seated in the connector's
bore (2).
7013RA527 TG
1
3
2
7013RA103 TG
2
1
