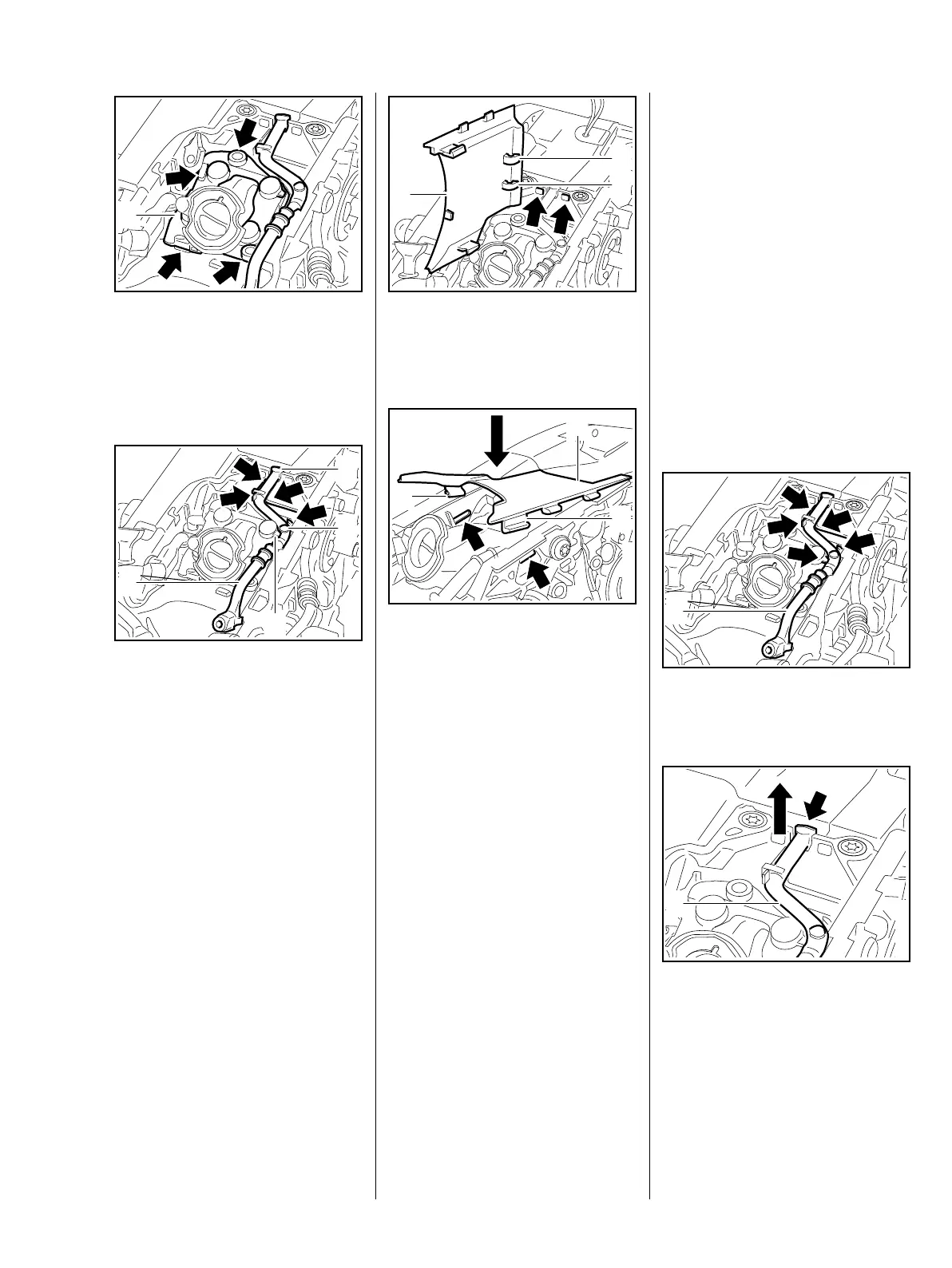

: Push the cover (1) into the tank
housing as far as stop – the
round and elongated pegs
(arrows) must be properly
seated.
: Position the impulse hose (1) in
the guides (arrows) and push it
home until the lug (2) is on top of
the hose (1).
The lug (2) must locate against the
knob (3).
Make sure the elbow connector (4)
is pushed fully home.
1
7013RA149 TG
7013RA256 TG
1
2
3
4
: Push the tabs (2) of the cover (1)
into their seats (arrows) until they
snap into place.
Make sure that the fuel hoses and
the impulse hose are not pinched.
: Push the tabs (2) of the cover (1)
into their seats (arrows) in the
tank housing until they snap into
place.
– Fit the handle housing
MS 201, b 10.4
MS 201 T, b 10.5
– Install the carburetor.
MS 201, b 12.4
MS 201 T, b 12.5
– Reassemble all other parts in the
reverse sequence.
7013RA257 TG
1
2
2
7013RA258 TG
2
1
2
12.8.1 Impulse Hose
A damaged impulse hose can result
in engine running problems.
– Troubleshooting, b 3.6 or
b 3.7
– Removing the carburetor
MS 201, b 12.4
MS 201 T, b 12.5
– Remove the handle housing,
MS 201, b 10.4
MS 201 T, b 10.5
– Remove the cover, b 12.8
: Pull the impulse hose (1) out of
the guides (arrows).
: Pull the impulse hose (1) off the
nipple (arrow).
– Check the impulse hose and
replace if necessary.
7013RA259 TG
1
7013RA260 TG
1
