103MS 201, MS 201 C, MS 201 T, MS 201 TC
Installing

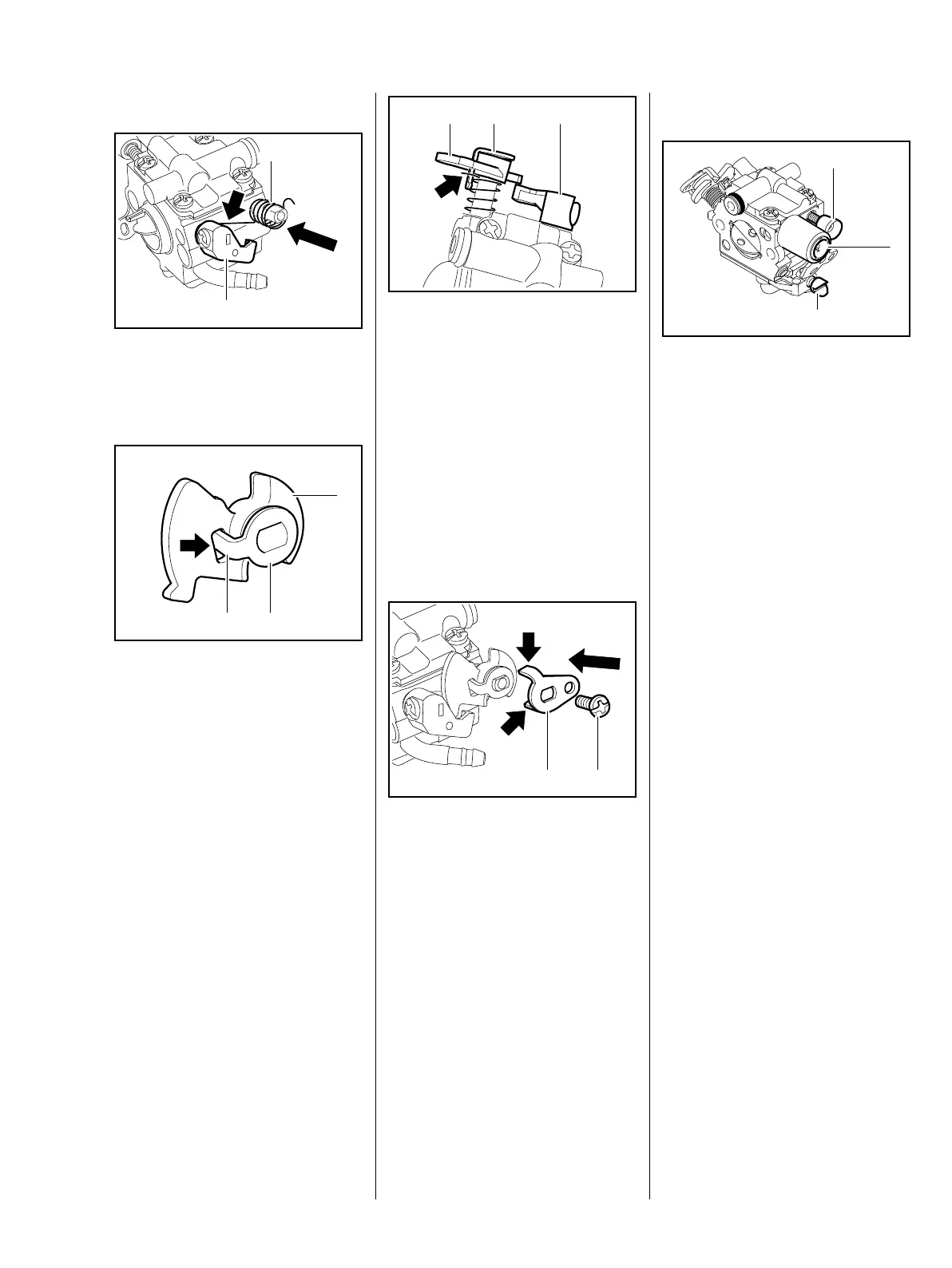

: Fit the torsion spring (1) so that
its leg (arrow) is against the
throttle shaft (2).
: Place lever (1) on higher hub of
detent lever (2) and engage the
driver (3) in the opening (arrow).
7013RA333 TG
2
1
2
7013RA334 TG
13
: Set the throttle shaft lever (1) to
full throttle and hold it there.
: Push the lever (2) with detent
lever (3) onto the choke shaft and
attach driver to torsion spring
(arrow), then turn it
counterclockwise until the levers
slip onto the flats.
– Hold the lever and detent lever
steady and let go of throttle shaft
lever.
: Position lever (1) so that it points
in the direction of the choke
shutter and the hooks (arrows)
engage the recesses in the
detent lever.
: Hold the lever (1) steady, insert
and tighten down the screw (2)
firmly.
7013RA335 TG
13 2
7013RA339 TG
1 2
12.6.6 Adjusting Screws
There are three adjusting screws on
the carburetor:
H = high speed screw (1)
L = low speed screw (2)
LA = idle speed screw (3)
If the carburetor cannot be adjusted
properly, the problem may be the
adjusting screws.
– Troubleshooting, b 3.6
Always install a new limiter cap.
– Remove the carburetor,
MS 201 b 12.4,
MS 201 T b 12.5
7013RA342 TG
1
2
3
