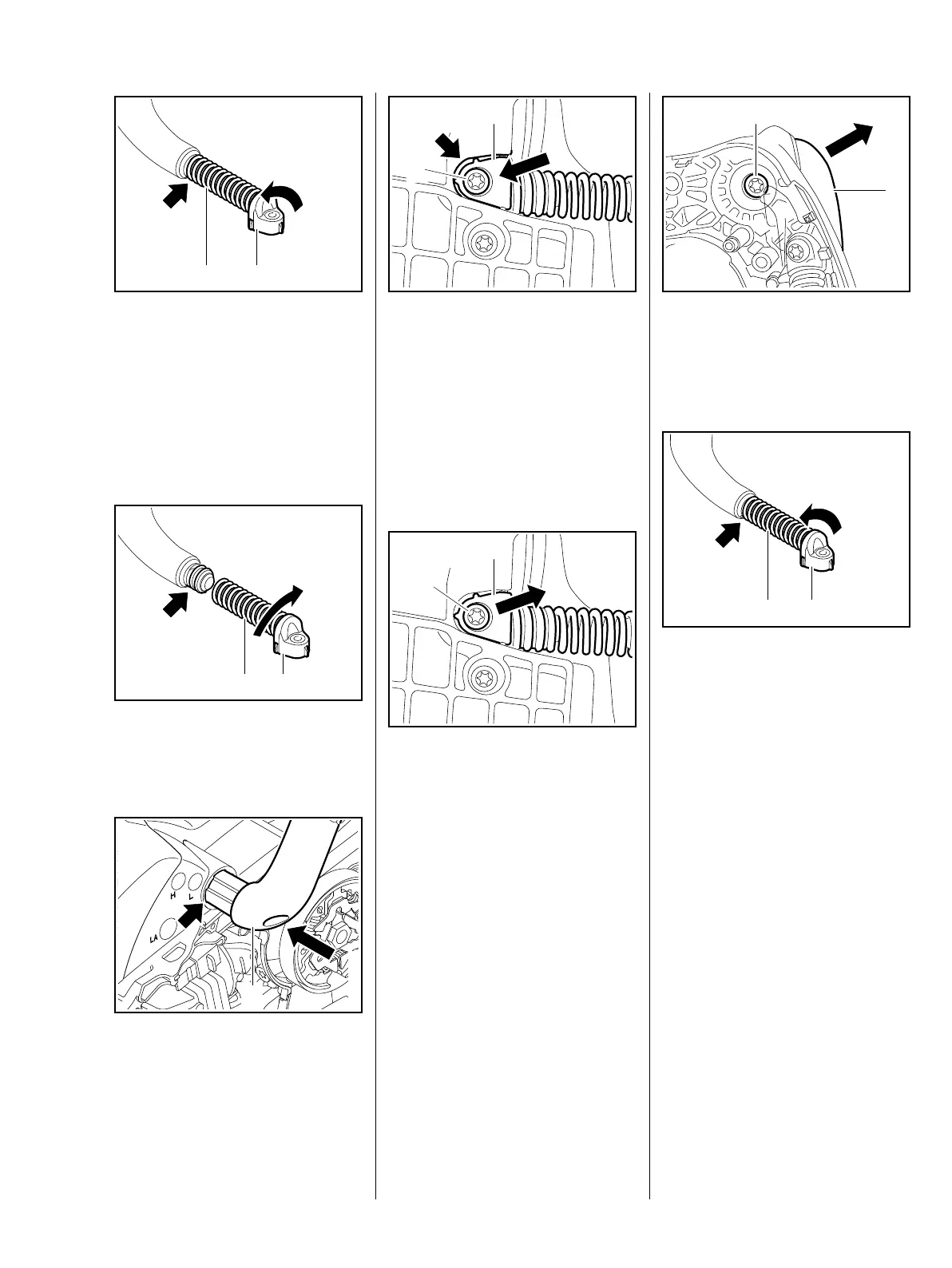

: Unscrew the AV spring (1) with
bearing plug (2) from the
handlebar (arrow).
– Check individual parts, replace if
necessary
Installing
: Screw the AV spring (2) with
bearing plug (1) onto the
handlebar (arrow) as far as stop.
: Push the handlebar (1) into its
seat (arrow).
– Insert screw and tighten it down
firmly.
7013RA080 TG
1 2
7013RA081 TG
1 2
7013RA082 TG
1
: Push the bearing plug (1) into its
seat (arrow) on the underside of
the machine.
: Coat the screw (2) with Loctite, fit
it and tighten it down firmly, b 14
9.3.1 Front Handle / AV Spring
(MS 201 T)
: Remove the screw (1) from the
underside of the machine.
– Screw (1) is secured with
Loctite. Preheat with a hot air
blower if necessary.
: Pull the bearing plug (2) out of its
seat.
– Remove the handle molding and
switch shaft, b 10.3
1
7013RA083 TG
2
2
7013RA077 TG
1
: Take out the screw (1).
: Pull the handlebar (2) out of the
handle housing and lift it away.
: Unscrew the AV spring (1) with
bearing plug (2) from the
handlebar (arrow).
– Check individual parts, replace if
necessary
2
7013RA084 TG
1
7013RA085 TG
1 2
