52 MS 201, MS 201 C, MS 201 T, MS 201 TC

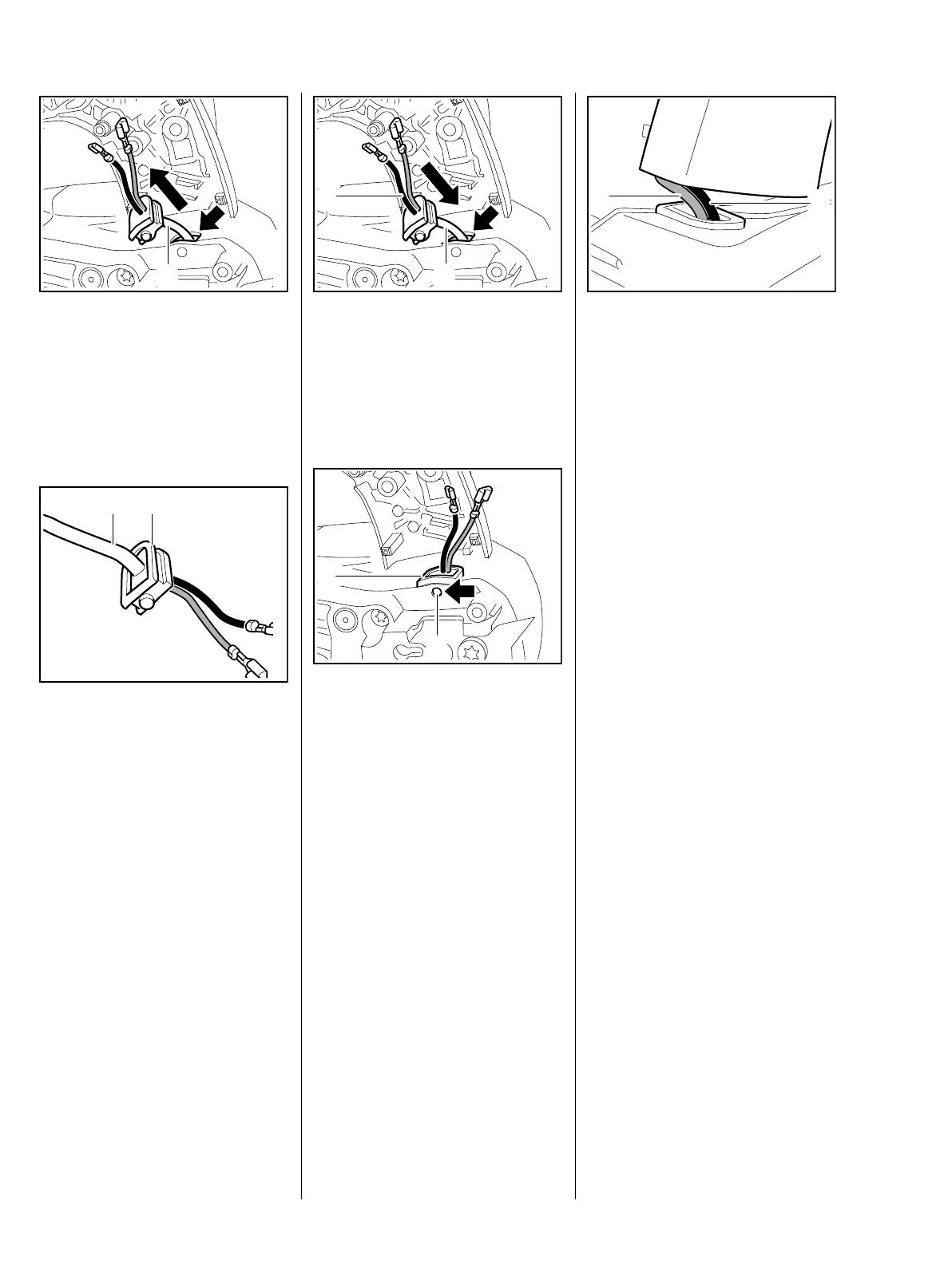

: Thread the wiring harness (1)
through the opening (arrow).
– Check the wiring harness and
replace if necessary.
Installing
The protective tube (1) must locate
against the grommet (2).
: If necessary, push the wiring
harness in direction of
grommet (2) until protective
tube (1) locates properly.
7013RA432 TG
1
7013RA433 TG
21
: Position the wiring harness (1) so
that the protective tube (2) points
towards the ignition module.
: Thread the wiring harness (1)
through the opening (arrow).
– Coat grommet with STIHL press
fluid, b 14
: Push the grommet (1) into the
opening so that the peg (2)
engages the bore (arrow) – the
grommet must be properly
seated in the opening.
– Install the ignition module, b 7.2
– Fit the contact springs, b 7.6.6
– Fit AV spring in the oil tank,
b 9.2
– Install the switch lever, b 10.1.2
– Install the lockout lever and
throttle trigger, b 10.3
7013RA434 TG
1
2
7013RA435 TG
2
1
There must be no loops in the
ground wire (1) and short circuit
wire (2) between the crankcase and
handle housing and they must not
make contact with housing
components – risk of chafing.
– Reassemble all other parts in the
reverse sequence.
– Check operation of switch shaft,
choke and throttle rods as well as
throttle trigger and lockout lever.
7.6.4 Ground Wire
Ground and short circuit wires are
combined in a wiring harness.
Testing and installation procedures
are identical and described in the
chapter on short circuit wire.
– Perform contact and continuity
test and replace wiring harness if
necessary,
MS 201 b 7.6.2,
MS 201 T b 7.6.3
2
7013RA436 TG
1
