114 MS 201, MS 201 C, MS 201 T, MS 201 TC

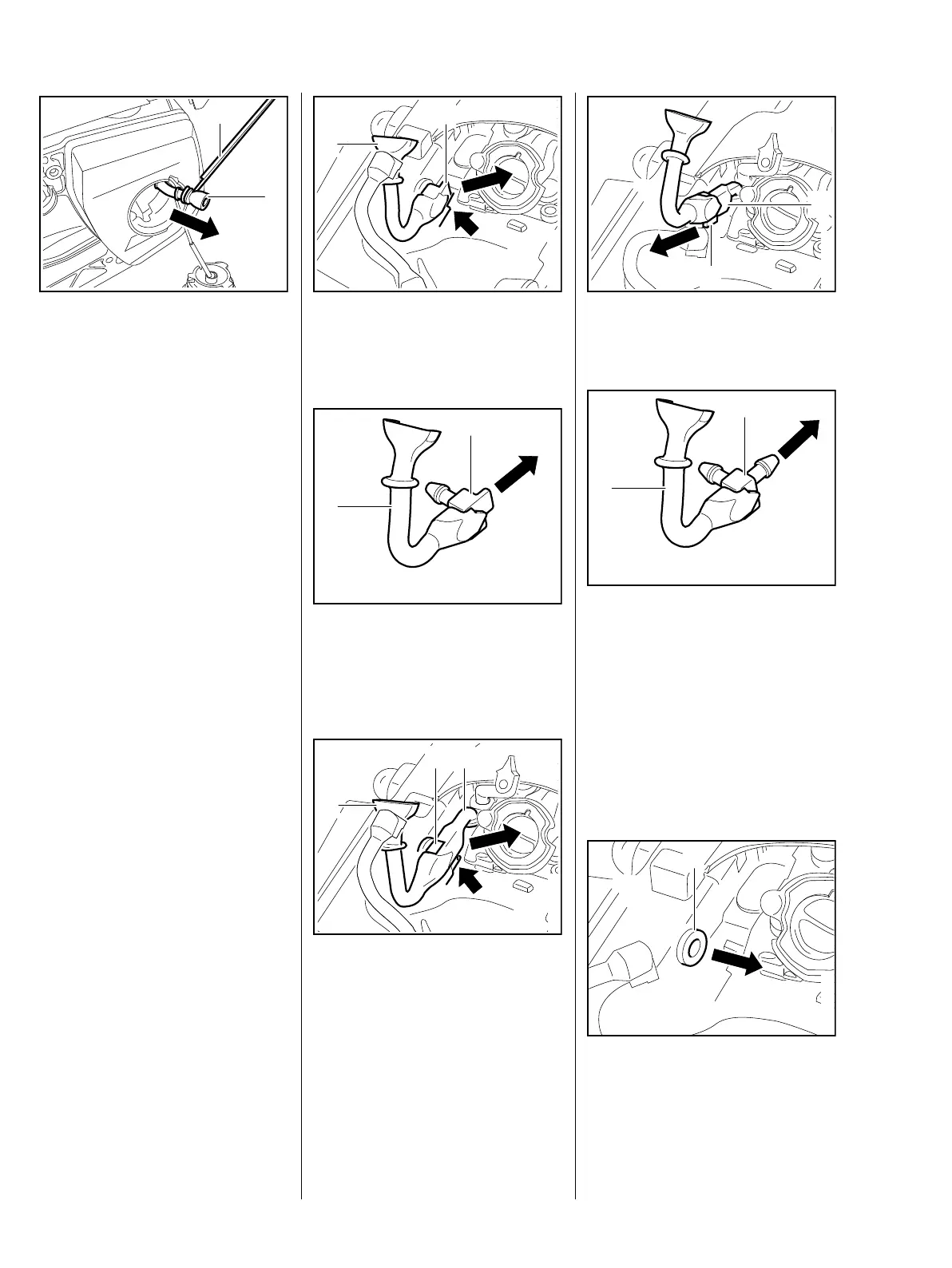

: Use hook (2) 5910 893 8800 to
remove the pickup body (1) from
the fuel tank.
Do not overstretch the fuel suction
hose (1).
– Fit the pickup body, b 12.10.1
– Close the tank cap.
– Install the handle housing,
MS 201 b 10.4, MS 201 T
b 10.4
– Reassemble all other parts in the
reverse sequence.
12.10.3 Tank Vent Hose
The removal and installation
procedure is the same on the
MS 201 and MS 201 T.
– Remove the handle housing,
MS 201 b 10.4,
MS 201 T b 10.5
7013RA464 TG
2
1
: Lift elbow connector (1) with tank
vent hose (2) clear of its seat
(arrow) and pry it out.
: Pull the elbow connector (1) off
the tank vent hose (2).
Models with manual fuel pump
: Lift elbow connector (1) with tank
vent hose (2) and fuel return
hose (3) clear of its seat (arrow)
and pry it out.
2
7013RA449 TG
1
2
7013RA450 TG
1
7013RA451 TG
2
31
: Pull the elbow connector (1) out
of the fuel return hose (2).
: Pull the elbow connector (1) off
the tank vent hose (2).
All models
– Check the elbow connector and
replace if necessary.
– Install new tank vent hose.
: Pry out the grommet (1), check it
and replace if necessary.
7013RA452 TG
1
2
2
7013RA453 TG
1
7013RA454 TG
1
