47MS 201, MS 201 C, MS 201 T, MS 201 TC

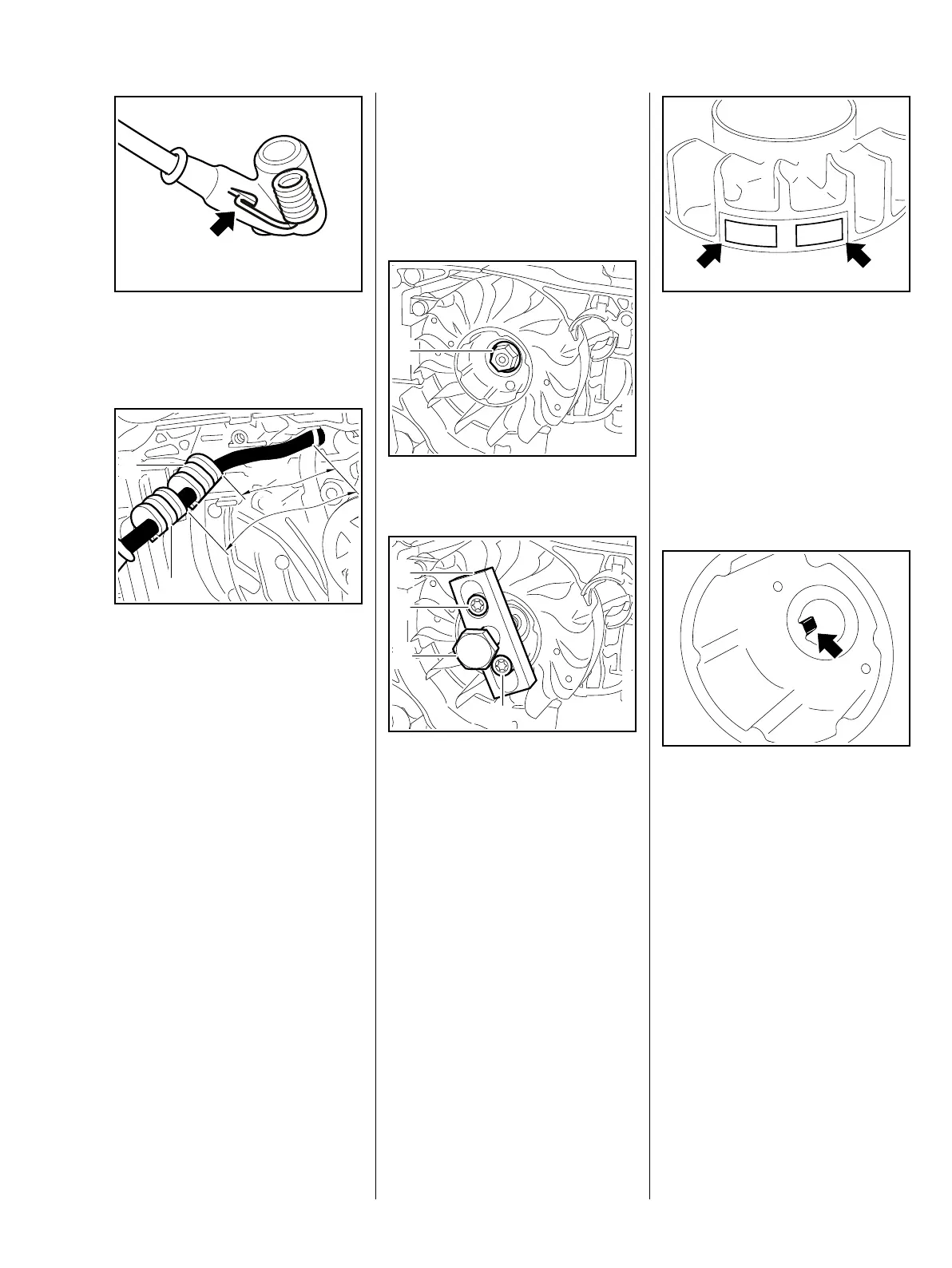

: Make sure the leg spring (arrow)
locates properly inside the spark
plug boot.
: Push first retainer (1) onto the
ignition lead at distance
a = 47 mm from the mark (arrow)
and the second retainer (2) at
distance b = 66 mm.
– Push the boot onto the spark
plug.
– Reassemble all other parts in the
reverse sequence.
2310RA129 TG
7013RA384 TG
2
1
b
a
7.5 Flywheel
– Remove the fan housing, b 8.2
– Use locking strip to block the
crankshaft, b 4.1
: Unscrew the flywheel nut (1).
: Fit the puller (3) 5910 890 4504
on the flywheel and tighten the
screws (1) as far as stop.
– Tighten the screws uniformly.
: Screw home the thrust bolt (2)
clockwise until the flywheel is
released from the crankshaft.
: Remove the puller (3)
5910 890 4504 from the flywheel.
7013RA385 TG
1
7013RA386 TG
1
2
1
3
The flywheel and magnet poles
(arrows) must not be damaged or
have turned blue. Replace flywheel
if necessary.
Installing
The flywheel and crankshaft stub
must be free from grease before
assembly.
Make sure the key (arrow) engages
the slot in the crankshaft.
– Push the flywheel into position, fit
the nut and tighten it down firmly.
– Set the air gap between the
ignition module and flywheel,
b 7.2
– Reassemble all other parts in the
reverse sequence.
7013RA387 TG
7013RA388 TG
