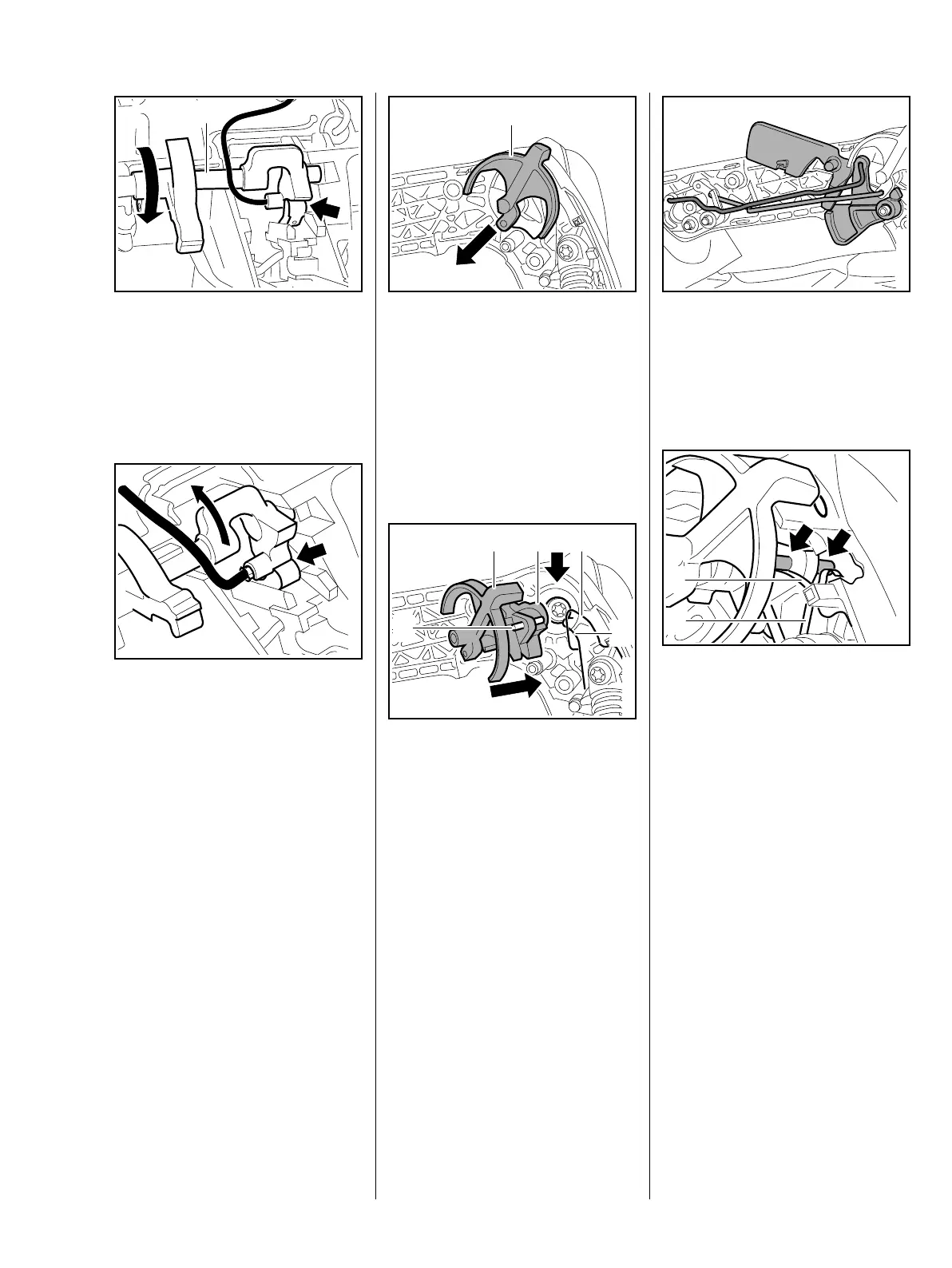

: Turn the switch shaft (1) is
direction of cold start until the
cam (arrow) engages the contact
spring's loop.
Checking operation
: Move the switch shaft to "STOP"
– contact between the short
circuit wire and contact spring
(arrow) must be made.
– Reassemble all other parts in the
reverse sequence.
10.1.2 Switch Shaft (MS 201 T)
– Disengage the chain brake and
remove the chain sprocket cover,
bar and chain.
– Remove the handle molding,
throttle trigger and lockout lever,
b 10.3
1
7013RA208 TG7013RA209 TG
: Ease the switch shaft (1) past the
contact springs and pull it out –
take care not to bend the contact
springs.
– Inspect the switch shaft and
replace if necessary.
Installing
: Ease contact springs (1) and (2)
to one side.
– Coat cylindrical peg with STIHL
multipurpose grease
– make sure there is no grease
on the contact pin and contact
springs, b 14
: Push the switch shaft (3),
cylindrical peg (4) first, into the
pivot mount (arrow) – the integral
contact pin (5) must face the
handlebar.
7013RA210 TG
1
7013RA211 TG
1
2
43
5
– Install the throttle trigger and
lockout lever, b 10.3
– Install the choke and throttle
rods, b 10.3.2
– Check operation
: Set switch shaft to "0" – the
contact springs (1) and (2) must
locate against the contact pin
(arrow) – contact is made.
The throttle trigger and lockout lever
may pop out.
– Reassemble all other parts in the
reverse sequence.
7013RA212 TG
7013RA213 TG
2
1
