32 MS 201, MS 201 C, MS 201 T, MS 201 TC

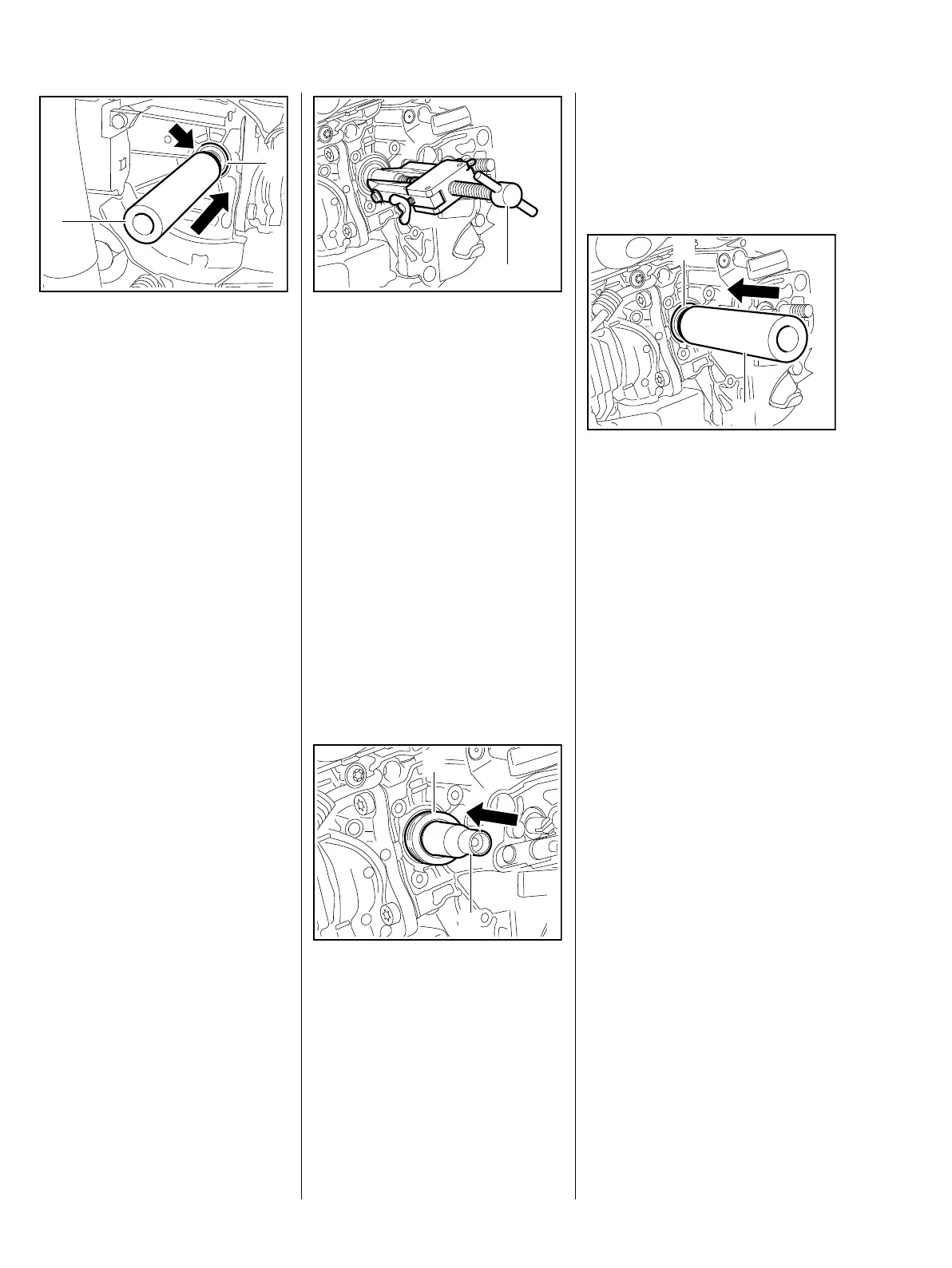

: Line up the press sleeve (2)
1120 893 2400 with the collar
(arrow) facing the engine.
: Press home the oil seal (1) with
press sleeve (2).
The seating face must be flat and
free from burrs.
– Degrease the crankshaft taper,
b 14
– Reassemble all other parts in the
reverse sequence.
6.3.2 Clutch Side
– Disengage the chain brake and
remove the chain sprocket cover,
bar and chain.
– Remove the clutch, b 4.1
– Remove the clutch drum, b 4.2
– Remove the oil pump, b 11.4
7013RA066 TG
1
2
Take care not to damage the
crankshaft stub.
– Free off the oil seal in its seat by
tapping it with a suitable tube or a
punch.
: Apply puller (1) 5910 890 4400.
– Clamp the puller arms.
– Pull out the oil seal.
Installing
– Clean the sealing face, b 14
– Lubricate sealing lips of new oil
seal with STIHL lubricant, b 14
: Fit the installing sleeve (1)
1145 893 4600.
7013RA067 TG
1
7013RA068 TG
1
2
: Slip the oil seal (2), open side
facing the crankcase, over the
installing sleeve.
– Remove the installing sleeve (1).
: Line up the press sleeve (1)
1120 893 2400 with the collar
(arrow) facing the engine.
: Press home the oil seal (2) with
press sleeve (1).
The seating face must be flat and
free from burrs.
– Reassemble all other parts in the
reverse sequence.
7013RA069 TG
1
2
