41MS 201, MS 201 C, MS 201 T, MS 201 TC

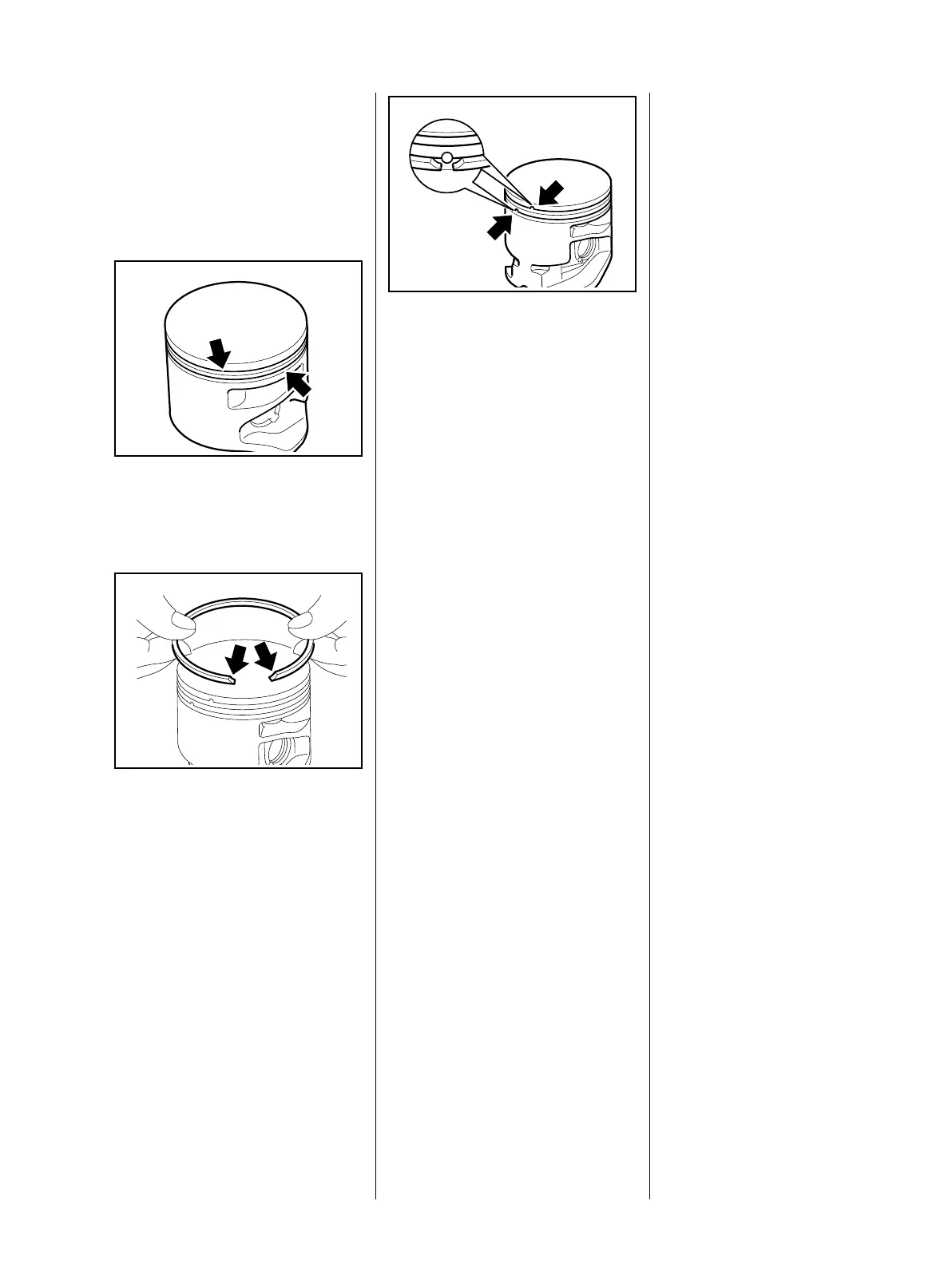

6.7 Piston Rings
– Remove the piston, b 6.6
– Remove the piston rings from the
piston.
: Use a piece of old piston ring to
scrape the grooves (arrows)
clean.
: Install the new piston rings in the
grooves so that the radii face
upward (arrows).
7013RA509 TG7013RA510 TG
: Position the piston rings so that
the radii at the ring gap meet at
the fixing pin in the piston groove
(arrows).
: Check correct installed position
of the piston rings (arrows).
– Install the piston, b 6.6
– Reassemble all other parts in the
reverse sequence.
7013RA511 TG
