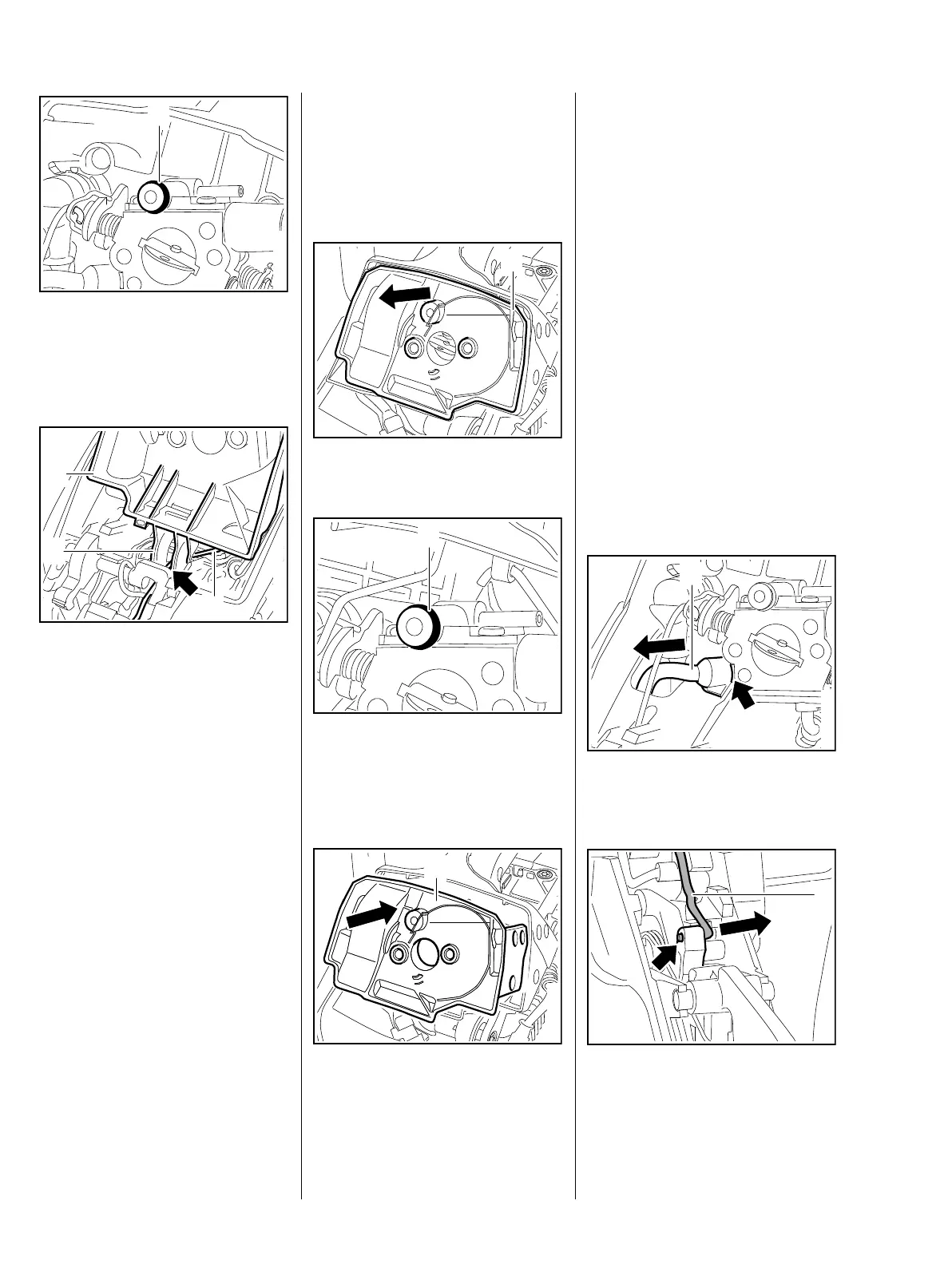

94 MS 201, MS 201 C, MS 201 T, MS 201 TC
: Inspect the O-ring (1) and
replace if necessary.
Installing
– Coat O-ring with STIHL press
fluid, b 14
: Place the filter base (1) in the
opening (arrow) so that the
throttle rod (3) is between the
fins (2).
– Install the baffle, b 12.2
– Reassemble all other parts in the
reverse sequence.
7013RA112 TG
1
7013RA113 TG
2
3
1
12.3.1 Filter Base (MS 201 T)
– Remove the air filter, b 12.1
– Remove the baffle, b 12.2
: Remove the filter base (1).
: Inspect the O-ring (1) and
replace if necessary.
Installing
– Coat O-ring with STIHL press
fluid, b 14
: Push the filter base (1) into
position.
7013RA114 TG
1
7013RA115 TG
1
7013RA116 TG
1
– Install the baffle, b 12.2
– Reassemble all other parts in the
reverse sequence.
12.4 Carburetor (MS 201)
– Open the fuel tank cap and drain
the fuel tank.
– Collect the fuel in a clean
container, b 1
Disconnect the fuel suction hose
only when the tank cap is open.
– Remove the filter base, b 12.3
– Remove the handle molding,
b 10.2
: Pull the fuel suction hose (1) off
the nipple (arrow).
: Disconnect the throttle rod (1)
from the trigger (arrow).
7013RA117 TG
1
7013RA233 TG
1
