80 MS 201, MS 201 C, MS 201 T, MS 201 TC

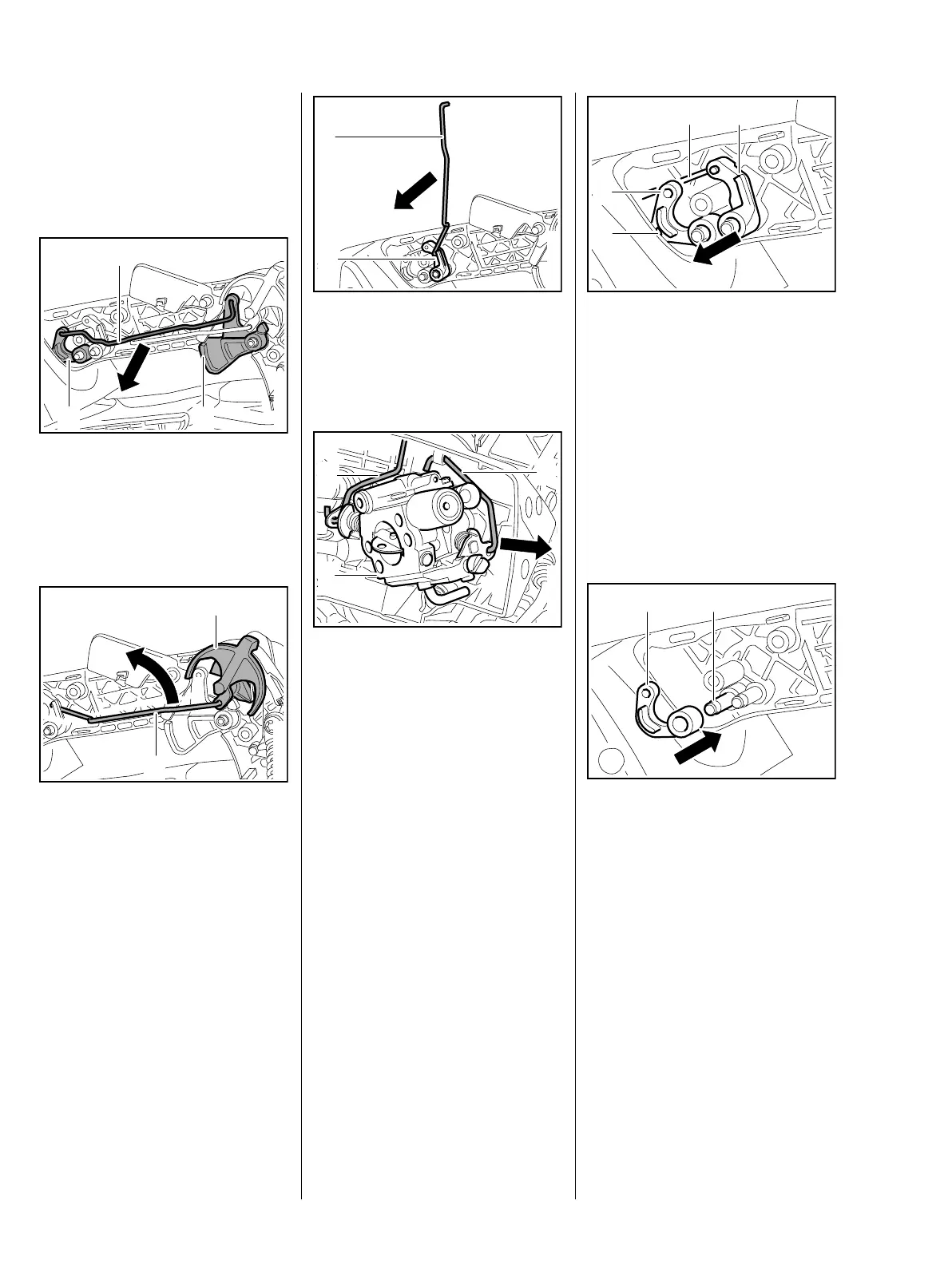

10.3.2 Choke and Throttle Rods
(MS 201 T)
– Remove the handle molding,
b 10.1.2
: Pull throttle rod (1) out of the
trigger (2) and lever (3).
The throttle trigger and lockout lever
may pop out.
: Pull the choke rod (1) out of the
switch shaft (2) and turn it in the
direction of the carburetor until it
is vertical.
The throttle trigger and lockout lever
may pop out.
1
7013RA242 TG
2
3
7013RA243 TG
2
1
: Remove the choke rod (1) from
the lever (2).
– Remove the filter base, b 12.3.1
: Pull out the carburetor (1) a little
and disconnect the throttle
rod (2).
: Turn the carburetor (1) in the
direction of the ignition side and
disconnect it from the choke
rod (3).
– Put the carburetor with the fuel
suction hose still attached to one
side – there is no need to remove
the fuel suction hose.
7013RA244 TG
2
1
7013RA245 TG
1
2
3
: Disconnect the throttle rod (3)
and
pull out the double lever (1).
: Pull out double lever (2) and
disconnect the choke rod (4) at
the same time.
– Check individual parts, replace if
necessary
Installing
: Position the double lever (1) so
that its outer curvature is facing
the carburetor.
: Push the double lever (1) onto
the pin (2) as far as stop.
7013RA246 TG
1
3
2
4
7013RA247 TG
1 2
