60 MS 201, MS 201 C, MS 201 T, MS 201 TC

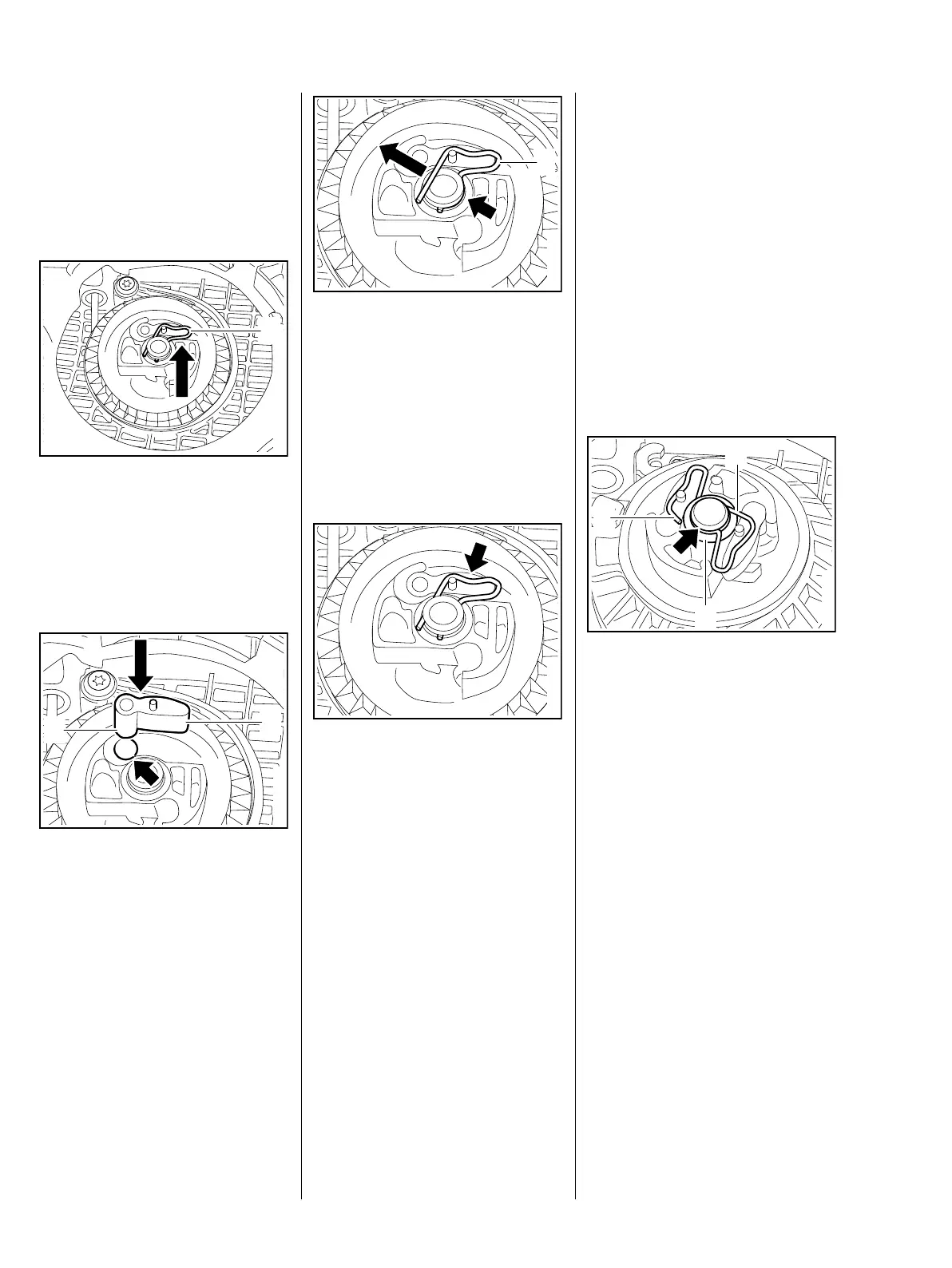

8.3 Pawls
– Remove the fan housing, b 8.2
– Relieve tension of rewind spring,
b 8.4
: Carefully ease the spring clip (1)
off the starter post.
– Pull the pawl out of the rotor.
Installing
: Lubricate seat (short arrow) with
STIHL multipurpose grease,
b 14
: Push the bearing pin (2) of
pawl (1) into its seat (arrow).
7013RA154 TG
1
7013RA155 TG
1
2
: Position the spring clip (1) so that
its loop engages the peg on the
pawl. The rounded part of the
spring clip (short arrow) must
engage the starter post’s groove.
: Push the straight part of the
spring clip over the starter post
until it snaps into the groove.
The spring clip's guide loop must be
in line with the pawl (arrow).
Check operation
– Pull the starter rope, the rotor
turns and the peg on the pawl
moves in the direction of the
spring loop – the pawl moves
outwards.
– Reassemble all other parts in the
reverse sequence.
7013RA156 TG
1
7013RA157 TG
Models with ErgoStart
Two pawls are installed in models
with ErgoStart. The removal
procedure is the same as for the
standard version.
– Lubricate seats of new pawls with
STIHL multipurpose grease,
b 14
– Lubricate pegs of new pawls with
STIHL multipurpose grease,
b 14
Installing
Make sure the washer (1) is in
place.
: Position the spring clip (2) so that
its loops engage the pegs on the
pawls. The rounded part of the
spring clip (arrow) must engage
the starter post’s groove.
: Push the straight part (3) of the
spring clip over the starter post
until it snaps into the groove.
– Reassemble all other parts in the
reverse sequence.
7013RA158 TG
2
3
1
