76 MS 201, MS 201 C, MS 201 T, MS 201 TC

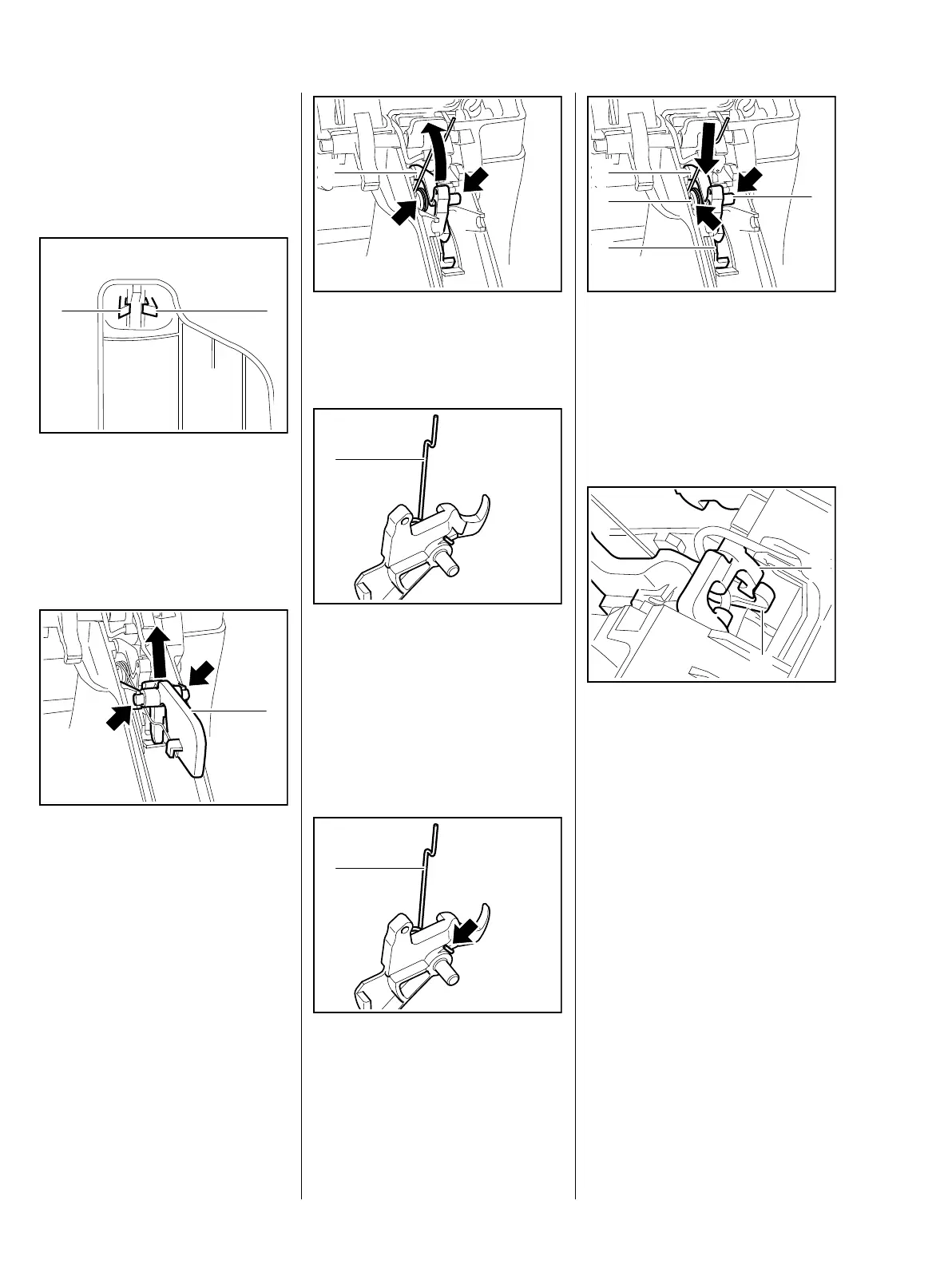

10.2 Throttle Trigger /
Lockout Lever (MS 201)
– Remove the throttle rod,
b 10.3.1
: To remove the handle molding,
press the tabs (1) on the
underside apart and push them
through the rear handle.
– Remove the handle molding.
: Pull the lockout lever (1) out of its
mounts (arrows).
7013RA214 TG
1
1
7013RA215 TG
1
: Rotate throttle trigger (1) in
direction of cylinder and pull it out
of the mounts (arrows).
: Disconnect and remove the
torsion spring (1) from the throttle
trigger.
– Check individual parts, replace if
necessary
Installing
: Fit and connect torsion spring (1)
– note installed position (arrow).
7013RA216 TG
1
7013RA217 TG
1
7013RA070 TG
1
: Position the throttle trigger (1)
with the hook (2) facing the
switch shaft.
: Push pivot pins (3) of throttle
trigger (1) into their mounts
(arrows).
Hook (1) must engage lever (2) on
switch shaft.
– Remove the throttle rod,
b 10.3.1
7013RA219 TG
2
1
3
3
2
7013RA220 TG
1
