51MS 201, MS 201 C, MS 201 T, MS 201 TC

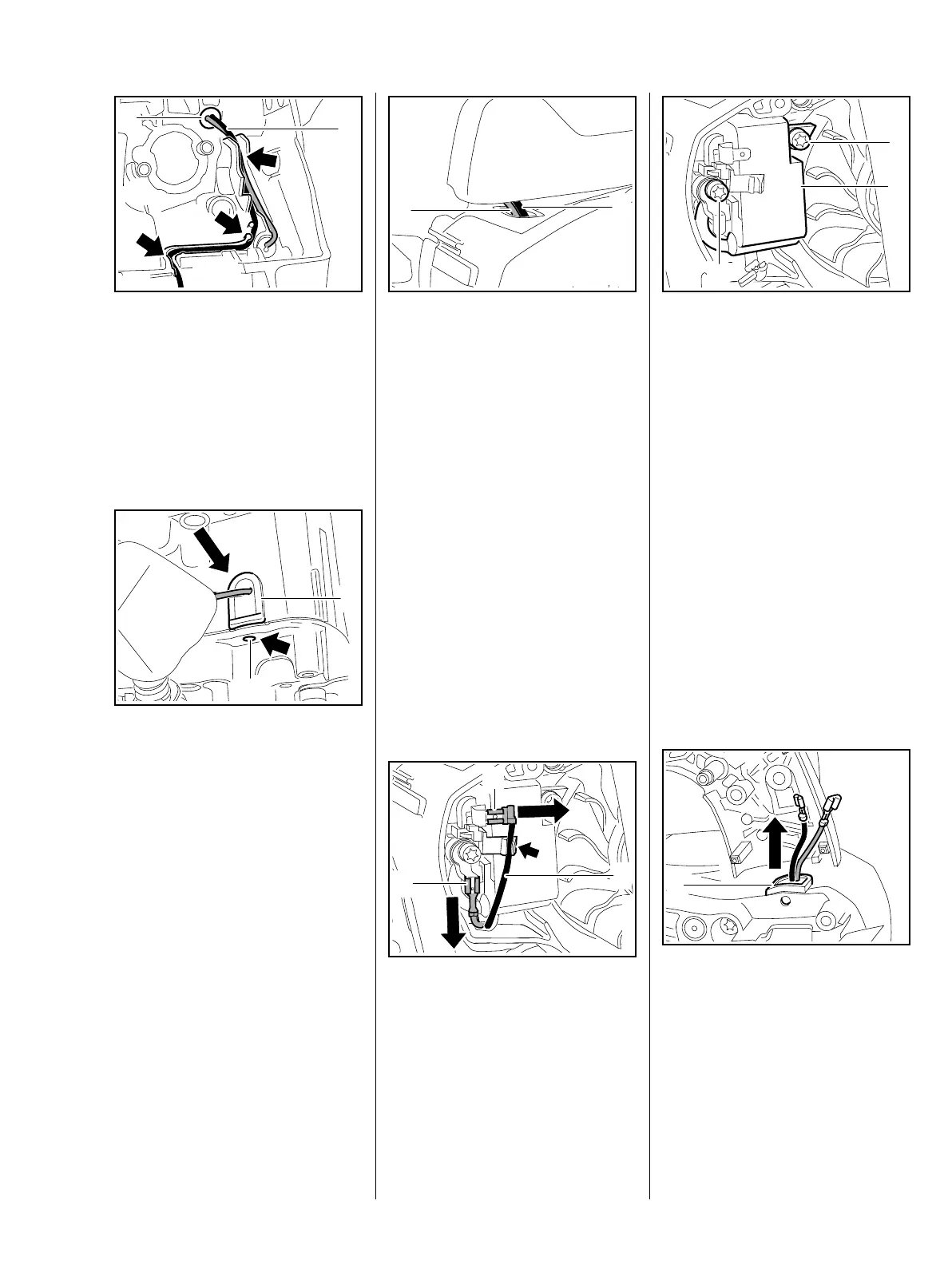

: Starting at the upper
grommet (2), press the short
circuit wire (1) into the guides
(arrows).
– Fit the contact spring, b 7.6.5
– Fit the handle housing, b 10.4
– Coat grommet with STIHL press
fluid, b 14
: Push the grommet (1) into the
opening so that the peg (2)
engages the bore (arrow) – the
grommet must be properly
seated in the opening.
– Install the ignition module, b 7.2
2
7013RA429 TG
1
2
7013RA291 TG
1
There must be no loops in the
ground wire (1) and short circuit
wire (2) between the crankcase and
handle housing and they must not
make contact with housing
components – risk of chafing.
– Reassemble all other parts in the
reverse sequence.
– Check operation of switch shaft,
choke and throttle rods as well as
throttle trigger and lockout lever.
7.6.3 Removing and Installing
(MS 201 T)
– Pull the boot off the spark plug.
– Remove the fan housing, b 8.2
: Pull the short circuit wire (1) out
of the guide (arrow).
: Disconnect terminals (2) and (3).
2
7013RA430 TG
1
7013RA362 TG
1
2
3
: Take out the screws (1) with
washers.
: Put the ignition module (2) to one
side.
– Remove the choke and throttle
rods, b 10.3.2
– Remove the lockout lever and
throttle trigger, b 10.3
– Remove the switch shaft,
b 10.1.2
– Remove AV spring from the oil
tank, b 9.2
– Remove the contact springs,
b 7.6.6
: Pry out the grommet (1).
7013RA356 TG
1
1
2
7013RA431 TG
1
