82 MS 201, MS 201 C, MS 201 T, MS 201 TC

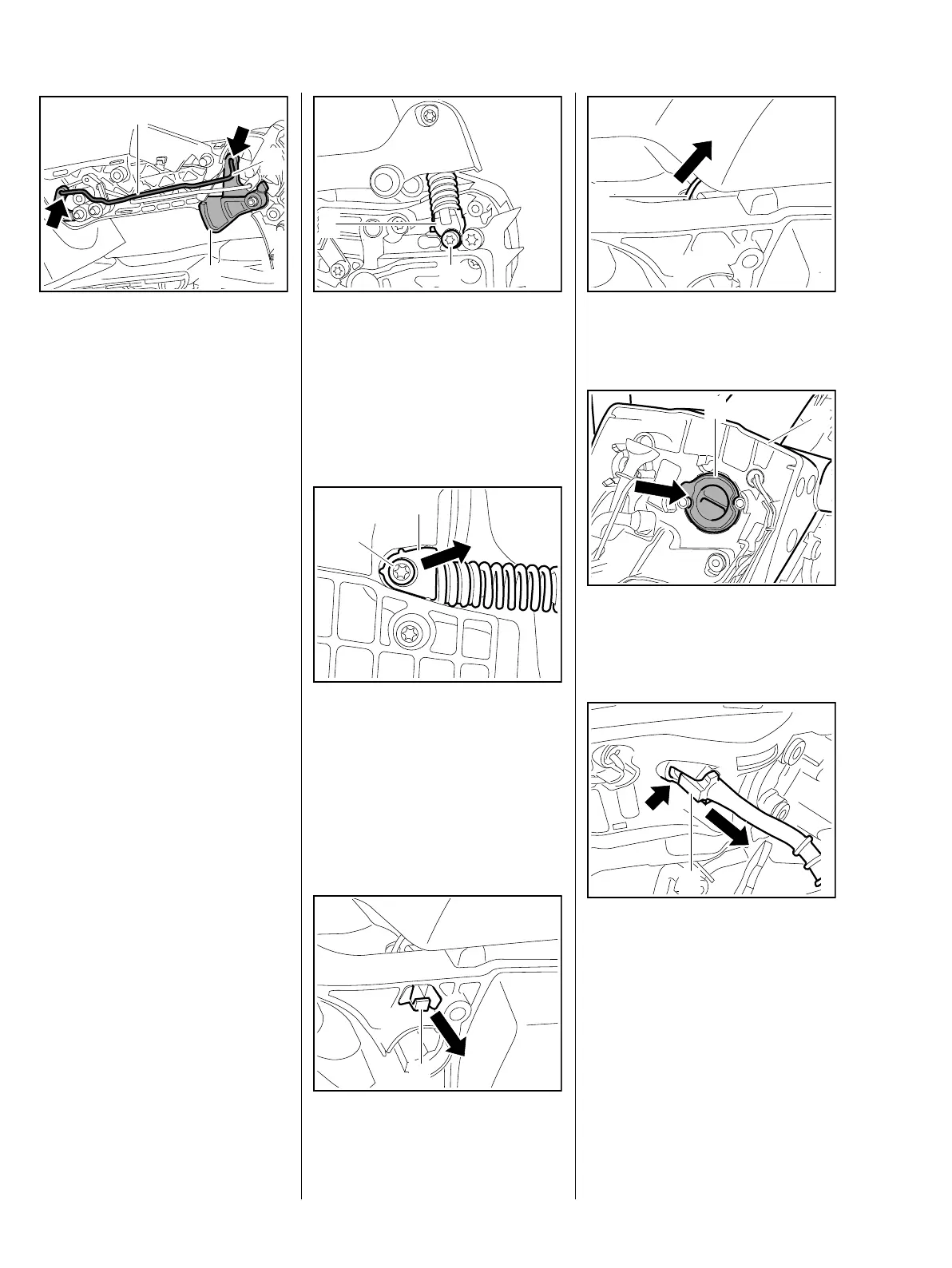

: Line up the throttle rod (1)
– the bend (2) must be next to the
throttle trigger (3).
: Carefully push the throttle rod (1)
into the double lever and throttle
trigger (arrows).
The double throttle lever may fall
out or the lockout lever and throttle
trigger may pop out.
– Fit the handle molding and check
operation, b 10.1.2
10.4 Handle Housing (MS 201)
– Remove the ignition module and
put it to one side, b 7.2
– Remove cover from oil pump and
pry out the bumper strip, b 9.2
– Remove the carburetor, b 12.4
– Remove the tank vent, b 12.9
– Remove annular buffer from the
fuel tank, b 9.1
1
7013RA250 TG
3
2
: Take out the screw (1).
– Screw (1) is secured with
Loctite. Preheat with a hot air
blower if necessary.
: Pull the bearing plug (2) out of its
seat.
: Remove the screw (1) from the
underside of the machine.
– Screw (1) is secured with
Loctite. Preheat with a hot air
blower if necessary.
: Pull the bearing plug (2) out of its
seat.
: Pull out the clamping block (1).
7013RA272 TG
2
1
2
7013RA077 TG
1
7013RA273 TG
1
: Push out the retainer (1) in the
direction of the manifold.
: Lift the handle housing (1) a little
and push out the manifold (2) in
direction of cylinder.
: Pull the impulse tube (1) out of
its seat (arrow) in the handle
housing.
7013RA274 TG
1
2
7013RA275 TG
1
7013RA276 TG
1
