18 MS 201, MS 201 C, MS 201 T, MS 201 TC

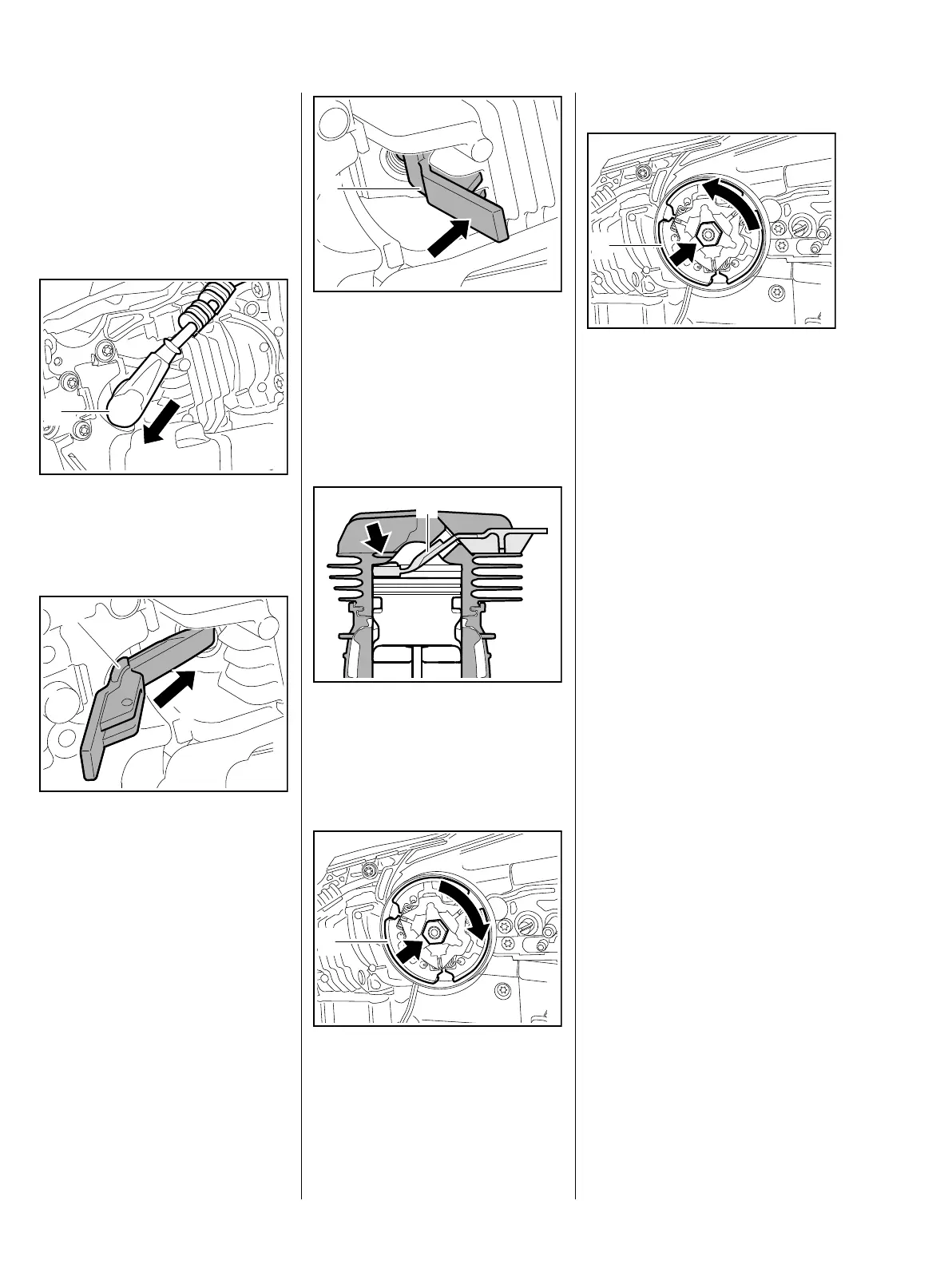

4. Clutch
4.1 Clutch
– Troubleshooting, b 3.1
– Disengage the chain brake and
remove the chain sprocket cover,
bar and chain.
: Pull boot (1) off the spark plug.
– Unscrew the spark plug.
: Push the locking strip (1)
1145 893 5900 into the cylinder
as far as stop.
7013RA001 TG
1
7013RA521 TG
1
: Secure the locking strip (1)
1145 893 5900 to cylinder fin
(arrow).
– Turn the clutch clockwise until the
piston butts against the locking
strip.
The locking strip (1) 1145 893 5900
must butt against the cylinder wall
(arrow) and the flat side of its metal
top must rest on the piston crown
– as shown in the illustration.
: Apply wrench to hexagon (arrow)
and unscrew the clutch (1) – left-
hand thread.
7013RA522 TG
1
7013RA003 TG
1
7013RA004 TG
1
Installing
: Position the clutch (1) on the
crankshaft stub so that the raised
hexagon (arrow) faces outwards.
: Fit the clutch (1) and tighten it
down firmly – left-hand thread.
– Remove the locking strip from the
cylinder.
– Reassemble all other parts in the
reverse sequence.
7013RA005 TG
1
