Suzuki Samurai 1986 User Manual

Timing Belt Inside Cover, Belt Pulleys,
Tensioner, Timing Belt and Outside Cover
1) install timing belt inside cover to cylinder
head.
2) Install crankshaft timing belt guide, key and
pulley.
Refer to Fig. 3-6-42 for proper installation
of these parts.
Install timing belt guide in such a way that
its concave side faces oil pump.
Tighten crankshaft timing belt pulley bolt to
specified torque by using flywheel holder
A (Special tool).
1.
2.
3.
Timing belt guide
Key
Crank timing belt pulley
4. Pulley bolt
(A) Flywheel holder
(09924-I 7810)

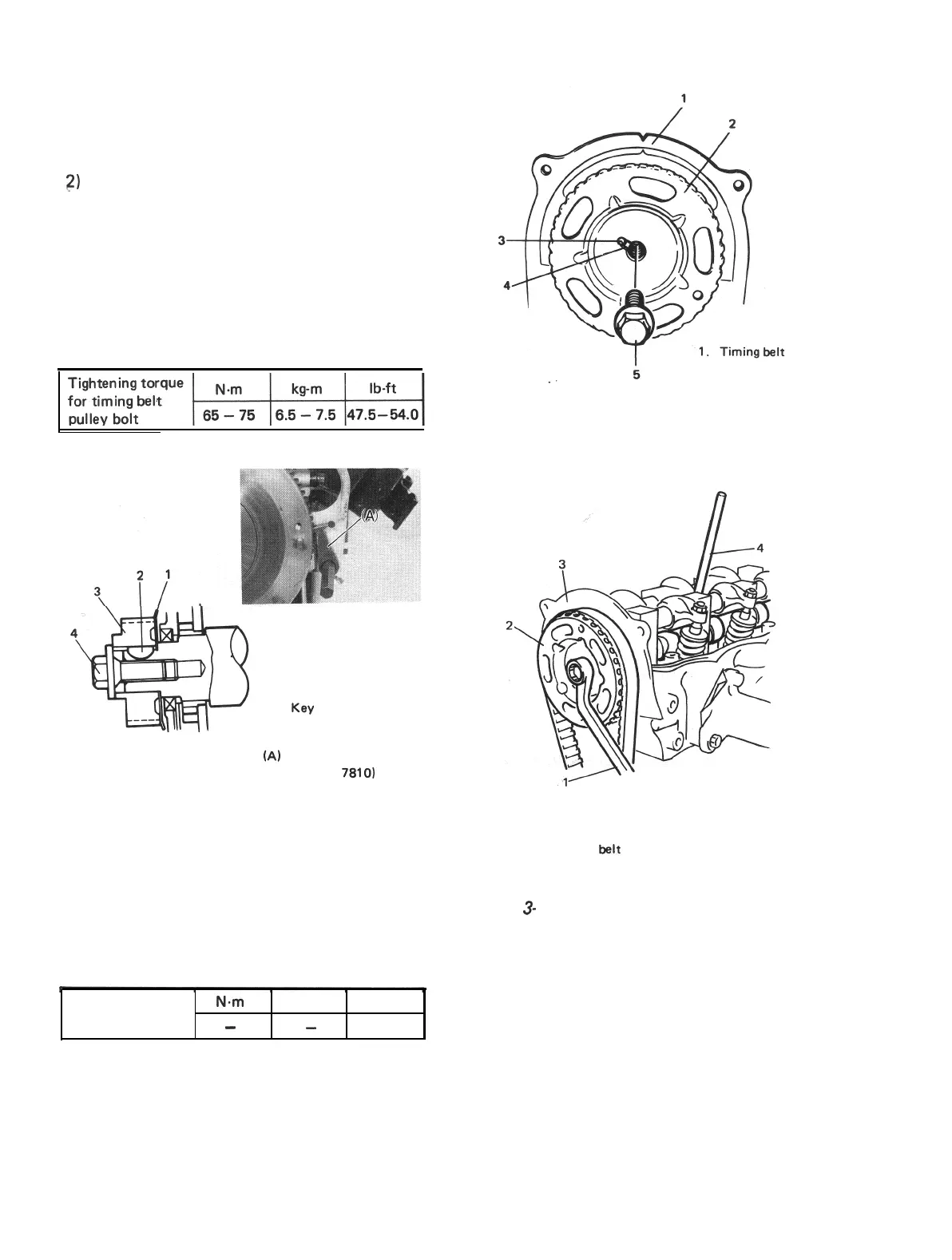

Fig. 3-6-42 Installing guide, key and pulley
3) Install camshaft timing belt pulley.
Fit pulley pin on camshaft into slot in
camshaft pulley. Tighten pulley bolt to
specified torque with general rod applied as
shown in Fig. 3-6-44.
inside cover
2. Camshaft pulley:
3. Pulley pin
4. Slot
5. Pulley bolt
Fig. 3-6-43 Pulley pin, slot and pulley bolt
1. Wrench
2. Camshaft timing belt pulley
3. Timing belt inside cover
4. General rod
Fig. 3- 6-44
Tightening torque N-m
kg-m
lb-ft
for pulley bolt
56 - 64 5.6 - 6.4 41.0-46.0
3-48
