Center and Rear Cases

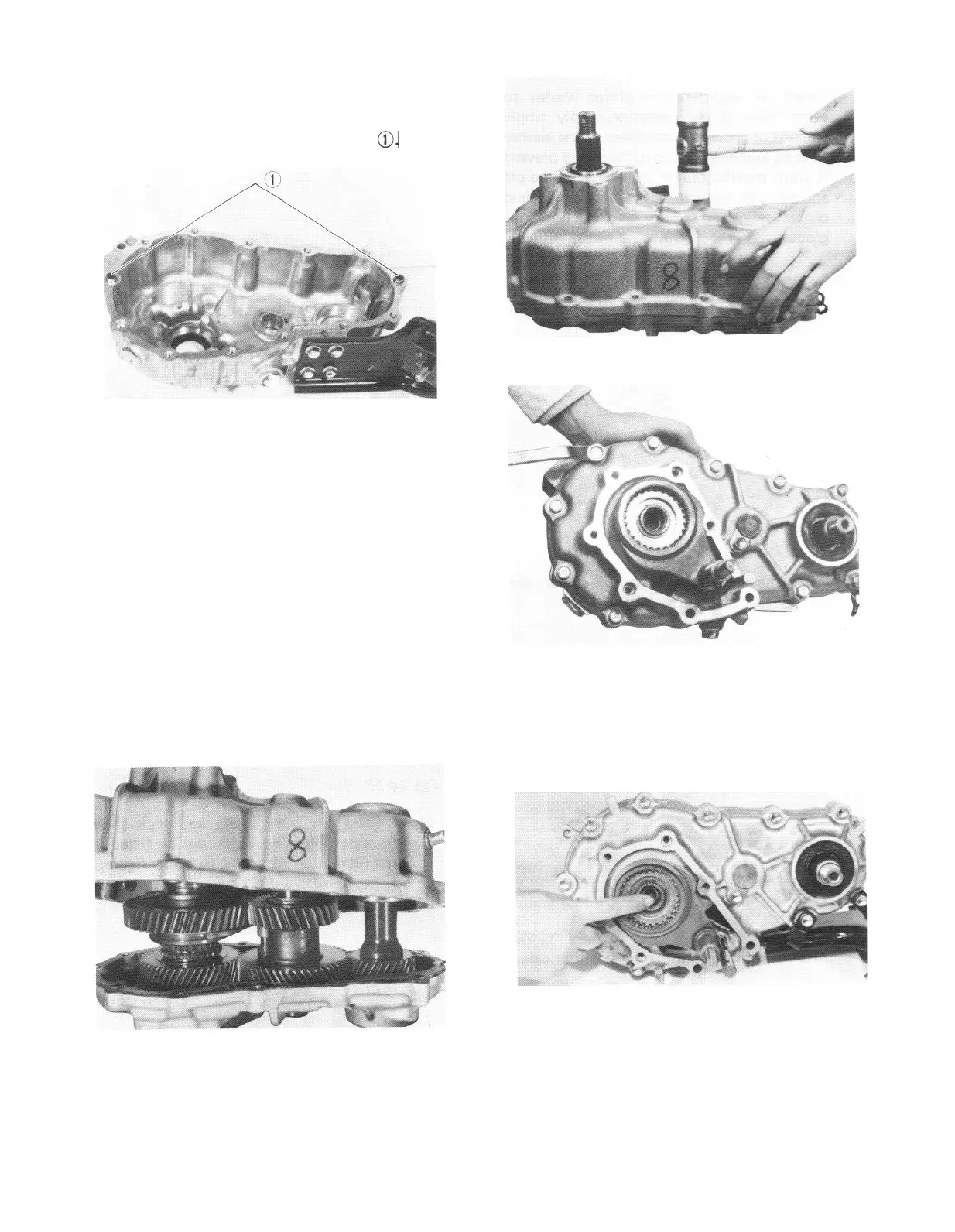

1) Check center case (or rear case) to ensure
that it is provided with 2 dowel pins 0.
Fig. 14-59
2) Put gasket on center case. Bring rear case
and center case into match and apply
uniform force gradually all around rear case
with a plastic hammer. Tighten center case
securing bolts to specified torque.
NOTE:
l Matching must be made carefully so as not to
move countershaft thrust washers out of place.
l Be sure to install shims determined in previ-
ous item
“Shim Adjustment of Input and
Output Shafts”
between input shaft rear
bearing and rear case and between output
shaft rear bearing and rear case.
Fig. 14-61
Fig. 14-62
3) Apply grease to output front shaft rear
bearing.
Fig. 14-60
Fig. 14-63
14-20
