Output Rear Shaft

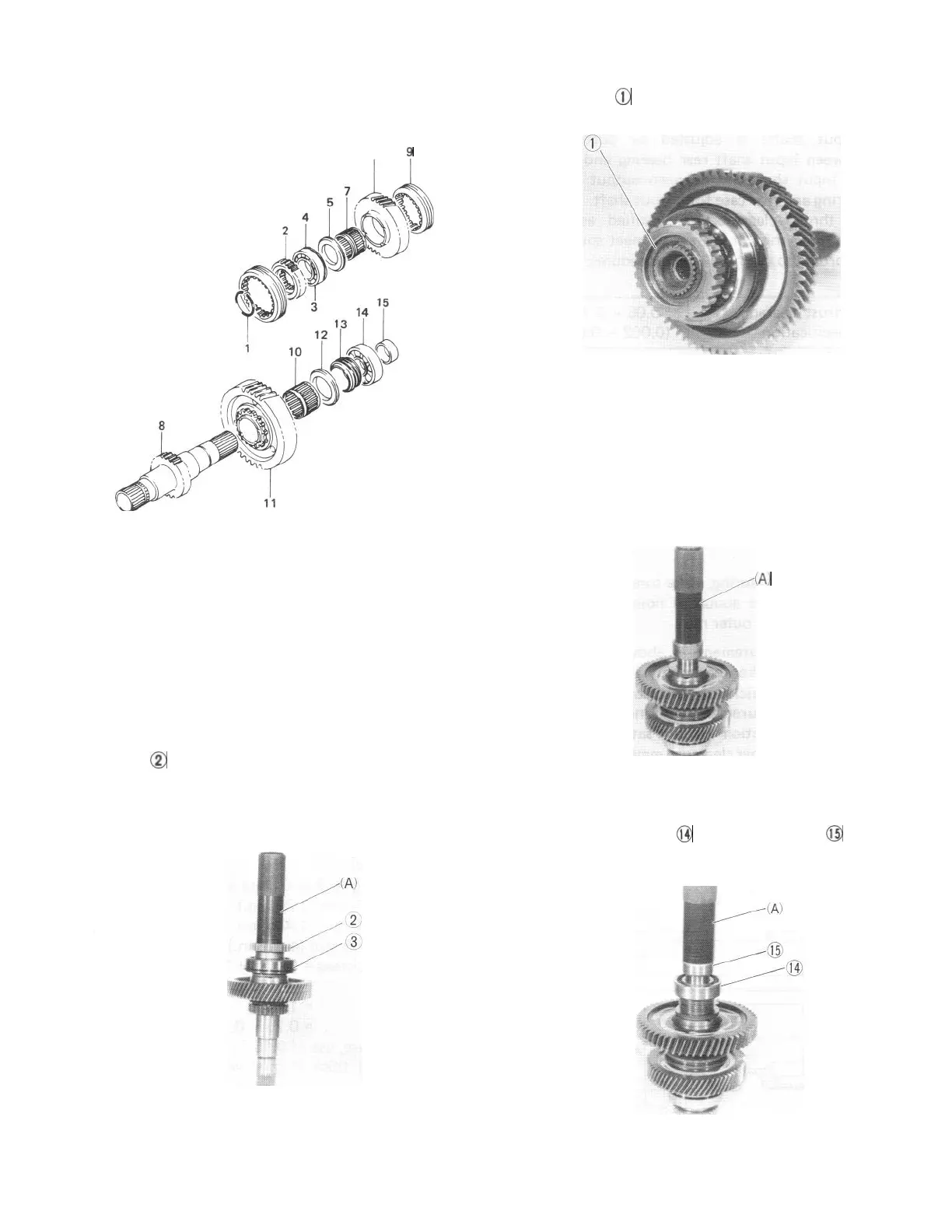

Install following parts onto shaft in such order
and directions as prescribed in the figure.
6 9
1. Circlip
2. Hub
3. Bearing
4. Bearing outer ring
5. Thrust washer
6. Output high gear
7. Bearing (long)
8. Output rear shaft
9. Sleeve
10. Bearing (short)
11. Outputlowgaar
12. Thrust washer
13. Speed meter drive gear
14. Bearing
15. Retainer
Fig. 14-44
1) After installing bearing (long), high gear and
thrust washer, press-fit bearing 1. and then
hub @ by using bearing installer (special
tool).
Bearing installer (A) : (0991384510)
Fig. 14-45
2) Fit circlip @ securely into groove in shaft.
Fig. 14-46
3) After installing sleeve, bearing (short), low
gear and thrust washer, press-fit speedometer
drive gear by using bearing installer (special
tool).
Bearing installer (A) : (09913-84510)
(A)
Fig. 14-47
4) Press-fit bearing @ and the retainer @ by
using bearing installer (special tool).
Bearing installer (A) : (0991384510)
Fig. 14-48
14-15
