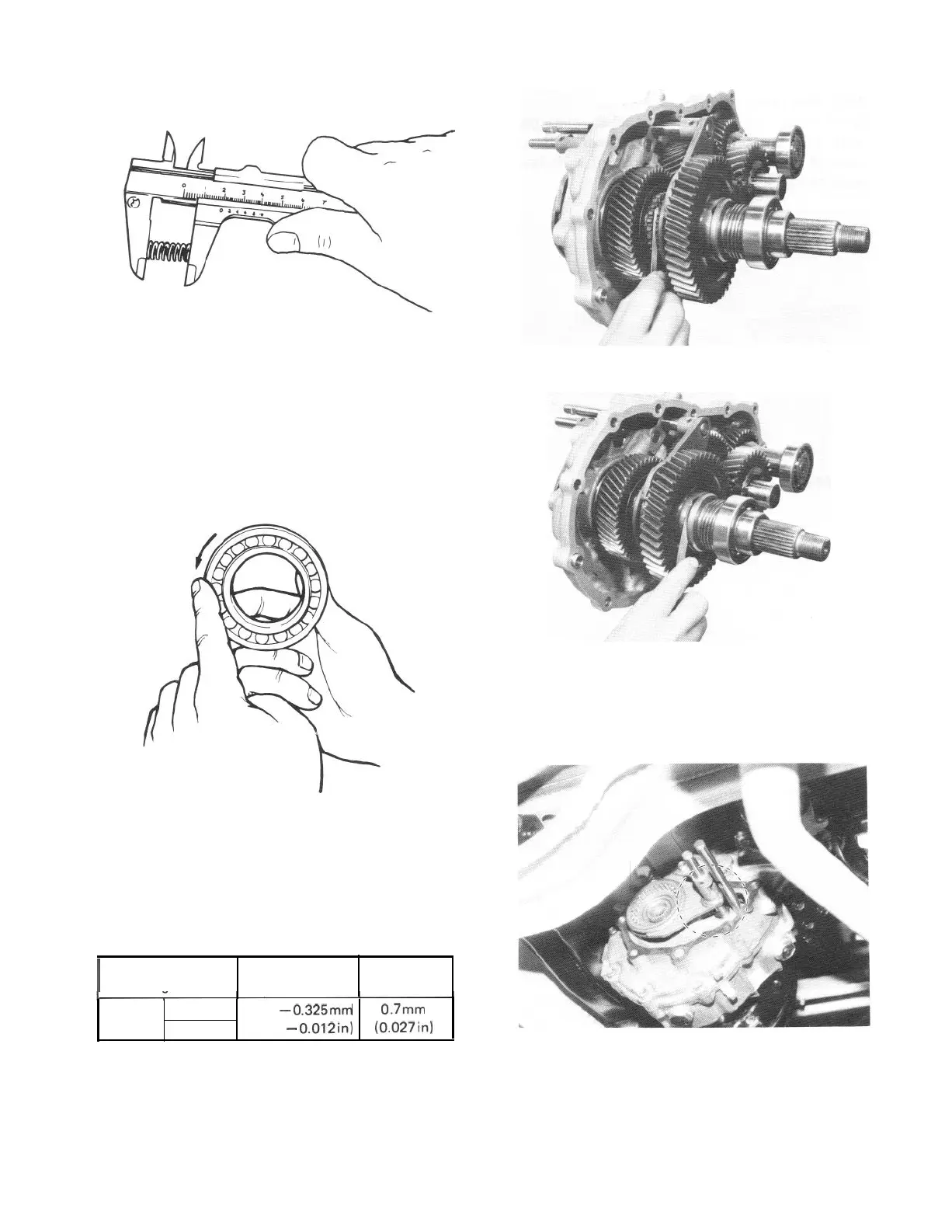

Fig. 14-37
Bearings
Check each bearing by spinning its outer race by
hand to “feel” smoothness of rotation. Replace
bearing if noted to exhibit sticking, resistance
or abnormal noise when spun or rotated by
hand.
Fig. 14-38
Side Clearance of Gears
With gear, bearing and thrust washer installed
on shaft, check for side clearances of gears.
If clearance exceeds service limit, replace thrust
washer.
I
Side clearance
of gear
Standard
Service limit
I
output
low gear
0.175 - 0.325mm
0.7mm
gears
high gear
(0.007 - 0.012in)
(0.027in)
Fig. 14-40 Output low gear
Gear Shift Shafts
Check each part as indicated in below figures for
uneven wear. Replace defective parts.
Fig. 14-41
14-13
Fig. 14-39 Output high gear
