21-9. 4 WHEEL DRIVE LAMP
21-10. SEAT BELT WARNING LAMP/
BUZZER

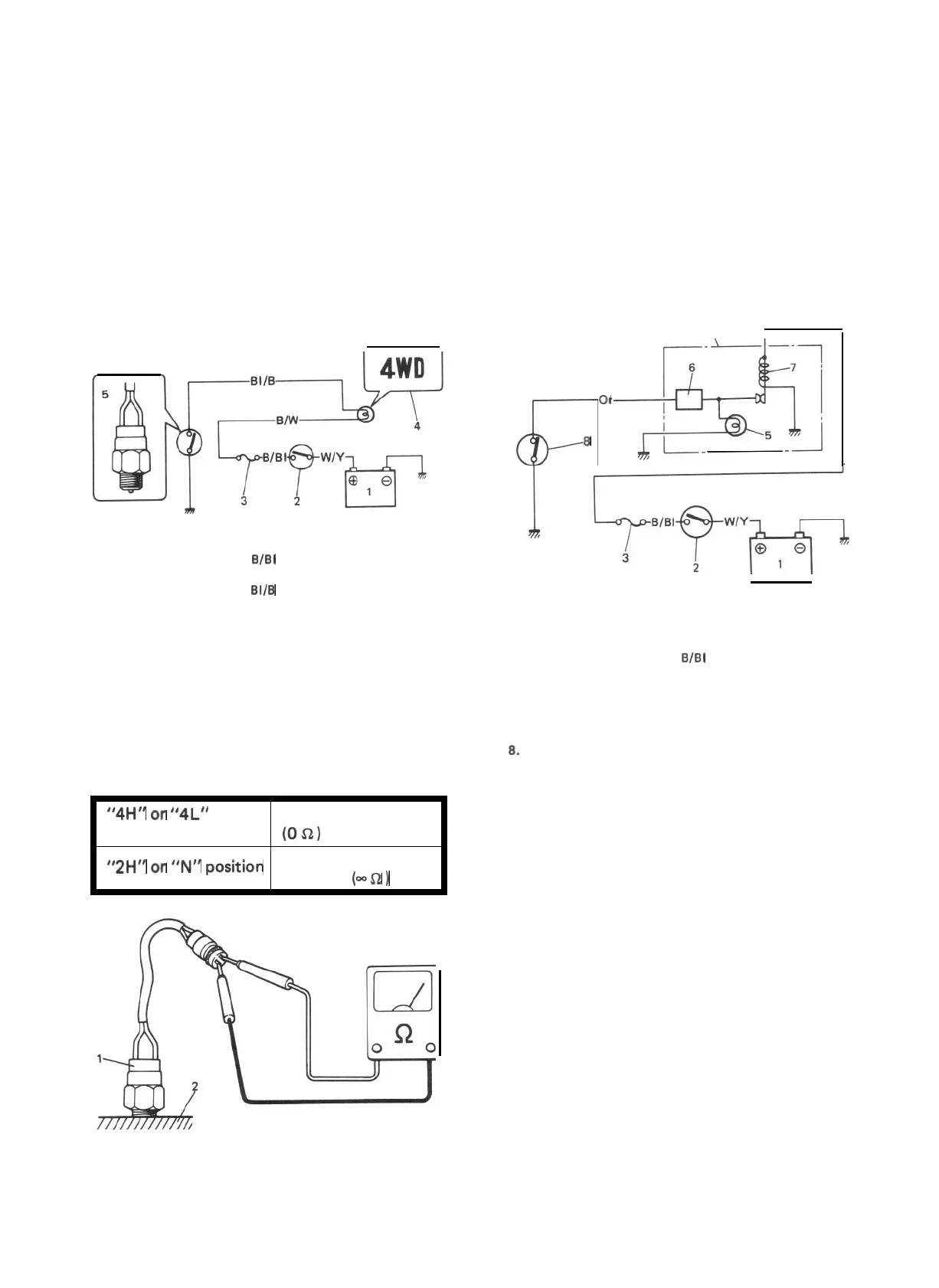

The 4 wheel drive lamp circuit consists of the 4
wheel drive indicator lamp switch installed to
the transfer and the lamp inside the combination
meter.
The 4WD switch so operates that it is switched
ON when transfer gear shift control lever is
shifted to “4H” or “4L” position.
The seat belt warning lamp/buzzer circuit is a
system to light and sound the lamp and buzzer
respectively for several seconds, urging the
driver to wear his seat belt. After several seconds
passed, the lamp goes OFF and the buzzer stops
sounding whether the seat belt is worn or not.
1. Battery
B/B1 : Black/Blue
2. Main switch
B/W : Black/White
3. Fuse
BI/B : Blue/Black
4. 4WD lamp
W/Y : White/Yellow
5. 4WD switch
Fig. 21-26
INSPECTION
[4WD switch]
Use a ohmmeter to check the switch continuity.
I
“4H” or “4L”
Continuity obtained
oosition
(052)
I
I
#,2HM or ##N## position
N O continuity
obtained (- 52 1
I
CL-
01
8
4
\
I I
B/W
1. Battery
2. Main switch
3. Fuse
4. Combination mater
5. Warning lamp
6. Warning buzzer
7. Bi-metal
8. Warning switch
W/Y : White/Yellow
BIBI : Black/Blue
B/W : Black/White
Or : Orange
Fig. 21-28
INSPECTION
When the warning lamp/buzzer do not make
lighting/sounding, use the above Circuit Diagram
as reference to check the bulb, buzzer, wiring,
etc.
1. 4WD switch
2. Transfer
Fig. 21-27
