13-4. DISASSEMBLY

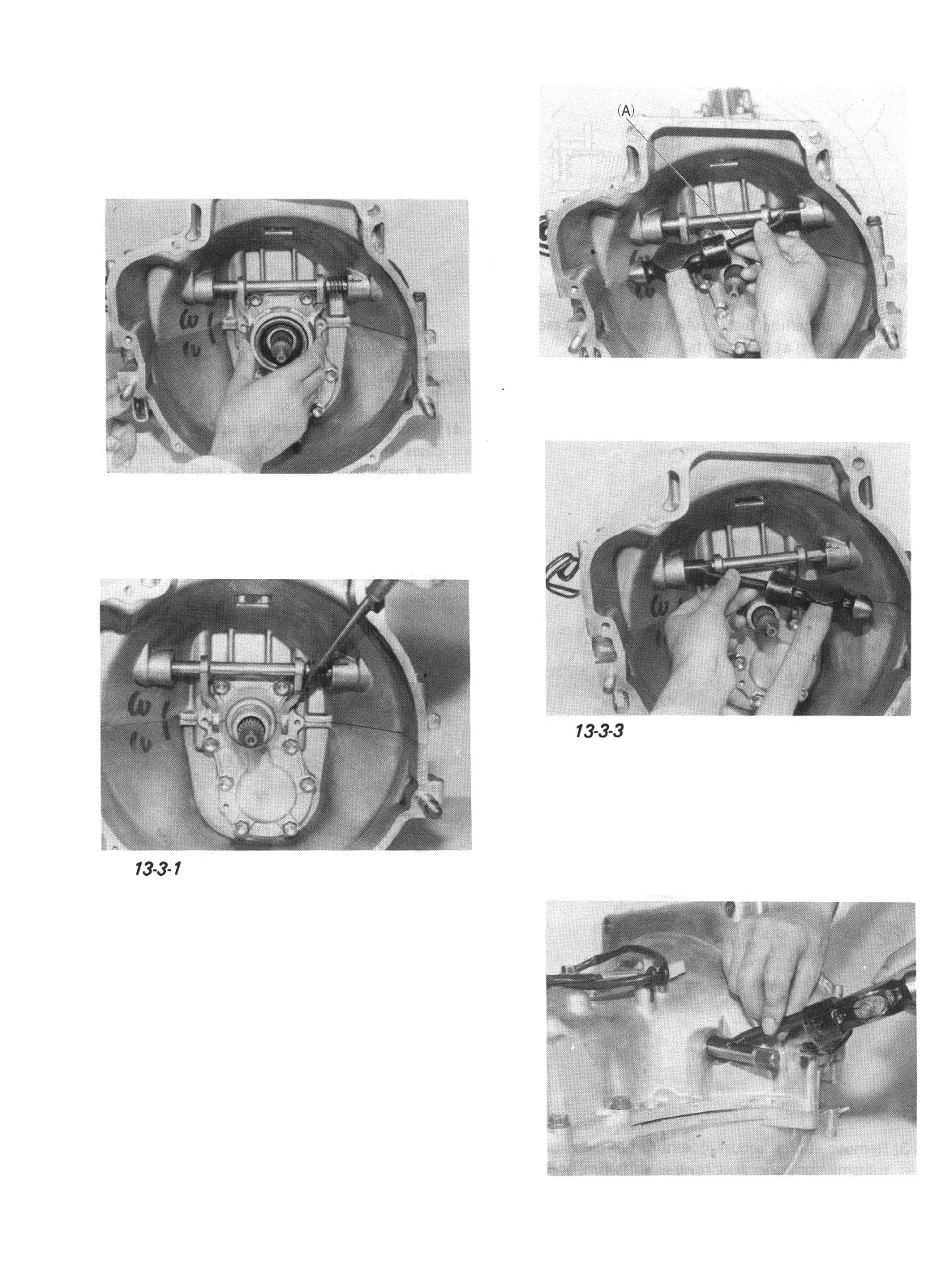

Replacing Clutch Release Shaft Bush
1) Remove clutch release bearing from input
shaft bearing retainer.
Fig. 13-3-Z
4) Take out the other bush, too.
Fig. 13-3
2) Remove a part of spring from clutch release
shaft lever.
Fig. 13-3-3
Fig. 13-3- 1
3) Remove clutch release shaft spring from
shaft. With special tool (A) applied in such a
position as shown in Fig. 13-3-2, tap the end
of special tool to take out bush and cap.
Clutch release bush remover (A) (09925
48210)
5) Precautions on bush reinstallation:
l Make sure to apply grease to inside of bushes.
l Drive in bushes to the same level as inside
surface of transmission case. Install cap and
oil seal securely after greasing oil seal lip.
Fig. 13-3-4
13-5
