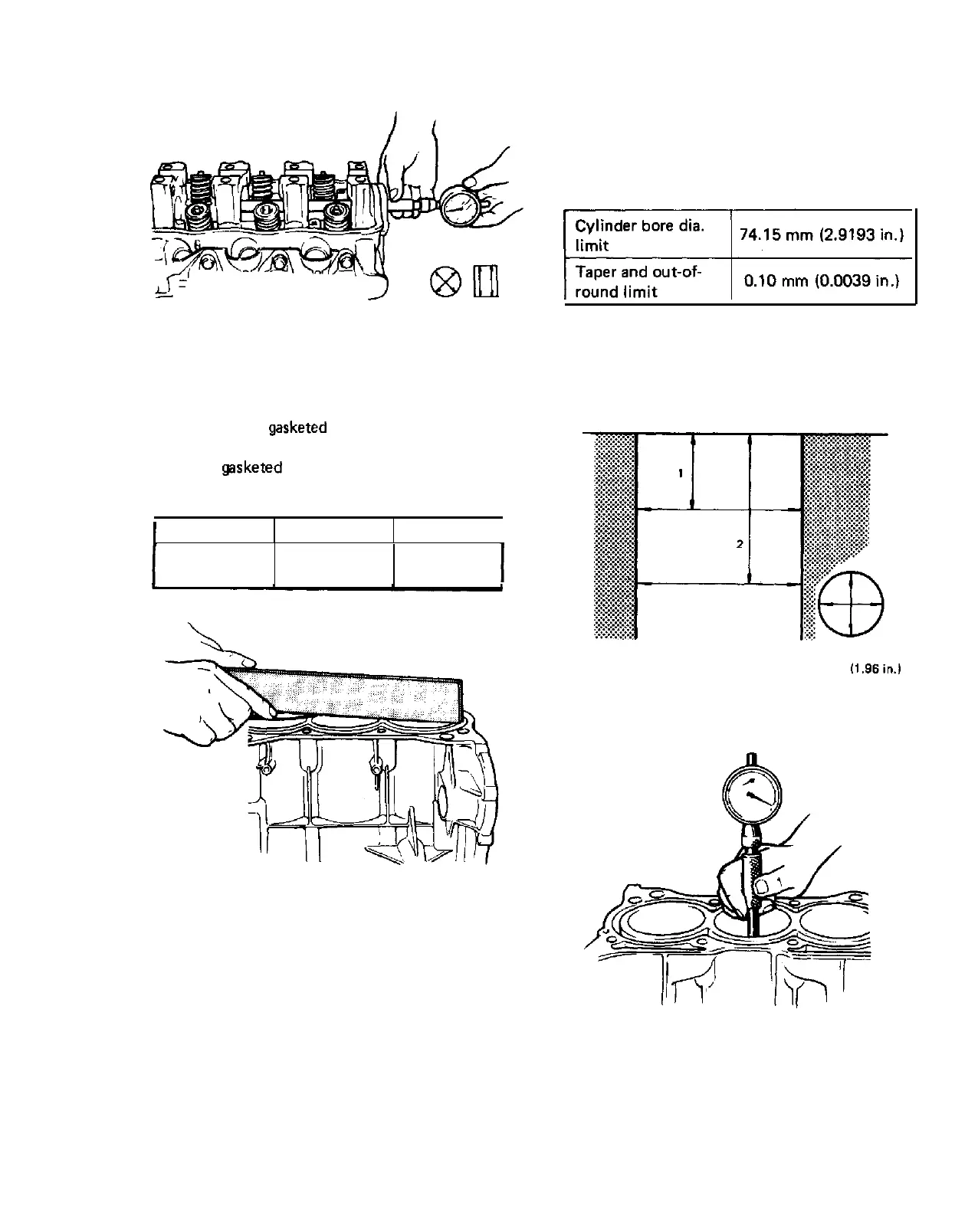

Fig. 3-5-26
Cylinder Block
l Distortion of gasketed surface:
Using a straightedge and a thickness gauge,
check gasketed surface for distortion and, if
result exceeds specified limit, correct it.
Standard Limit
I
I
Flatness
0.03 mm 0.06 mm
(0.0012 in.)
(0.0024 in.)
I
Fig. 3-5-27
l Cylinder bore:
1) Inspect cylinder walls for scratches, roughness,
or ridges which indicate excessive wear. If
cylinder bore is very rough or deeply scratch-
ed, or ridged, rebore cylinder and use oversize
piston.
2) Using a cylinder gauge, measure cylinder bore
in thrust and axial directions at two positions
as shown in Fig. 3-5-28.
If any of the following conditions exists,
rebore cylinder.
l Cylinder bore dia. exceeds its limit.
l Difference of measurements at two positions
exceeds taper limit.
l Difference between thrust and axial measure-
ments exceeds out-of-round limit.
NOTE:
If any one of four cylinders has to be rebored,
rebore all four to the same next oversize. This is
necessary for the sake of uniformity and balance.
1. 50mm (1.96in.j
2. 95 mm (3.74 in.)
Fig. 3-5-28 Positions to be measured
Fig. 3-5-29 Measuring cylinder bore with
cylinder gauge
