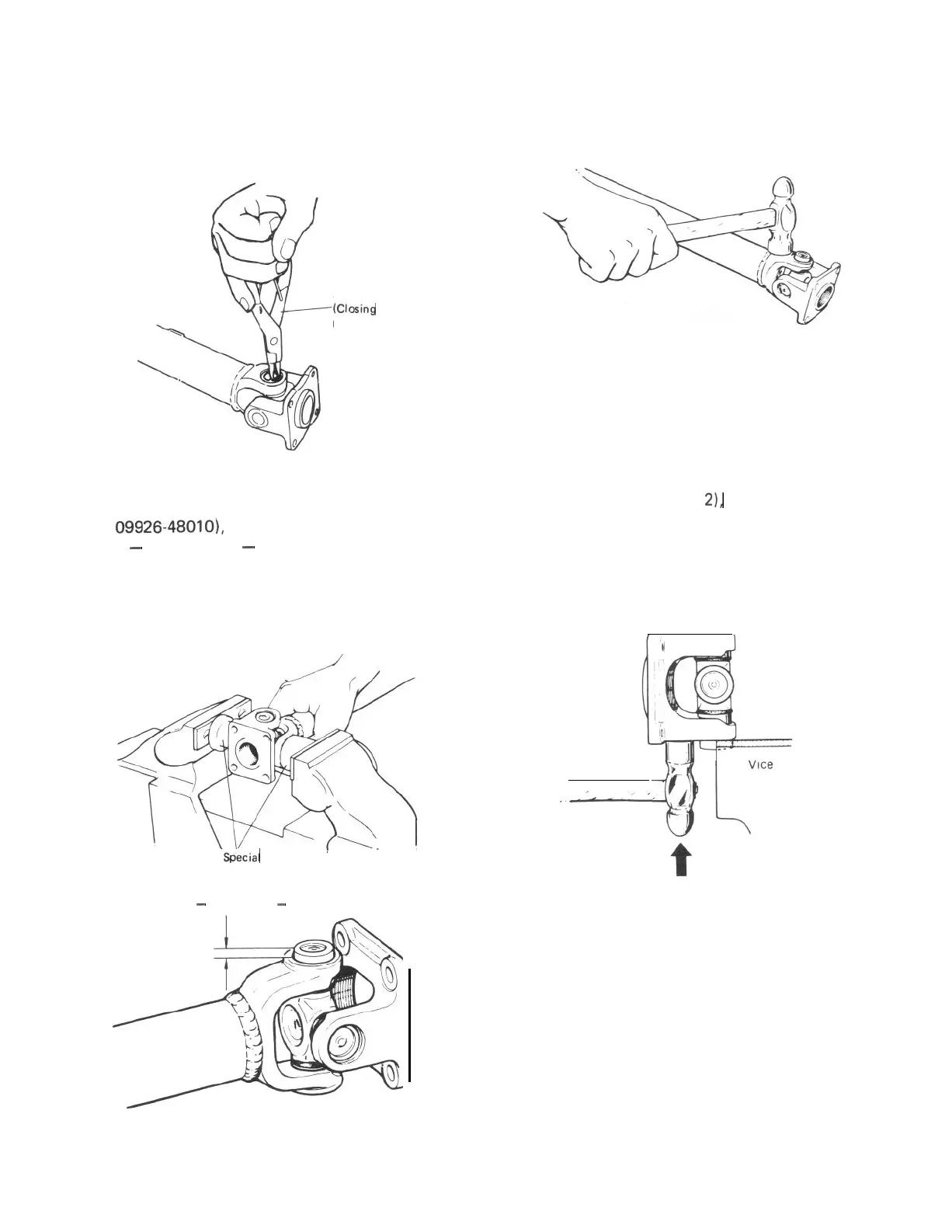

15-6. DISASSEMBLY
l Disassembling on propeller shaft yoke side.
1) Using snap ring pliers (Special tool), remove
2 circlips.
Special tool
k%sing type)
09900-06 106
Fig. 15-11
Removing circlip
2) Using universal joint assembler (Special tool
09926-48010), push spider bearing race out
3 - 4 mm (0.12 - 0.16 in.) from shaft yoke
race.
NOTE:
Before pushing it out, apply penetrate lubricant
between bearing race and yoke race.
‘Spkial tool
3 - 4 mm (0.12 - 0.16 in.)
Fig. 15-14
3) Tapping yoke with a hammer, completely
remove bearing race.
4) Take out bearing race on the other side in the
same way as in 2) and 3).
l Disassembling on flange yoke side
Push out bearing race on flange yoke side
as described in 1) and 2), and then, holding
bearing race in a vice, tap flange yoke and
take out race, (Refer to the below figure.)
Remove bearing race on the opposite side in
te same way.
._1
Hammer
NOTE:
l Take care not to lose rollers in spider bearing
race when removing it.
l Fit removed bearings temporarily in spider
so that they can be reinstalled in their original
positions.
Fig. 15-12
15-6
Fig. 15-13
