9-3. LUBRICATION
9-4. REMOVAL AND INSTALLATION
The starting motor does not require lubrication
except during overhaul.
When the motor is disassembled for any reason,
lubricate as follows:
Grease
Bearing grease
SUZUKI SUPER GREASE A
99ooo-25010
Use following procedure to remove starter:
1) Disconnect negative battery lead at battery.
2) Disconnect magnetic switch lead wire
(BLACK/YELLOW) and battery cable from
starting motor terminals.
3) Remove two starting motor mount bolts.
4) Remove starting motor.
5) To install, reverse the above procedure.

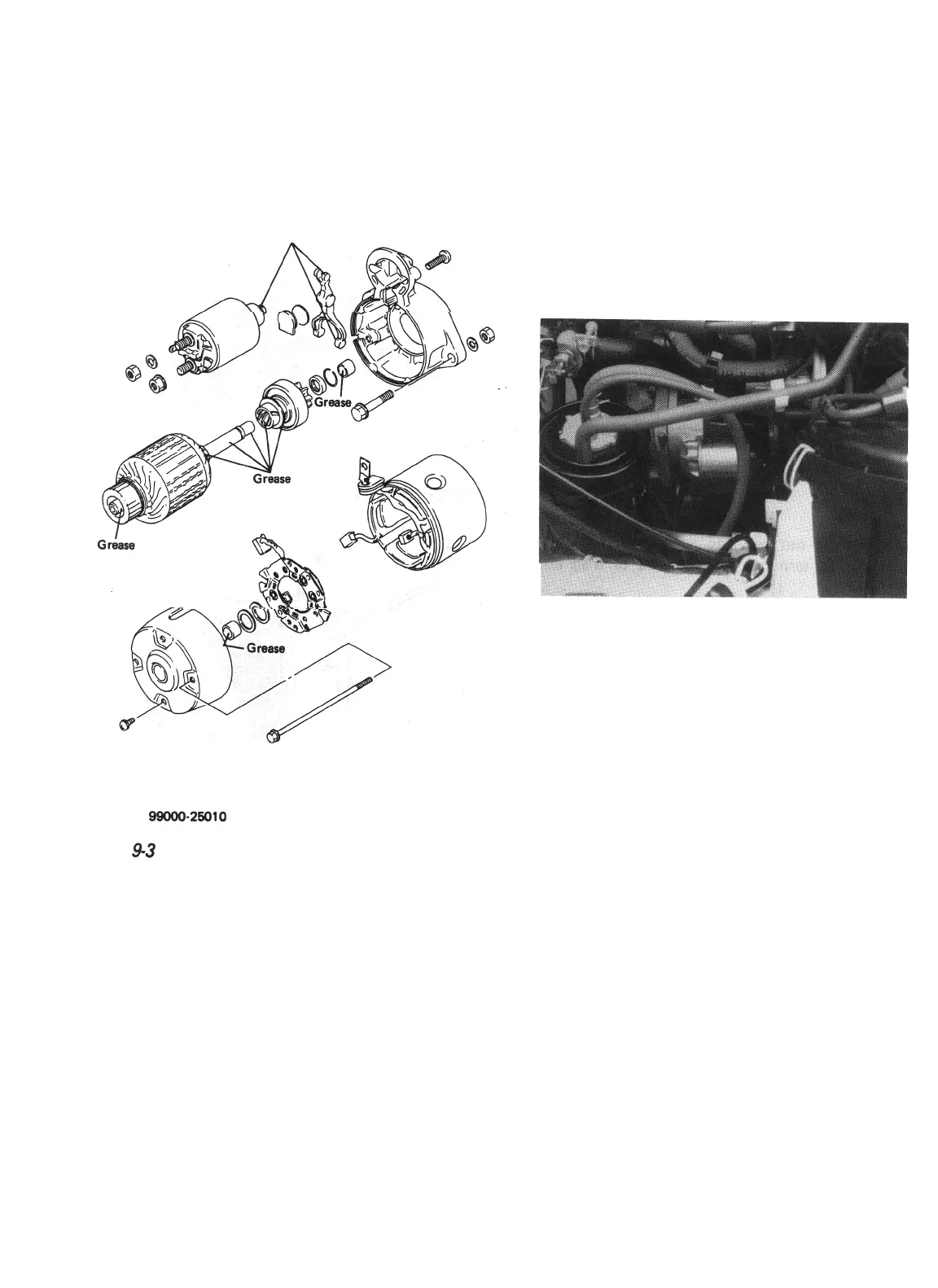

Fig. 54 Starting motor mounting
Fig.
9-3
Starting motor greasing poin t
9-5
