Suzuki Samurai 1986 User Manual

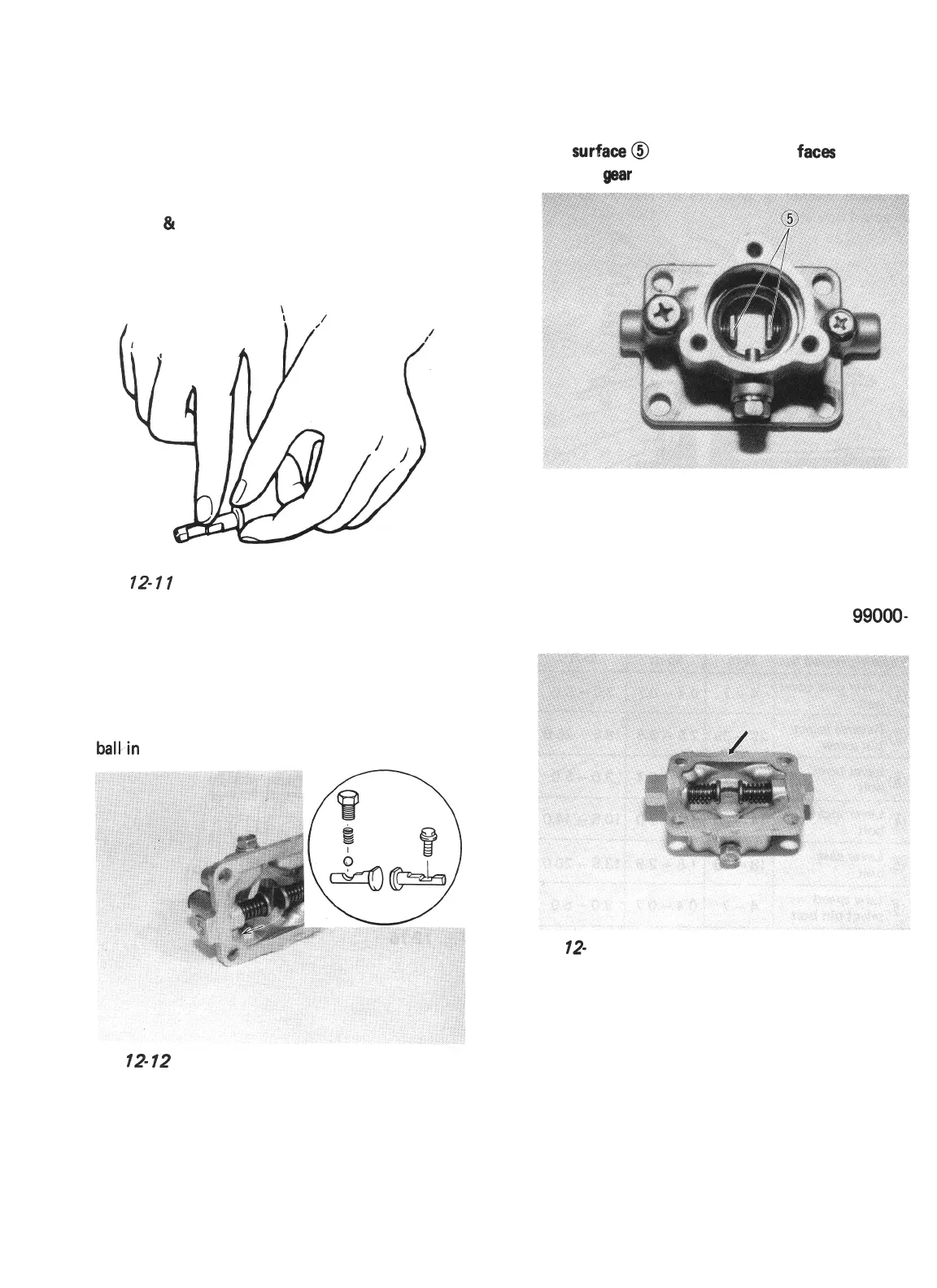

12-4. INSTALLATION
Gear shift lever is installed by reversing removal
procedure. Some important steps will be explain-
ed in detail.
NOTE:
After each guide pin is installed, make sure that
flat surfaca @I at the tip of pin faces upward
(toward gear shift lever).
Reverse & Low Speed Guide Pins
Be sure to apply grease to select guide pins
before installing them into gear shift lever case.
Fig. 12- 11
When fitting low speed select guide pin into
gear shift lever case, tighten locating bolt while
pushing pin so that bolt goes in the groove
provided in the pin. Then install reverse select
guide pin in case and securely fit the locating
balkin the groove provided in the pin.
Fig. 12-13
Gear Shift Lever Case
When installing lever case to transmission
extension case, clean joint faces, and then apply
sealant (SUZUKI BOND NO. 1215, 99009
31110) to joint faces.
Fig. 12- 14
Fig. 12- 12
12-5
